100kv Good Performance Gdyj-502 Insulating Oil Bdv Tester ASTM D877 Bdv Oil Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Output Voltage：AC 0V~100kv
- Rate of Voltage Rise：0.5kv,S, 2kv,S, 3kv,S,5kv,S±5%
- Max Test Times Setting：9
- Test Standards：IEC60156, Is6792, BS5874, ASTM D1816, ASTM D877
- Waiting Time Setting：0~999s
- Maximum Storage Capacity：100 Groups of Test Data
Base Info
- Model NO.：GDYJ-502
- Power Supply：AC220V±10%, 50Hz,60Hz
- Weight：55kg
- Transport Package：Plywood Cae
- Specification：50kg
- Trademark：GOLD
- Origin：Chongqing
- HS Code：9030849000
- Production Capacity：500 Pieces,Month
Description
620 mm*430mm*330mm
Weight
Functions:
Breakdown test of user-defined;
Proof test;
IEC60156/IS6792/BS5874 test;
ASTM D1816 standard test;
ASTM D877 standard test;
5 minutes standard test;
Manual test;
Calibration interface for customers;
Uploading data to PC and making word report automatically;
Result print;
Features:
LCD screen can display test procedure and test result;
All the human interaction operations complete by the rotating mouse;
It is very easy for customers to measure the breakdown voltage of all kinds of oil;
You can print the test result by the micro printer internal the tester;
Meanwhile, you can upload the test data to PC from RS232 for data analyzing;
The special circuit design makes the tester has a good performance at stability and anti-noise;

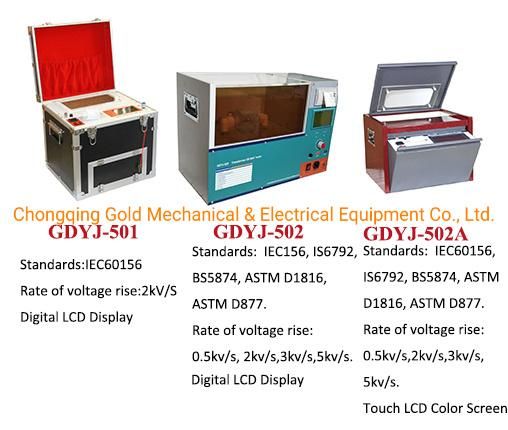

Different Model for Choice

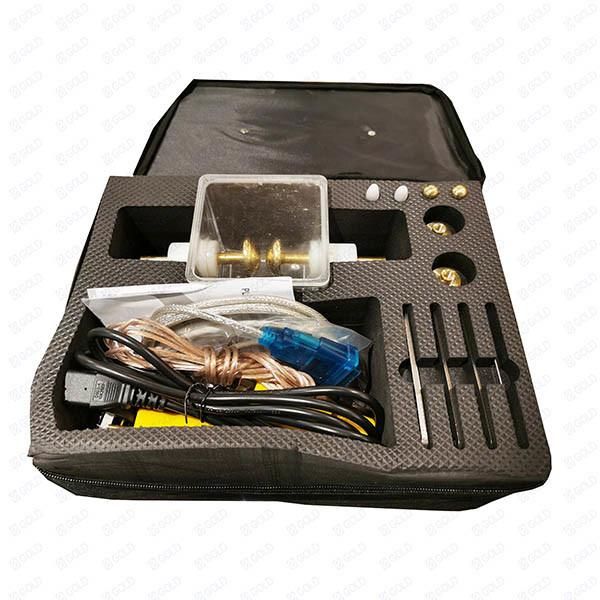

Spare Parts
