• Model NO.：GD-0711A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1.    Bath temperature control point: 140ºC,150ºC2.Volume of vessel:    4000ml×23.Negative pressure:

3.7 kPa(27.75mmHg).

Allowable bias is ±0.3 kPa.

4.Power of shaking machine: 30W5. Dimension:    510mm×520mm×380mm   6.Power supply:      AC(220±10%)V, 50Hz.

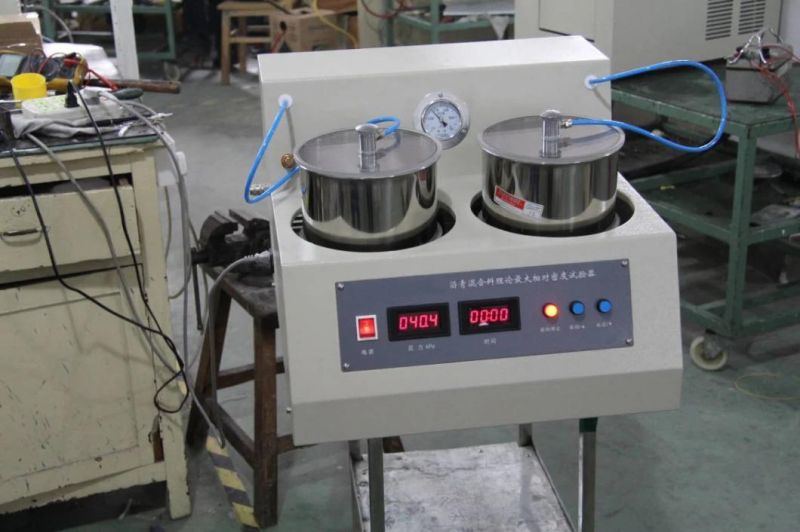

I. Main technical features



1. It adopts single-chip machine technology to vacuum, shake, fill the air and relieve pressure automatically.



2. Equipped with a high-accuracy absolute pressure sensor, the negative pressure can reach 3.7 kPa±0.3 kPa.



3. The working status of the vacuum pump can be reflected by a vacuum meter.



4. It equips a water buffer device to prevent the water in the negative pressure container from flowing into the vacuum pump.



5. It can determine 2 samples at the same time.Test efficiency is high.The structure is reasonably designed. It is easy to use

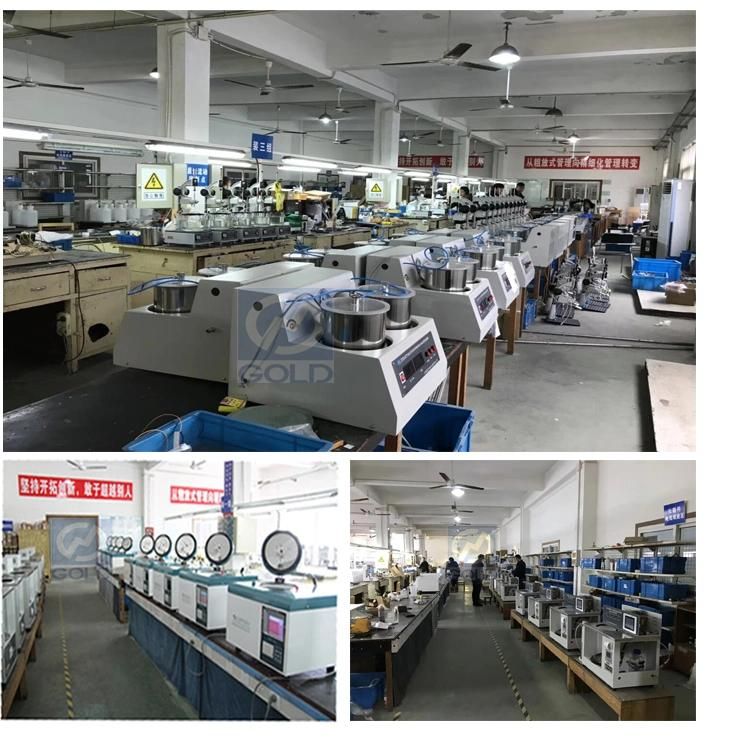

At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.
