• Model NO.：YG(B)091L
• Accuracy Grade：0.2%
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Working Mode：Cre
• Max. Tensile Speed：50-1000mm,Min
• Max. Elongation：800mm
• Clamp Width：60mm
• Transport Package：Export Package.
• Trademark：DARONG
• Origin：China
• HS Code：9024800000
• Production Capacity：1000PCS

Basic Info.

Model NO. YG(B)091L Accuracy Grade 0.2% Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Working Mode Cre Max. Tensile Speed 50-1000mm/Min Max. Elongation 800mm Clamp Width 60mm Transport Package Export Package. Trademark DARONG Origin China HS Code 9024800000 Production Capacity 1000PCS

Product Description

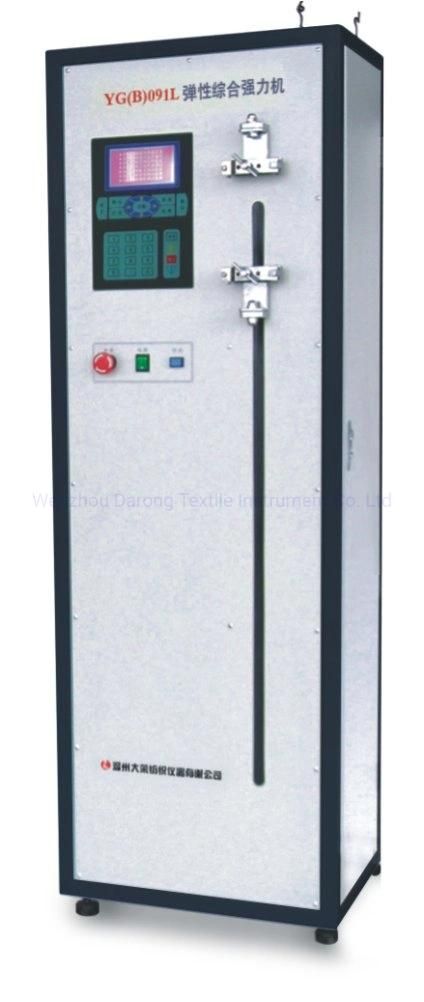

YG(B) 091L  Electronic elastic strength tester
[Scope of application] :
Used to measure the elastic properties of various socks, knitted underwear, woven fabric, spandex wire, spandex cored wire, sling and elastic band and other materials

[Related standards] :
FZ/T01034 FZ/T01062 ASTM D4964 BS4952, etc
[ Instrument characteristics ]
1, LCD screen directly display test curve.
2, powerful data query function, can view any time of data and curve.
3, built-in multiple groups of test parameter setting, suitable for different samples of the test.
4, clip distance automatic positioning, modify the test clip distance without moving the positioning block.
5, support online communication, supporting expert analysis system.
[ Technical parameters ] :
1, working mode: CRE principle, microcomputer control, LCD Chinese display, support online communication.
2. Sampling frequency: 1000 times/second
3. Measuring force range: 1% ~ 100% of full range

Model	-5	-50
Max range	50N	500N

4, the test accuracy: ≤±0.2%F·S
5, tensile speed :(50 ~ 1000)mm/min
6, the maximum elongation: 800mm
7, elongation resolution: 0.01mm
8, power supply: AC220V±10% 50Hz 200W
9, overall size :(520×400×1600)mm
10, weight: about 60kg
