• Model NO.：MCT-02
• Test Item：Puncture Resistance
• Resolution：0.001n
• Test Speed：0.05-600mm,Min
• Specimen：Polyurethane Film (Artificial Skin)
• Nominal Specifications：0.3~1.2mm
• Function：Syringe Needle Penetration Force
• Trademark：Pubtester
• Origin：Jinan, Shandong
• Production Capacity：30 Sets,Quarter

Basic Info.

Model NO. MCT-02 Test Item Puncture Resistance Resolution 0.001n Test Speed 0.05-600mm/Min Specimen Polyurethane Film (Artificial Skin) Nominal Specifications 0.3~1.2mm Function Syringe Needle Penetration Force Trademark Pubtester Origin Jinan, Shandong Production Capacity 30 Sets/Quarter

Product Description

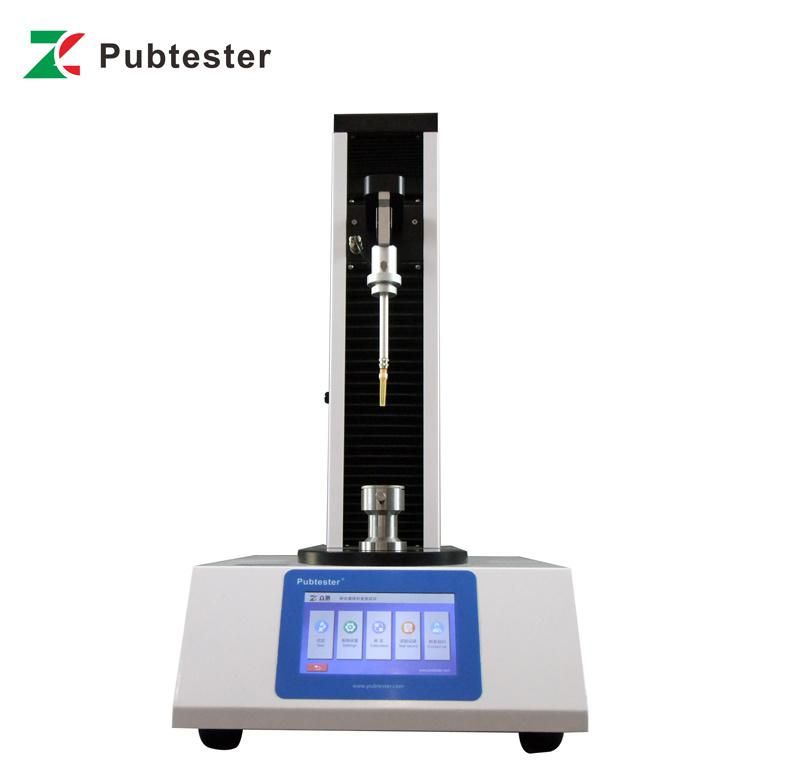

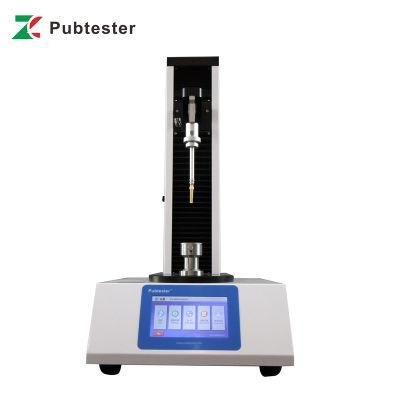

MCT-02 Hypodermic syringe needle penetration force puncture resistance test equipment
MCT-02 Hypodermic syringe needle penetration force puncture resistance test equipment is used to determine the puncture force of various injection needles, medical needles, and needle tubes, and is suitable for stapler manufacturers, medical device inspection institutes, universities, research institutions, etc.



Technical Features

• 7-inch color touch screen with intelligent data processing functions providing users with a comfortable and smooth operating experience

• Concise and intuitive operation interface, convenient user-defined test functions, and complete data analysis and reporting functions
• Automatic calibration, simple and convenient operation
• Brand-new UI interface design, intuitive operation interface, greatly improving the operation experience
• Support a variety of specifications sample test, users s can choose freely
• With automatic data storage, power-off automatic memory function
• Powerful data storage function, which can store more than 50000 data
• The computer software fully complies with the requirements of GMP "Computerized System", with functions such as user management, authority management, and data audit trail.

Test Principle
Fix the medical needle and polyurethane film on the fixture respectively, the device pierces the polyurethane film downward at a certain speed, the puncture force is record automatically.

Applications

Basic Applications	Extended Applications
Syringe needle	Puncture needle

Technical Specifications

Specifications	MCT-02
Test Item	Puncture Resistance
Nominal Specifications	0.3~1.2mm
Test Range	0.10~5.00N
Accuracy	0.5% FS
Resolution	0.001N
Test Speed	0.05-600mm/min
Specimen	polyurethane film (artificial skin)
Instrument Dimension	340mm (L) x 230mm(W) x 320mm(H)
Net Weight	15Kg
Power Supply	220V 50Hz

Standards GB 15811

Configuration
Standard configuration: Instrument, micro printer, touch screen, test fixture.



FAQ

Are you a manufacturer or trading company?
We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.

Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.

How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.

Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.

How about the warranty?
Our warranty is 12 months, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.

How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
