• Name 1：Bolts&Nuts Test Fixtures
• Size Range：M10 M12 M14 M16 M18 M20 M22 M24 M27 M33
• Usage：Bolts and Nuts Strength Testing
• Application：High Strength Bolt Test Fixture
• Transport Package：Plywood Case
• Specification：1500*800*1200
• Trademark：Chenji or OEM ODM
• Origin：Jinan or Others

Basic Info.

Model NO. CJ-33 Accuracy Grade 1 Load Way Mechanical Load Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Name 1 Bolts&Nuts Test Fixtures Size Range M10 M12 M14 M16 M18 M20 M22 M24 M27 M33 Usage Bolts and Nuts Strength Testing Application High Strength Bolt Test Fixture Transport Package Plywood Case Specification 1500*800*1200 Trademark Chenji or OEM ODM Origin Jinan or Others

Product Description

Bolts and Nuts Test Fixtures with Various Sizes M10 M12 M14 M16 M18 M20 M22 M24 M27 M33
Overview

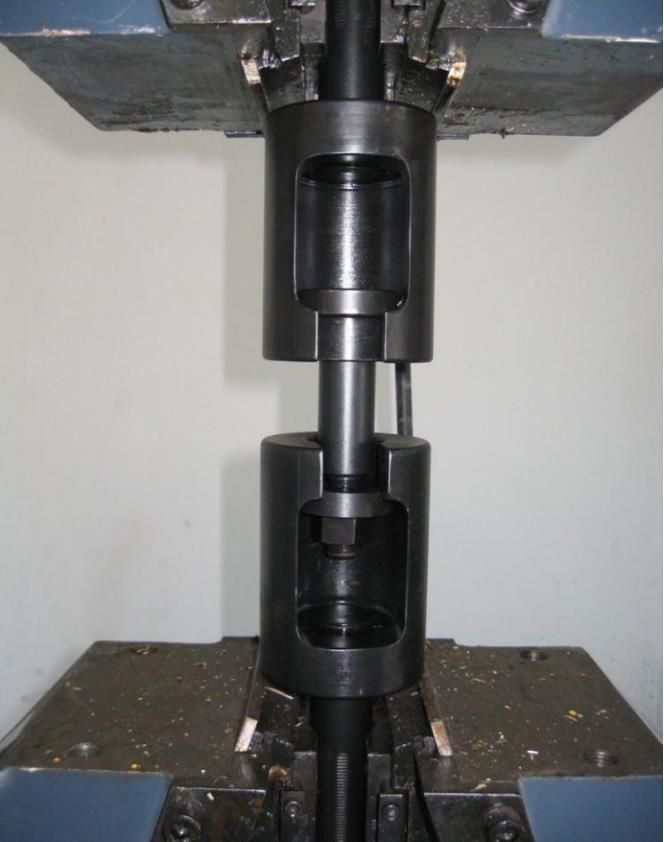

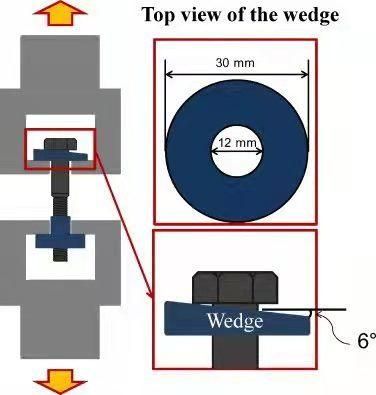

The high-strength bolt test fixture is carefully designed and manufactured by our company according to the relevant national standard GB/T3098.1-2000 and selected special materials. It can be combined in different ways to carry out bolt wedge load test and ordinary tensile test, and the minimum bolt is guaranteed Tensile load test,
nut guaranteed load test. The clamp is clamped into the jaws of the universal testing machine by connecting tie rods, that is, various tensile tests can be performed, and the ordinary hydraulic universal testing machine does not need to add or change other devices.
2. Main technical indicators:
1. Maximum tensile force of wedge load test: 696kN (M30-10.9s)
2. Bolt minimum tensile load test: 583kN (M30-10.9s)
3. Guaranteed load test of nut: 583kN (M30-10.9)
4. Bolt guarantee load test: 466kN (M30-10.9s)
Remarks: High-strength bolt test fixtures above M30 require special order.

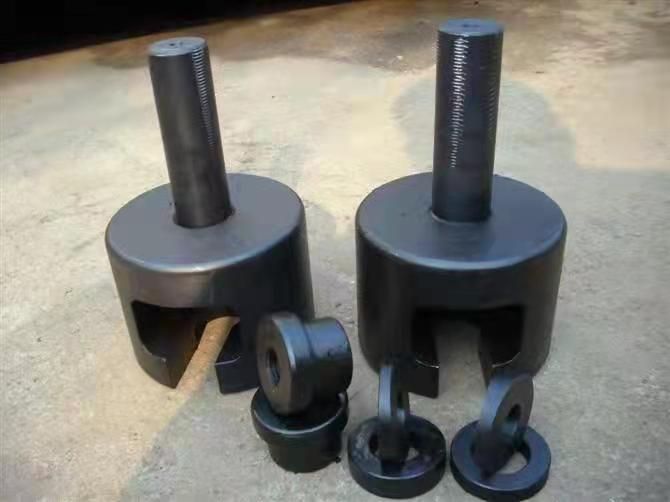

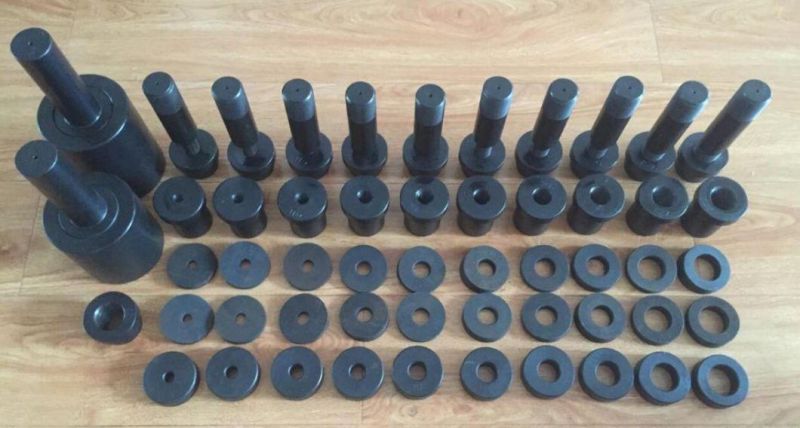

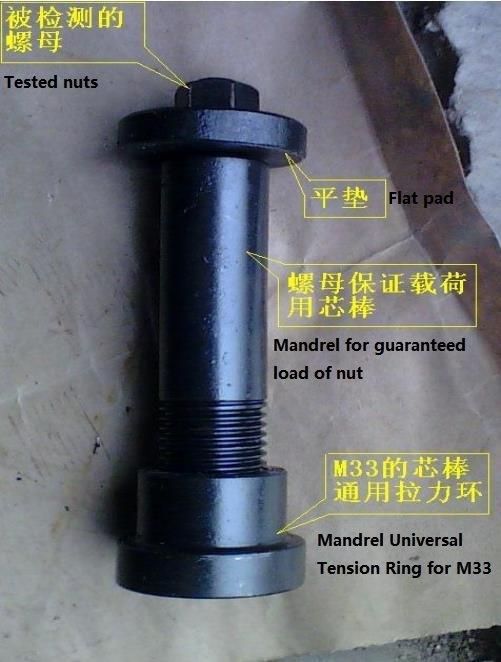

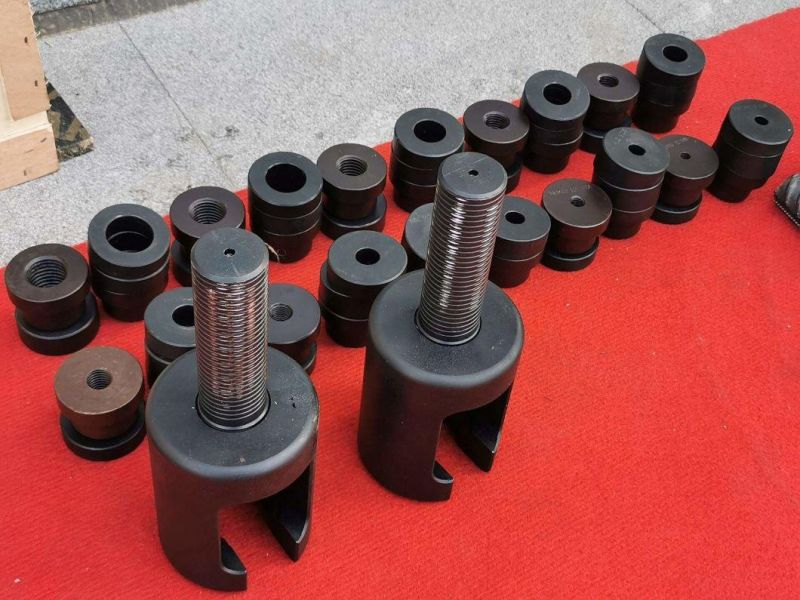

3. Fixture configuration:
(Another set of tension ring that can be delivered with M33 is purchased, and a full set of clamps totals 65 pieces)

Specific	Tension Ring	Flat pad	Wedge block	Mandrel 12.9S	Fixture
M10	2 PCS	1PC	6°/10°	1PC	1pair Including M33 Universal tension ring
M12	2 PCS	1PC	6°/10°	1PC
M14	2 PCS	1PC	6°/10°	1PC
M16	2 PCS	1PC	6°/10°	1PC
M18	2 PCS	1PC	6°/10°	1PC
M20	2 PCS	1PC	6°/10°	1PC
M22	2 PCS	1PC	4°/6°	1PC
M24	2 PCS	1PC	4°/6°	1PC
M27	2 PCS	1PC	4°/6°	1PC
M30	2 PCS	1PC	4°/6°	1PC

1. Maximum tension of wedge load test: 696kn (m30-10.9s)
2. Minimum tensile load test of bolt: 583kn (m30-10.9s)
3. Nut guarantee load test: 583kn (m30-10.9)
4. Bolt guarantee load test: 466kn (m30-10.9s)
