• Model NO.：HJ-66
• Storage Partition Material：Stainless Stee
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-66 Storage Partition Material Stainless Stee Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

The machine is widely used in battery testing of new energy vehicles, laptop batteries, mobile phone batteries, new energy batteries, electric bicycle batteries, etc.

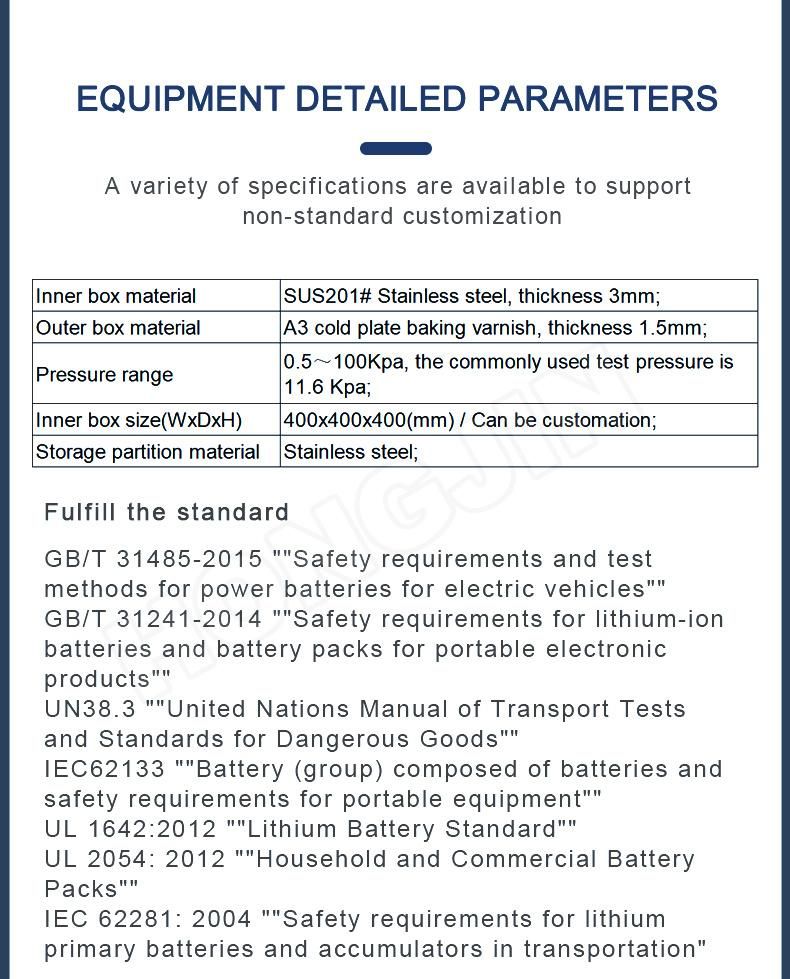

Inner box material	SUS201# Stainless steel, thickness 3mm;
Outer box material	A3 cold plate baking varnish, thickness 1.5mm;
Pressure range	0.5~100Kpa, the commonly used test pressure is 11.6 Kpa;
Inner box size(WxDxH)	400x400x400(mm) / Can be customation;
Storage partition material	Stainless steel;

Product Overview
1. Test purpose This test case is designed for UL, EN, IEC and other standard test requirements, and it can reach the low-pressure storage state of the sample in a short time. It can automatically control the test cycle, monitor the pressure change in the box throughout the process, and realize the automatic termination of the test. . The simulated battery and battery pack are stored for 6 hours at a pressure equal to or lower than 11.6kPa and an ambient temperature of (20±5)ºC. If the battery has no leakage, no exhaust, no disassembly, no rupture and no fire, and every The open circuit voltage of a test cell or battery pack after the test is not less than 90% of its voltage before the simulation test, which is considered qualified.

Equipment installation environment
1. Ambient temperature: 25±5ºC;
2. Relative humidity: 45-85%RH;
3. Atmospheric pressure: 86~106KPa;
4. No direct sunlight or direct radiation from other heat sources;
5. No strong vibration around
