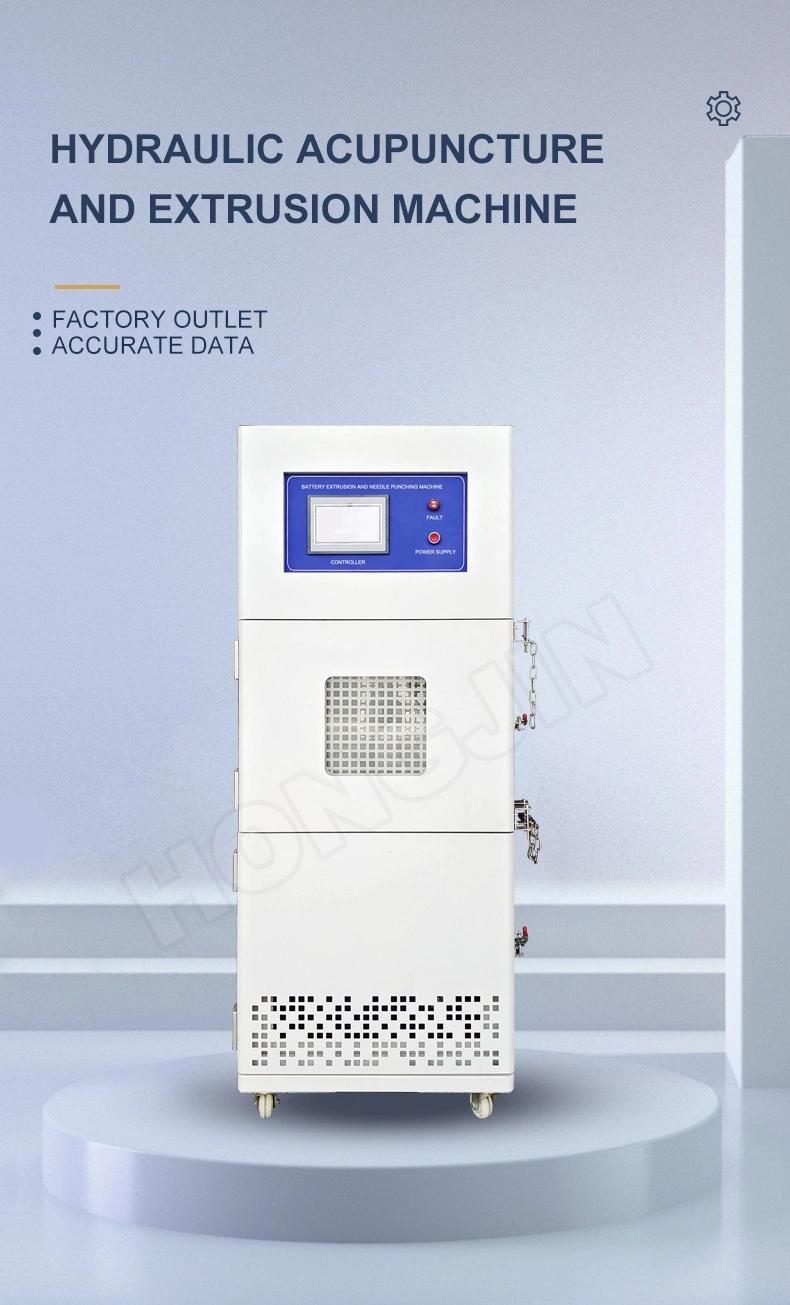

Battery Squeeze Acupuncture Extrusion Testing Machine
Dongguan Hongjin Test Instrument Co., Ltd.- After-sales Service:Lifetime Maintenance
- Power Supply:AC220V, 50,60Hz
- Certification:CE, ISO
- Controller:Touch
- Maximum Force:1-20kn
- Effective Itinerary:300mm
Base Info
- Model NO.:HJ-69
- Test Space:W300xd300xh300mm
- High Temperature Resistant Steel Needle:100mm (Can Be Specified)
- Needle Stroke:200mm
- Needle Speed:10-40mm,S (Can Be Specified)
- Transport Package:Fumigation-Free Standard Export Wooden Box
- Trademark:Hongjin
- Origin:China
- Production Capacity:1000 Sets, Month
Description
Basic Info.
Model NO. HJ-69 Test Space W300xd300xh300mm High Temperature Resistant Steel Needle 100mm (Can Be Specified) Needle Stroke 200mm Needle Speed 10-40mm/S (Can Be Specified) Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ MonthProduct Description
Test purposesThis machine is suitable for simulating all kinds of batteries in use, transportation, storage or disposal of household waste, the battery is squeezed and needled. The battery is qualified if it does not explode or catch fire.
This machine is suitable for simulating acupuncture conditions of various batteries during transportation and storage. The test should be carried out at an ambient temperature of 20ºC±5ºC. The battery connected to the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) is placed in a fume hood, and a non-corrosive rust steel with a diameter of 2-8mm is used. The needle pierces the center of the largest surface of the battery at a speed of 10mm/s~40mm/s, keeps it for any time and observes the test result. The battery is qualified if it does not explode or does not catch fire.

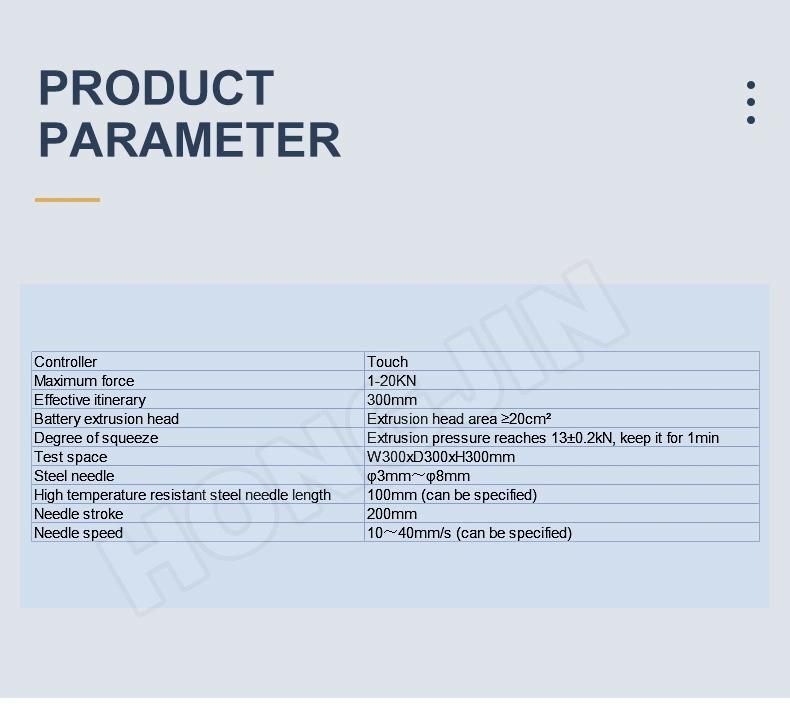

Controller | Touch |
Maximum force | 1-20KN |
Effective itinerary | 300mm |
Battery extrusion head | Extrusion head area ≥20cm² |
Degree of squeeze | Extrusion pressure reaches 13±0.2kN, keep it for 1min |
Test space | W300xD300xH300mm |
Steel needle | φ3mm~φ8mm |
High temperature resistant steel needle length | 100mm (can be specified) |
Needle stroke | 200mm |
Needle speed | 10~40mm/s (can be specified) |
