• Model NO.：HJ-69
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Measure The Maximum Load Range：2kg
• Control Method：Full Touch
• Testing Speed：0-100mm,Min
• Maximum Measuring Height：100mm
• Minimum Decomposition Capacity：0.1g
• Minimum Fine-Tuning Distance：0.01mm
• Transmission Mechanism：Ball Screw Drive
• Power Supply：AC220V
• Volume：360X260X540mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Display Digital Weight 0-100Kg Power Source AC220V Measure The Maximum Load Range 2kg Control Method Full Touch Testing Speed 0-100mm/Min Maximum Measuring Height 100mm Minimum Decomposition Capacity 0.1g Minimum Fine-Tuning Distance 0.01mm Transmission Mechanism Ball Screw Drive Power Supply AC220V Volume 360X260X540mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

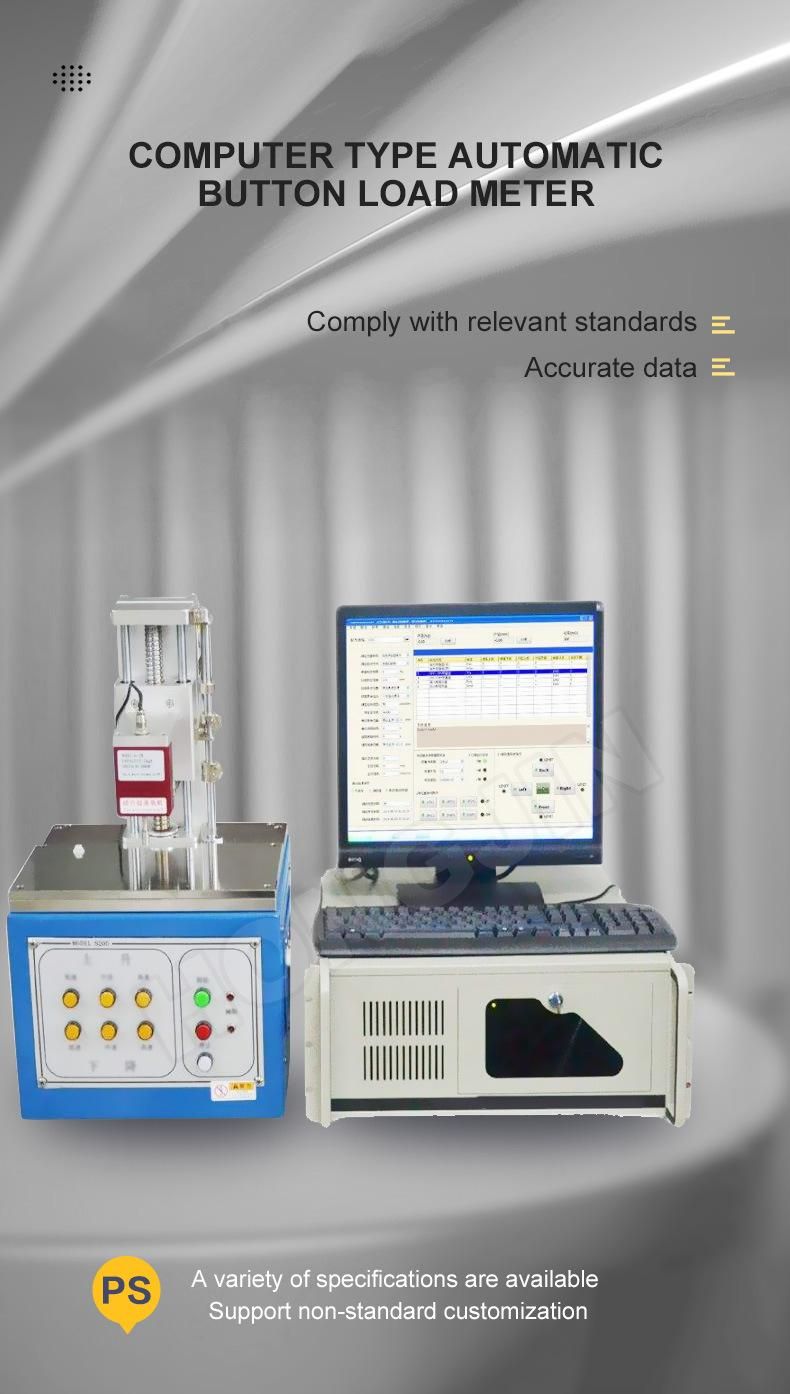

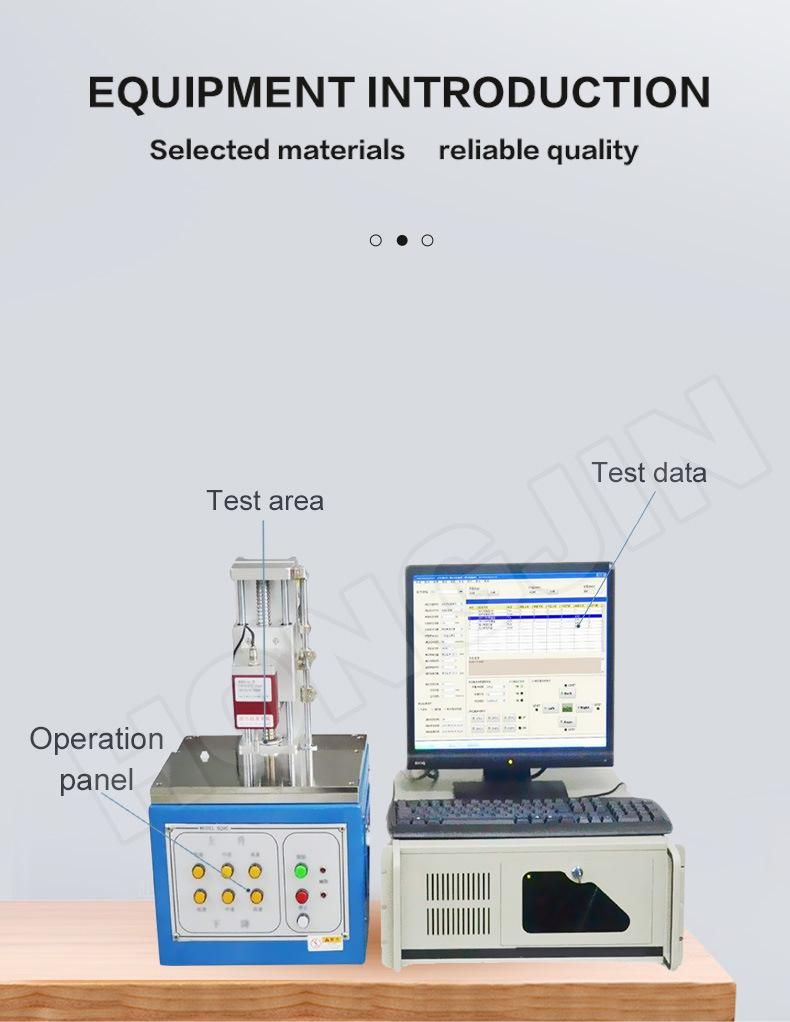

The automatic button load curve meter is suitable for the (load-stroke) curve test of various buttons and switches. It is set by the WINDOWS Chinese window screen. The operation is simple and convenient, and all data can be stored (test conditions, load curve graphs, test results) , Check report... etc.). This machine is driven by a servo motor, which can provide high-precision (load-stroke) measurement, and can obtain completely accurate button and switch curve tests.

Scope of application
The electric load meter is composed of the simplest machine structure, and can perform the tactile test of the silicone rubber keys at a very fast speed. At the same time, it can test the peak value, valley value, feel value and corresponding stroke value of various products. This electric load tester is suitable for on-site measurement of conductive rubber, metal shrapnel, and membrane buttons. The peak data of each touch switch is measured by sensor induction, and the quality stability is quickly measured on site. It can also be used in quality control inspection stations. and Engineering Department.


Measure the maximum load range	2Kg
Control method	Full touch
Testing speed	0-100mm/min
Maximum measuring height	100mm
Minimum decomposition capacity	0.1g
Minimum fine-tuning distance	0.01mm
Transmission mechanism	Ball screw drive
Power supply	AC220V
Volume	360×260×540mm
