• Model NO.：HJ-80
• Control：Touch Screen Controller
• Weight：100-500Kg
• Power Source：AC220V
• Control Method：Touch Screen
• Clamping Width：160mm
• Test Sample Weight：Allow 1000g
• Falling Surface Size：350*350*50mm
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-80 Control Touch Screen Controller Weight 100-500Kg Power Source AC220V Control Method Touch Screen Clamping Width 160mm Test Sample Weight Allow 1000g Falling Surface Size 350*350*50mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Features

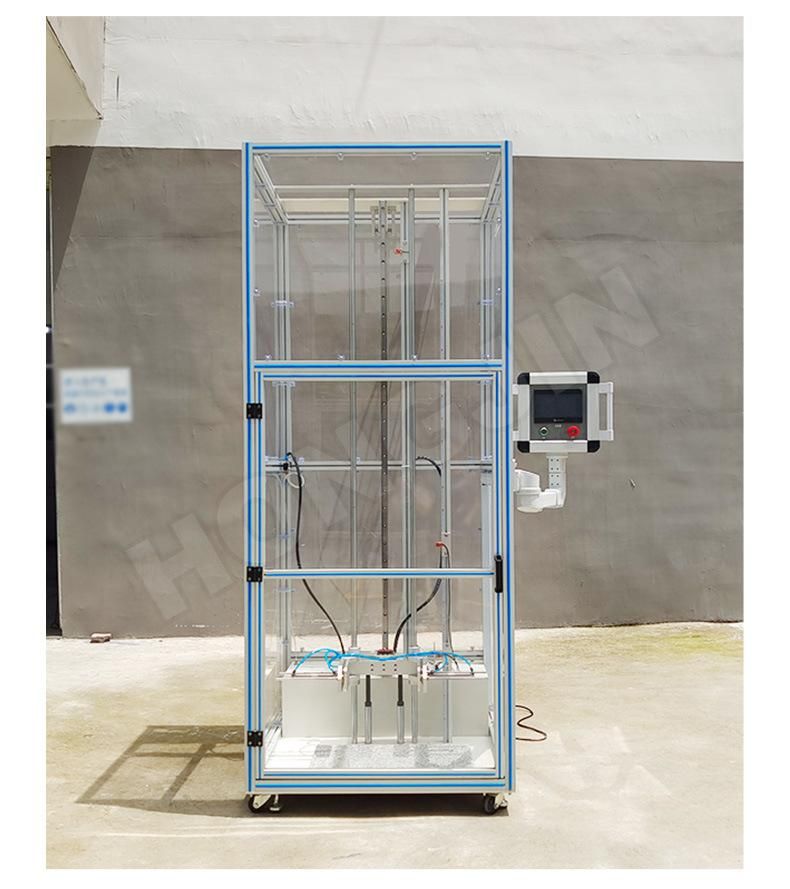

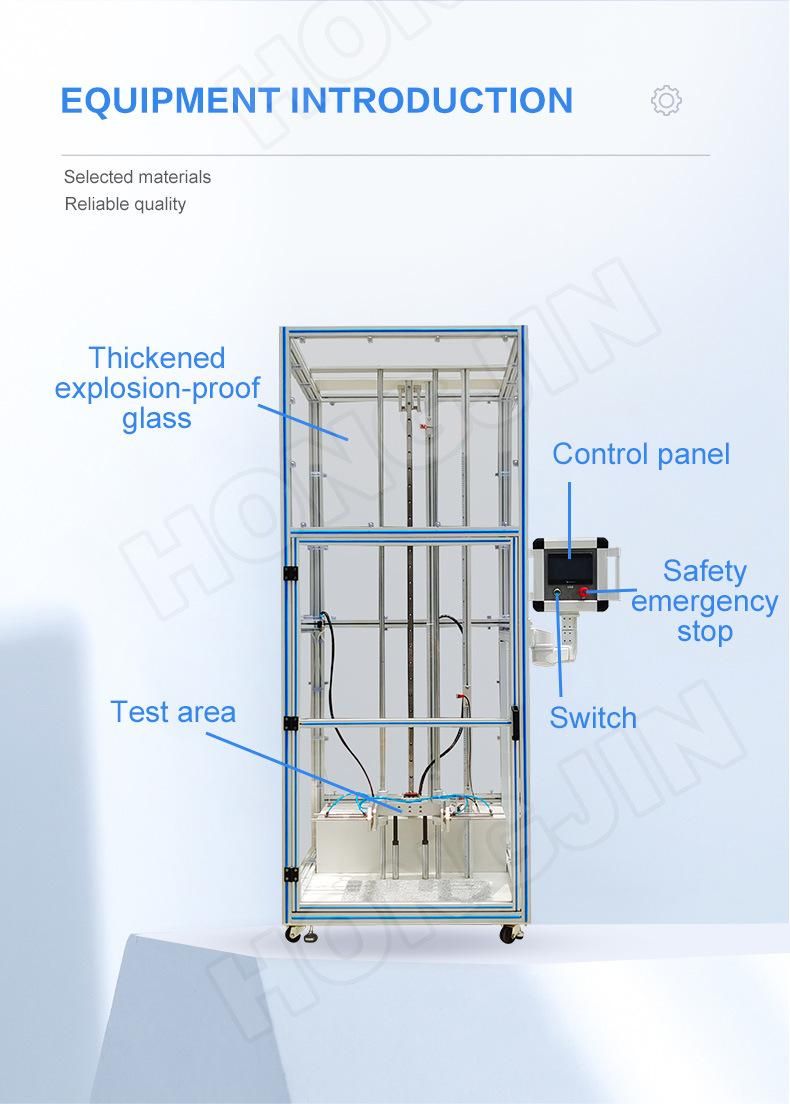

1. The frame adopts aluminum profile + thickened transparent acrylic, beautiful appearance and firm structure;
2. The lifting mechanism is guided by linear slide rails, and the synchronous belt drives the lifting, and the test height can be set arbitrarily;
3. Realize product multi-angle test;

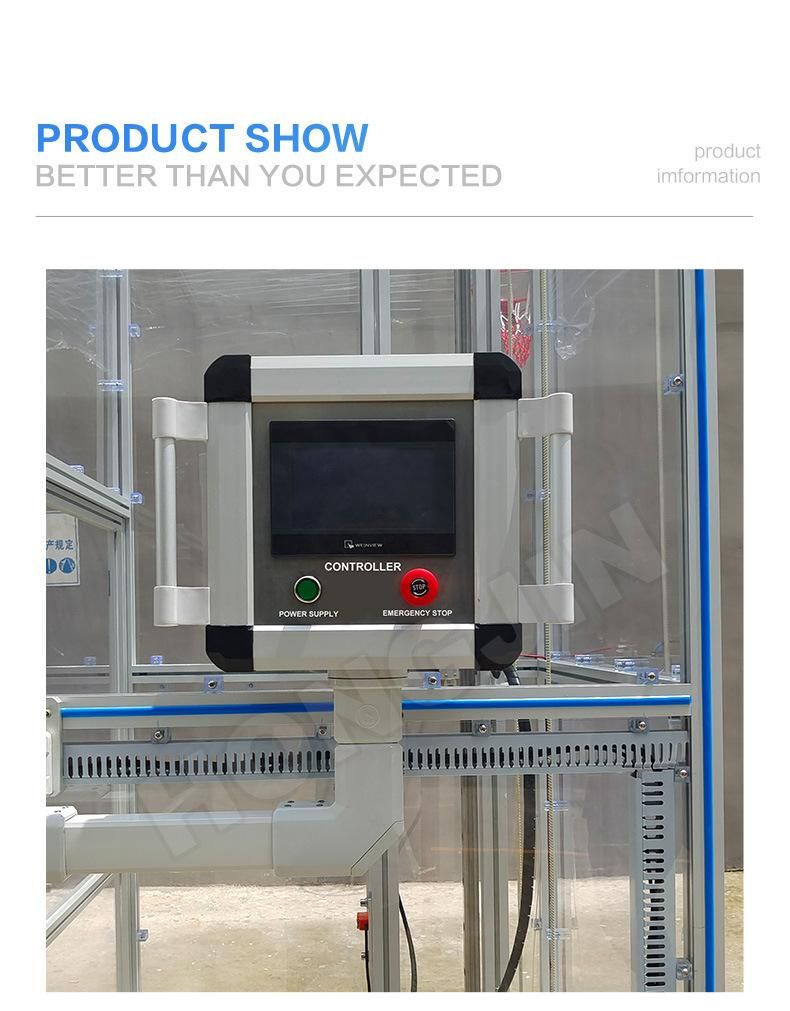

4. Using touch screen + PLC control, can display the test height and the number of drops and other data.

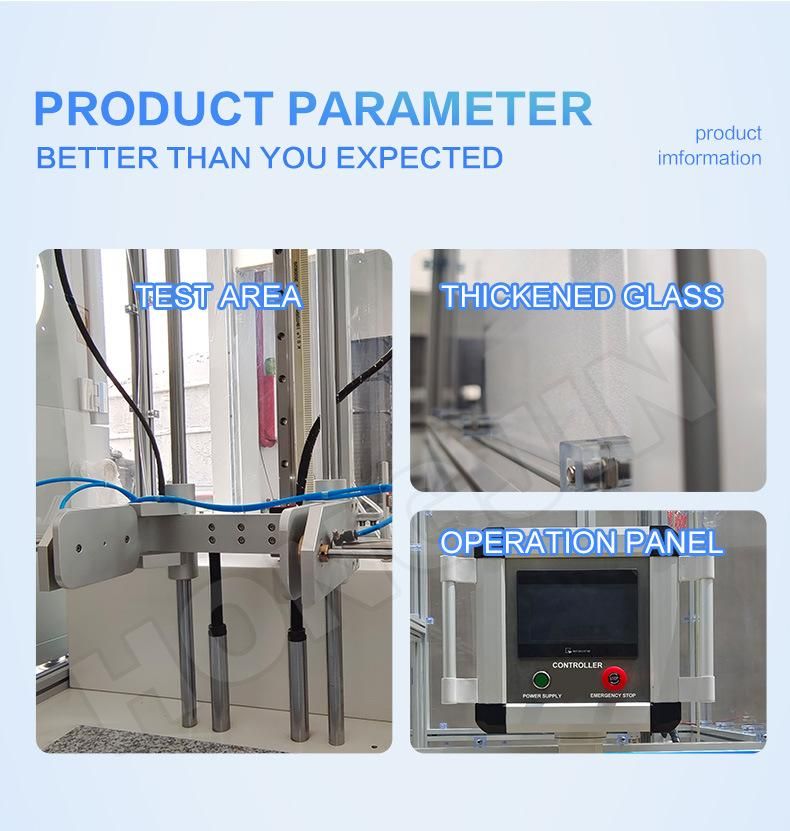

5. Equipment with safety device: safety light curtain (the equipment will automatically stop when the hand reaches into the test area)

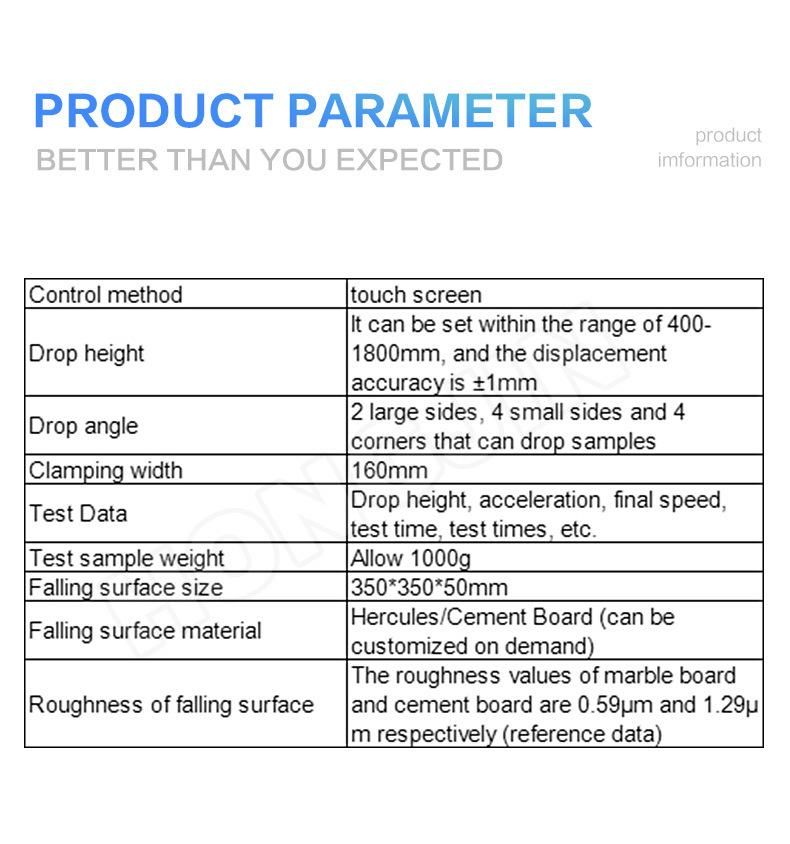

Control method	Touch screen
Drop height	It can be set within the range of 400-1800mm, and the displacement  accuracy is ±1mm
Drop angle	2 large sides, 4 small sides and 4 corners that can drop samples
Clamping width	160mm
Test Data	Drop height, acceleration, final speed, test time, test times, etc.
Test sample weight	Allow 1000g
Falling surface size	350*350*50mm
Falling surface material	Hercules/Cement Board (can be customized on demand)
Roughness of falling surface	The roughness values of marble board and cement board are  0.59μm and 1.29μm respectively (reference data)

The mobile phone directional drop tester is suitable for testing the durability of the shell and the resistance (heavy) drop of the internal structure. It is used to evaluate the impact of accidental drops on product performance when the product is actually used by the customer. It is suitable for small electronic products such as mobile phones, PADs, e-books, and electronic dictionaries for drop tests in specified directions or locations. The system uses the touch screen to communicate with the PLC, controls the brake stepper motor to drive the clamping clamps on the drop mechanism up and down, and cooperates with the release action of the decoupling device and the clamp to realize the drop test..
