• Model NO.：HYS 101
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. HYS 101 HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

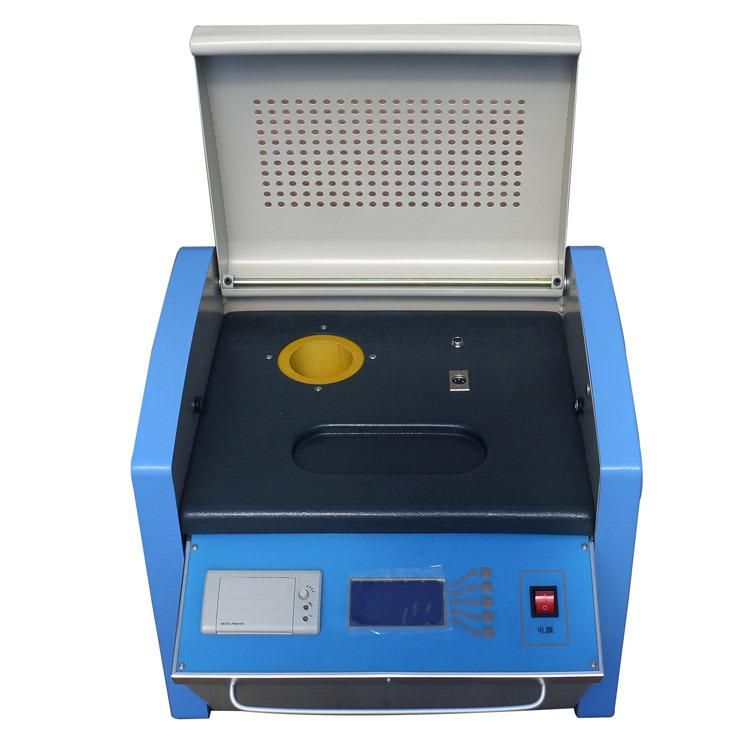

XHYS101 insulating oil dielectric loss tester

XHYS101 insulating oil dielectric loss tester is mainly used for power equipment insulation in the liquid, dielectric constant and dielectric loss value of volume resistivity measurement. This instrument adopts single-chip computer technology, automatic complete heating, temperature control, data sampling, calculation, display, printing and storage process. Advanced measuring principle and digital technology make your job easy and convenient.

Main feature:

1. Highly automated, heating, dielectric loss measurement, measuring resistivity can be a complete;

2. The Swiss TETTEX advanced technology, ensure the data accurate and reliable.

3. Have open power, high and low voltage circuit, air heater burning etc

4. Temperature control, integration of test structure, rational layout, easy to operate.

5. PID temperature control, intermediate frequency induction heating, each sample temperature should be about 15 minutes.

6. Automatic storage 128 groups of data, bring their own calendar, automatic print measurement results.

Product Name	dielectric dissipation tester
Range	electric capacity: 1pF~200pF Dielectric Loss: 0~100% Resistivity: 10M~10T
Precision:	electric capacity: 0.5% + 1pF Dielectric Loss: 1% + 0.0002 Resistivity: 10% Temperature: ± 1 ºC
Resolution ratio:	electric capacity: 0.01pF Dielectric Loss: 10-5 Resistivity: 0.1M
Output voltage:	dielectric loss: AC 2000V Resistivity: DC 500V
Power:	1000W
Working power supply:	AC220V ± 10% (50±1) Hz
Temperature:	0~40ºC
Humidity:	<80RH
