• Model NO.：HJ-69
• Weight：0-100Kg
• Power Source：AC220V
• Frequency Range：0-999999
• Speed Range：5-60 Times,Minute
• Stroke Adjustment Range：0-80mm
• Machine Size：500X450X350mm
• Operating Voltagele Phase 220V：Single Phase 220V
• Machine Weight (Approx)：50kg
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Weight 0-100Kg Power Source AC220V Frequency Range 0-999999 Speed Range 5-60 Times/Minute Stroke Adjustment Range 0-80mm Machine Size 500X450X350mm Operating Voltagele Phase 220V Single Phase 220V Machine Weight (Approx) 50kg Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

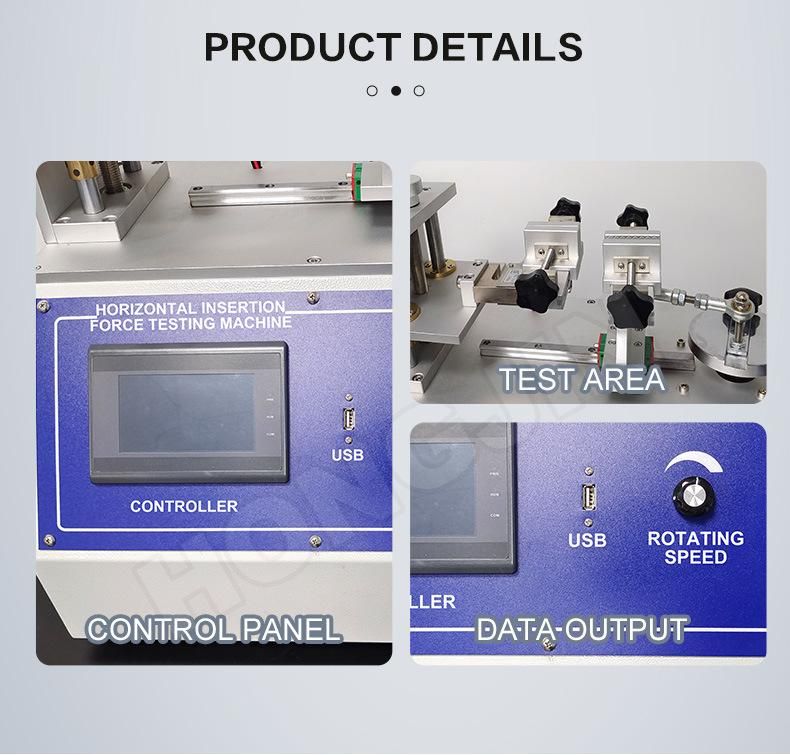

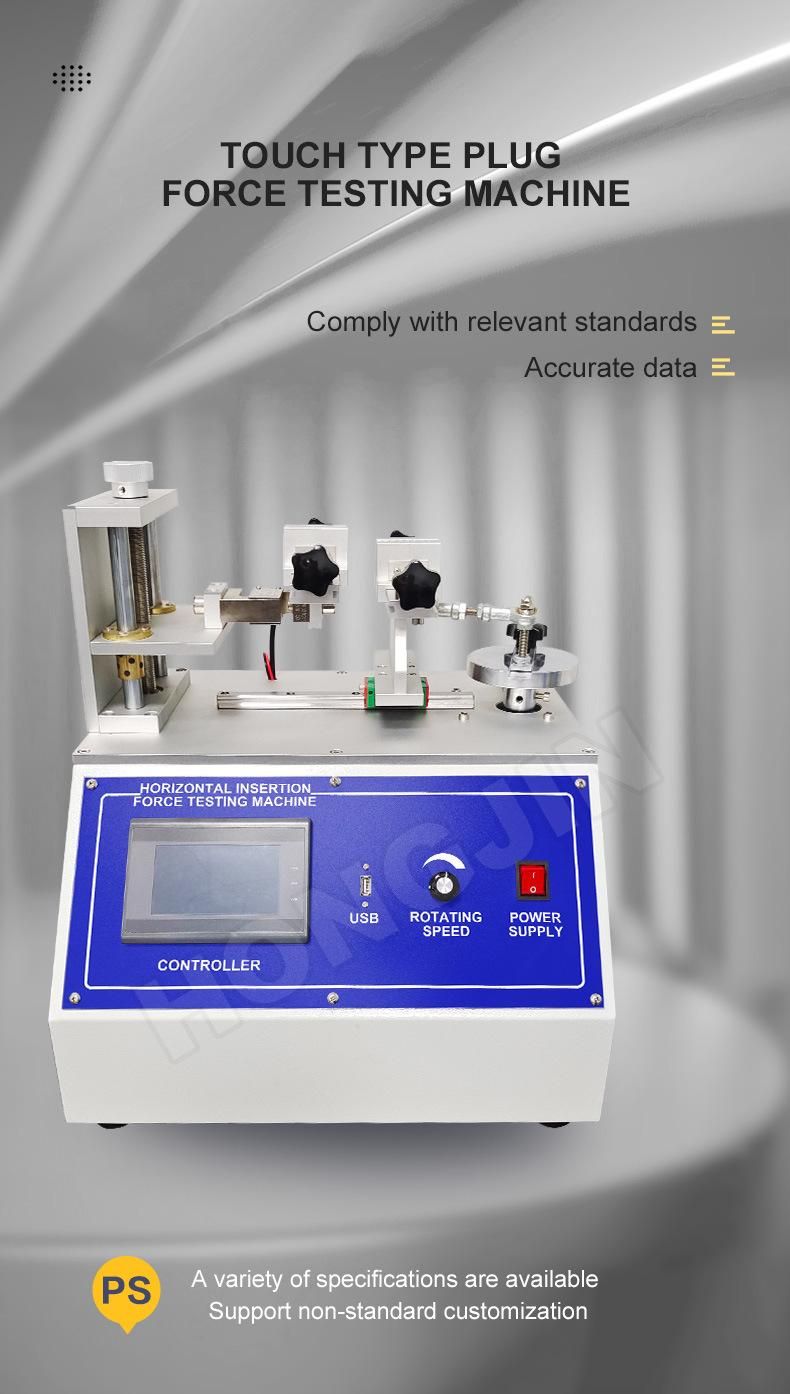

This machine is suitable for testing the insertion and extraction forces of various connectors. With a dedicated automatic heart-seeking device, it will be able to obtain completely accurate insertion and extraction force tests, inspection reports, etc. The automatic center finding device is adopted to solve the fixture problems of various connection tests, and the male and female connectors can be automatically aligned during the test, and there will be no single-sided problems.

The plug-in life testing machine can be used for pin headers, female headers, simple horns, long ear horns, crimping heads, WAFER, round hole IC sockets and USB cables (USB3.0), HDMI high-definition cables, Display cables, DVI Connecting cables, VGA cables and other computer peripheral cables, plugging and unplugging tests for various connectors of various types of terminals, to test the life of the product. The speed pull stroke is adjustable, and the required number of times can be set. When the number reaches the set value, the work will stop automatically. When working, it can be unattended and is a very cost-effective machine.

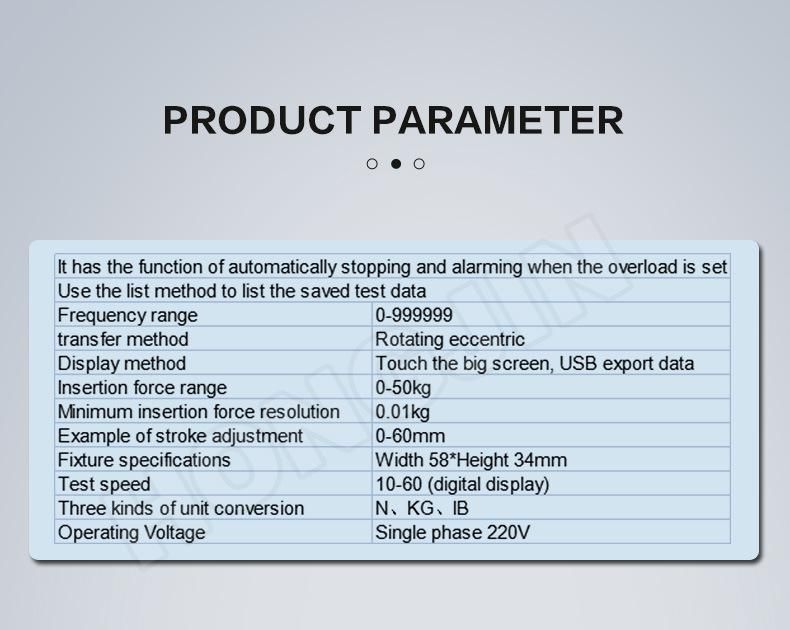

Supply voltage	220V±10%
Frequency range	0-999999
Speed range	5-60 times/minute
Stroke adjustment range	0-80mm
Machine size	500×450×350mm
Operating Voltage	Single phase 220V
Machine weight (approx.)	50kg
