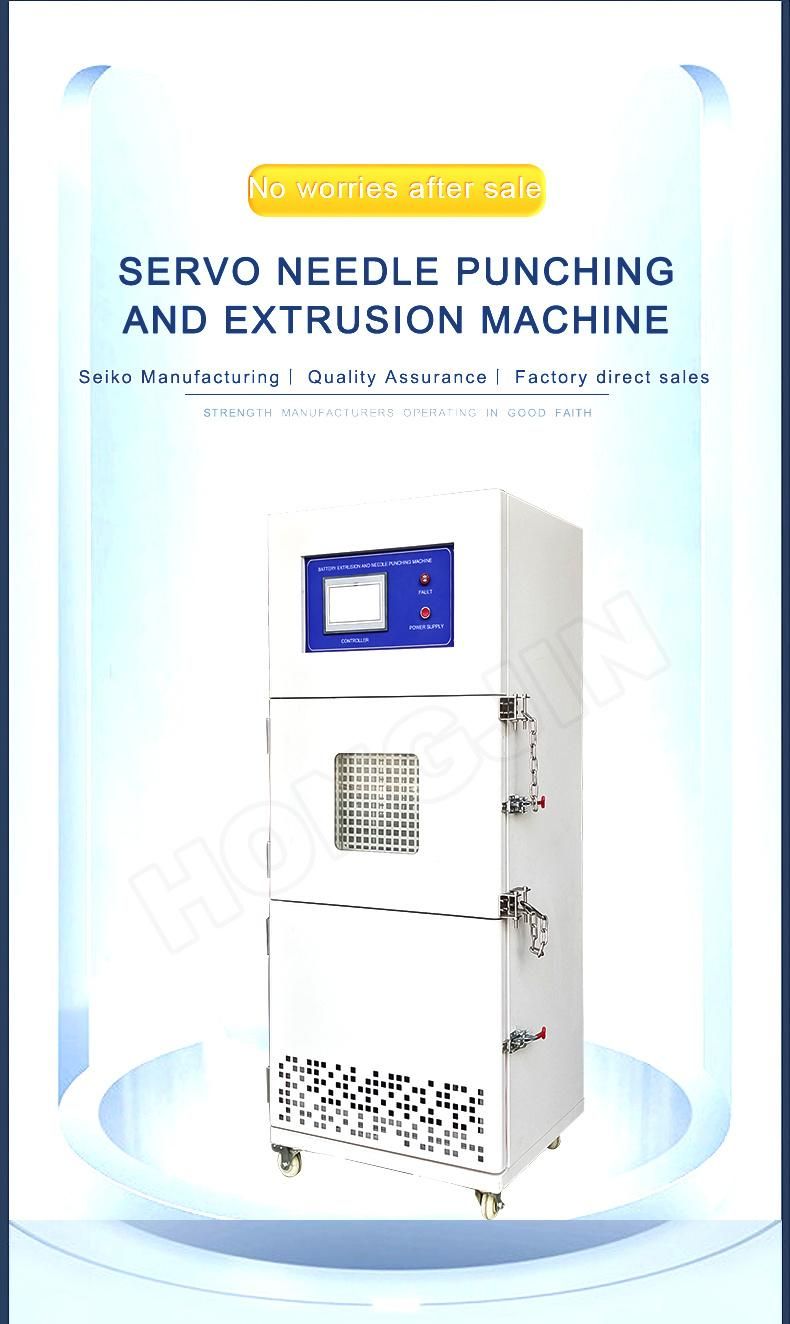

Battery Safety Testing Equipment Battery Nail Penetration and Crush Tester

Dongguan Hongjin Test Instrument Co., Ltd.
  • After-sales Service：Lifetime Maintenance
  • Certification：CE, ISO
  • Warranty：1 Year
  • Controller：Touch
  • Maximum Force：1-20kn
  • Effective Itinerary：300mm

Base Info

  • Model NO.：HJ-80
  • Test Space：W300xd300xh300mm
  • Needle Stroke：200mm
  • Transport Package：Fumigation-Free Standard Export Wooden Box
  • Trademark：Hongjin
  • Origin：China
  • Production Capacity：1000 Sets, Month

Description

Basic Info.

Model NO. HJ-80 Test Space W300xd300xh300mm Needle Stroke 200mm Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Test purposes
This machine is suitable for simulating all kinds of batteries in use, transportation, storage or disposal of household waste, the battery is squeezed and needled. The battery is qualified if it does not explode or catch fire.

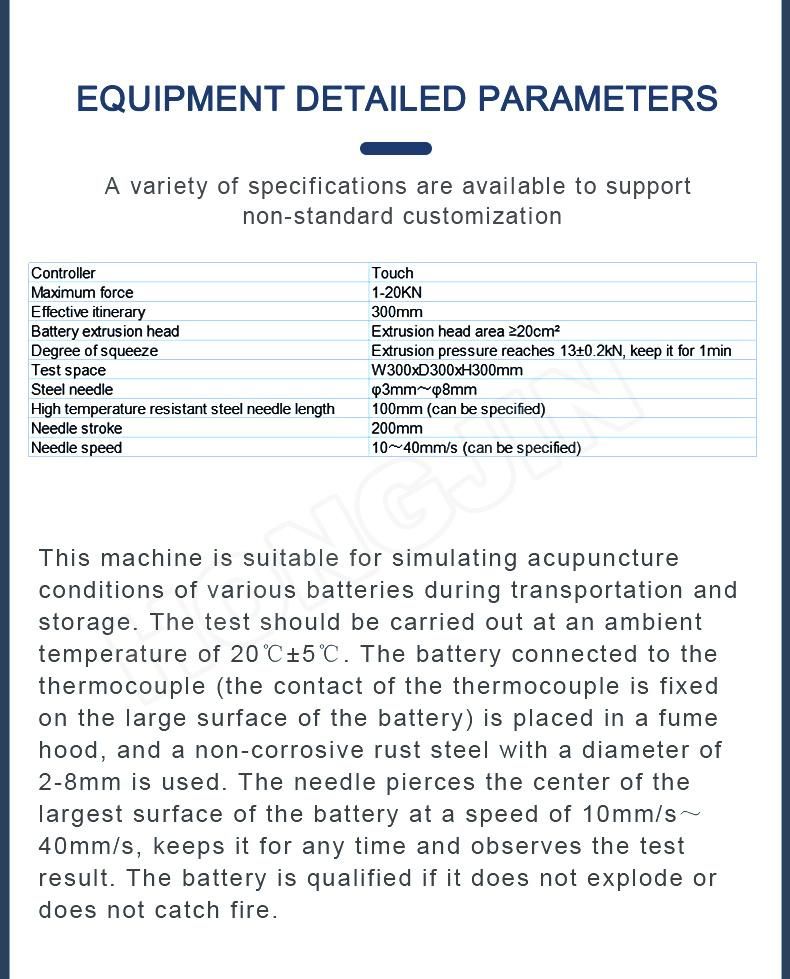

ControllerTouch
Maximum force1-20KN
Effective itinerary300mm
Battery extrusion headExtrusion head area ≥20cm²
Degree of squeezeExtrusion pressure reaches 13±0.2kN, keep it for 1min
Test spaceW300xD300xH300mm
Steel needleφ3mm~φ8mm
High temperature resistant steel needle length100mm (can be specified)
Needle stroke200mm
Needle speed10~40mm/s (can be specified)
Battery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush Tester

Battery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterBattery Safety Testing Equipment Battery Nail Penetration and Crush TesterFAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2.. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
