• Model NO.：HJ-68
• Effective Stroke：300mm
• Test Space：W300xd300xh300mm
• High Temperature Resistant Steel Needle：100mm (Can Be Specified)
• Needle Stroke：200mm
• Speed：1-40mm,S (Can Be Specified)
• Temperature Collection：K Type
• Voltage Collection：0-10V
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-68 Effective Stroke 300mm Test Space W300xd300xh300mm High Temperature Resistant Steel Needle 100mm (Can Be Specified) Needle Stroke 200mm Speed 1-40mm/S (Can Be Specified) Temperature Collection K Type Voltage Collection 0-10V Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

Test purposes

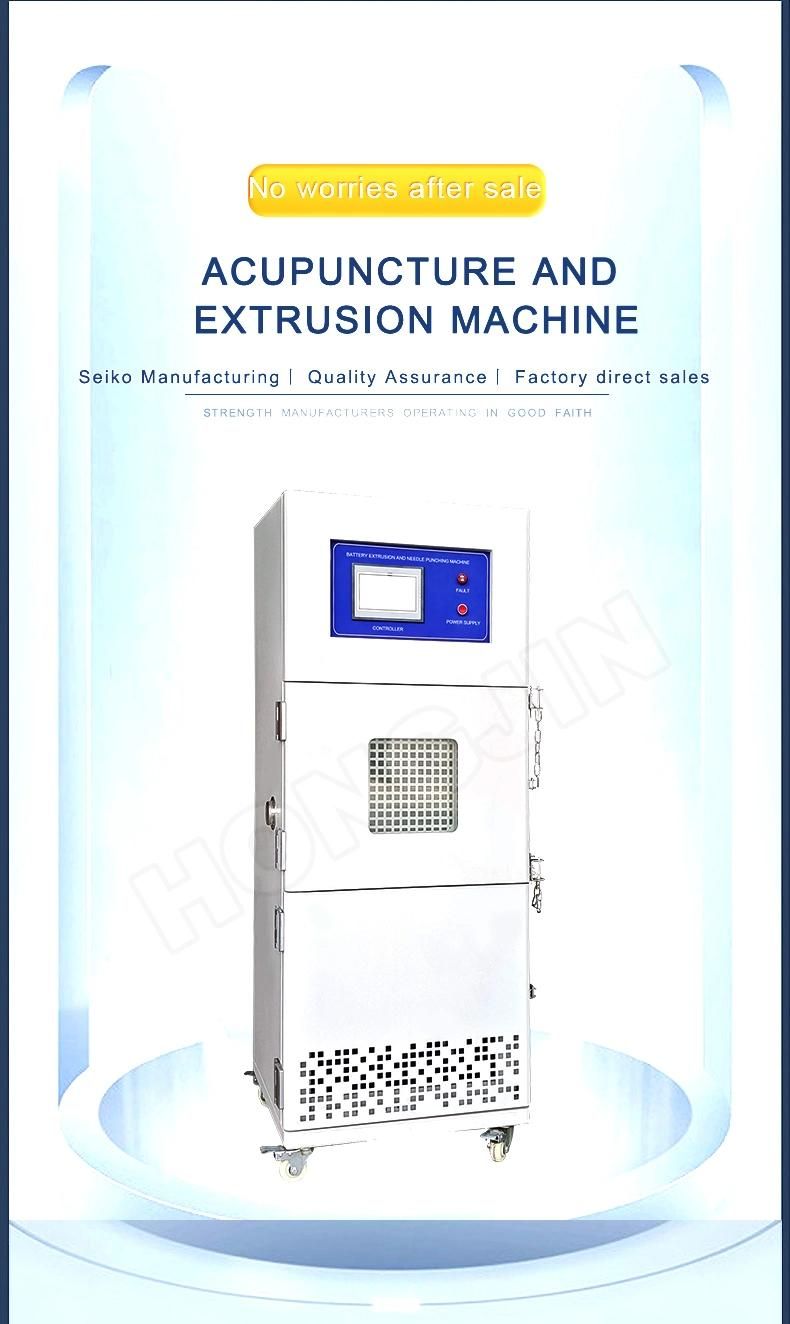

This machine is suitable for simulating all kinds of batteries in use, transportation, storage or disposal of household waste, the battery is squeezed and needled. The battery is qualified if it does not explode or catch fire.


Controller	Servo system
Maximum force value	1~20KN
Effective stroke	300mm
Battery extrusion head	Extrusion head area ≥20cm²
Extrusion degree	Extrusion pressure reaches 13±0.2kN, keep for 1min.
Test space	W300xD300xH300mm
Steel needle	φ3mm~φ8mm
High temperature resistant steel needle length	100mm (can be specified)
Needle stroke	200mm
Speed	1~40mm/s (can be specified)
Temperature collection	K type
Voltage collection	0~10V

FAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 12-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem,we can send you new spare parts or provide on-site repair.

2.. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 7-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
