• Model NO.：SCL-1
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. SCL-1 HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

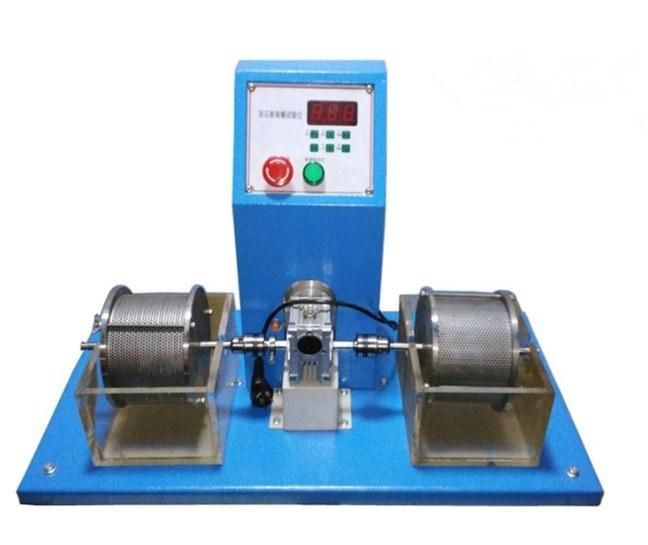

Rock Strength Test Slake Durability Testing Machine

The rock slake durability tester is mainly used to measure the durable disintegration index of the rock. It can test the durability of the rock to resist the disintegration after the dry and wet cycles are affected by the climate. The device rotates 2 or 4 drum-shaped sample boxes at a speed of 20 revolutions per minute through a motor fixed on the bottom plate of the device. The drum-shaped sample box is installed on a bearing coated with lubricating oil, and there is no resistance when rotating. The drum-shaped sample box is made of corrosion-resistant material and is equipped with two sinks.



Technical Parameters

Host power	90W
The speed	20 revolution / min
Sieve cylinder	Dia. 140*100mm
Standard mesh hole diameter	2mm
Sink volume	200 * 170 * 120mm
Sample specifications	40 ~ 60g each, a total of 10 pieces, polished with a grinding disc or abrasive cloth into a round shape
The shape of the test piece	Roughly spherical shape, no angular
Dimensions	900*300*500mm
