Carbon Residue Content Tester by Electrical Furnace Method

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Carbon Residue Content Tester by Electrical Furnac
  • Application：Carbon Residue of Lubricating Oil, etc
  • Heating Method：Electric Furnace Method
  • Heating Power：1150W(230W*5)in Total
  • Controller：Digital Temperature Controller
  • Test Furnace：One Furnace with Four Holes

Base Info

  • Model NO.：GD-30011
  • Temp. Control Range：(0~520)Celsius
  • Auto./Manual：Manual
  • Measurement Range：0~100%
  • Sample Quantity：1
  • Transport Package：Wooden Case
  • Trademark：gold
  • Origin：China
  • Production Capacity：100 Piece,Pieces Per Month

Description

Basic Info.

Model NO. GD-30011 Temp. Control Range (0~520)Celsius Auto./Manual Manual Measurement Range 0~100% Sample Quantity 1 Transport Package Wooden Case Trademark gold Origin China Production Capacity 100 Piece/Pieces Per Month

Product Description

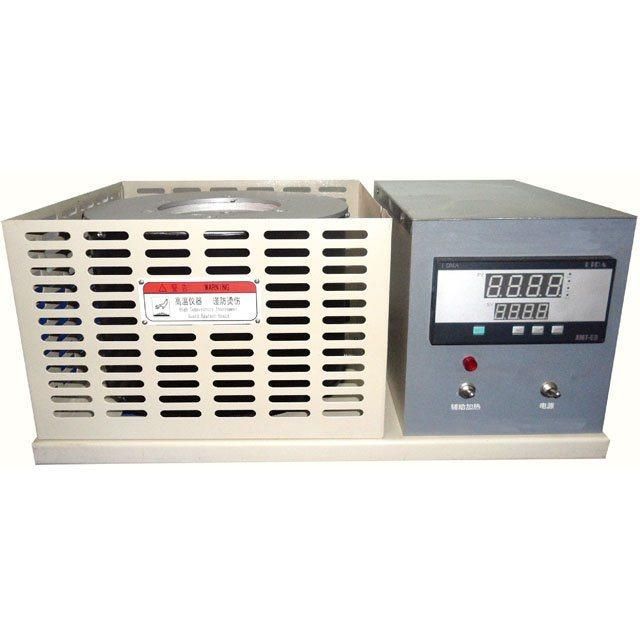

Carbon Residue Content Tester by Electrical Furnace Method







Introduction:

Carbon Residue Tester is suitable to determine the carbon residue content of lubricating oils, heavy liquid

fuels and other petroleum products.
 Carbon Residue Content Tester by Electrical Furnace Method
Features:

1. Carbon Residue Tester adopts desktop configuration. The heating furnace and controller are

assembled to all-in-one machine. Small dimension and easy to use.

2.The max temperature of heating furnace can reach 520ºC. It adopts digital temperature controller. The

temperature control accuracy can reach ±5ºC.

3. It can do four sample determinations concurrently. The test efficiency is high.


Specifications:

Product nameGD-30011 High Quality Carbon Residue Tester (Electric Furnace Method)
Power supplyAC (220±10%) V, 50Hz
Heating modeElectric furnace
Heating power1150W (230W*5) in total
Temp. Control range(0~520)ºC
Temp. Control accuracy ±5ºC
Test furnaceOne furnace with four holes
Ambient temperatureRoom temperature ~ 35ºC
Relative humidity ≤85%
Maximum power consumption1300W
Dimension350mm*360mm*365mm

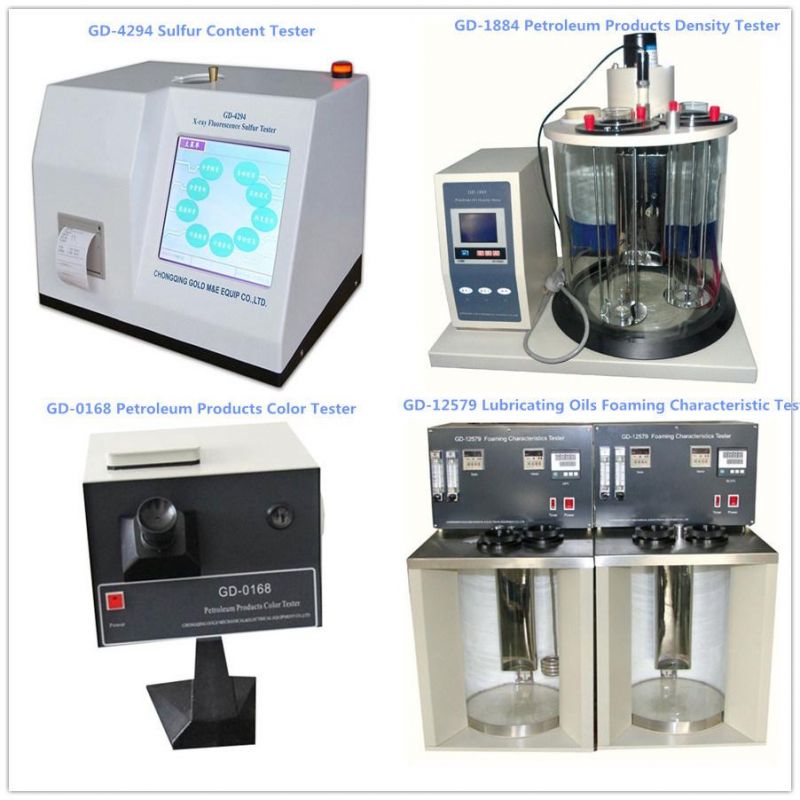

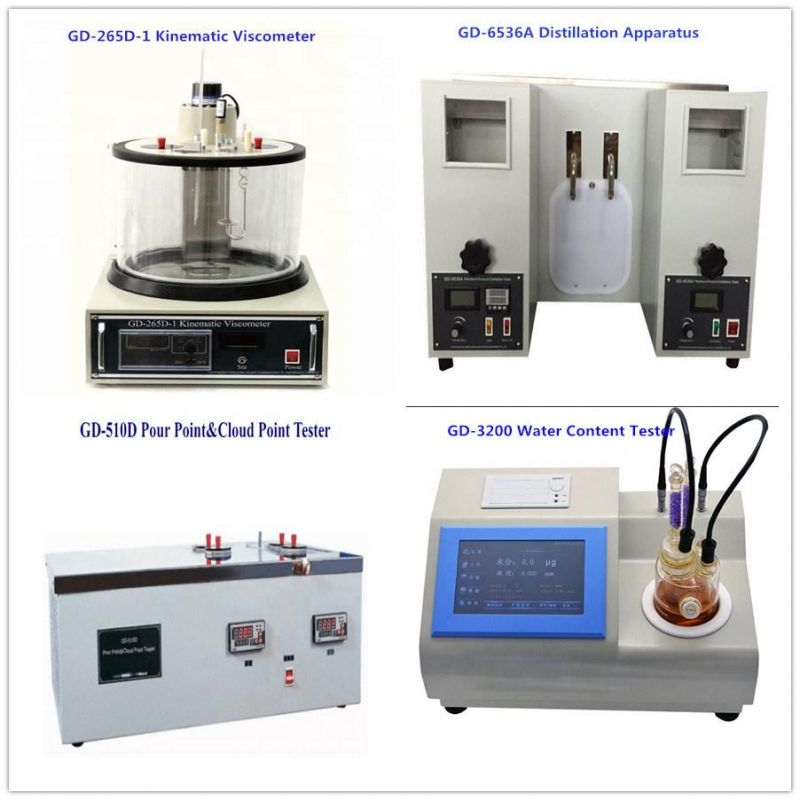

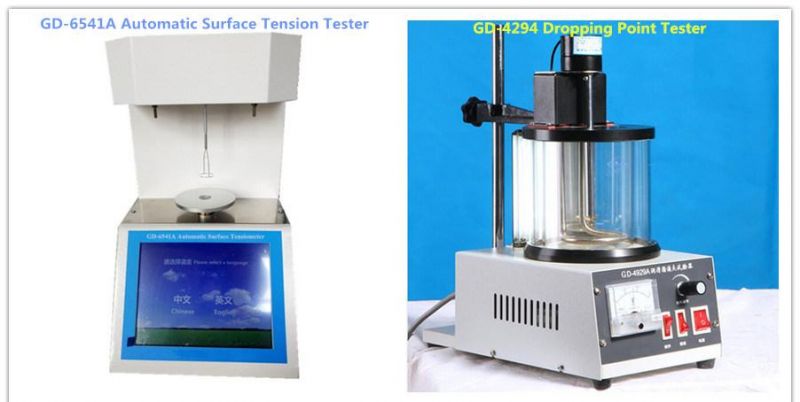

Other Petroleum Products Testing Instrument:
Carbon Residue Content Tester by Electrical Furnace Method
Carbon Residue Content Tester by Electrical Furnace Method
Carbon Residue Content Tester by Electrical Furnace Method
Carbon Residue Content Tester by Electrical Furnace Method

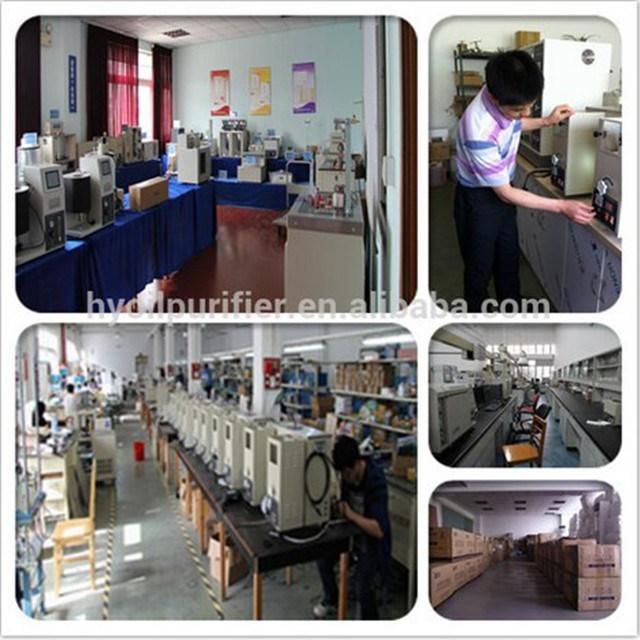

Company  Information:



Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.



We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .


Carbon Residue Content Tester by Electrical Furnace Method

Carbon Residue Content Tester by Electrical Furnace Method
