• Model NO.：GD-265D-1
• Sample Quantity：4
• Timing Function：Yes
• Auto-Calculate and Print：No
• Size：530*400*670mm
• Transport Package：Wooden Case for Gd-265D-1
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

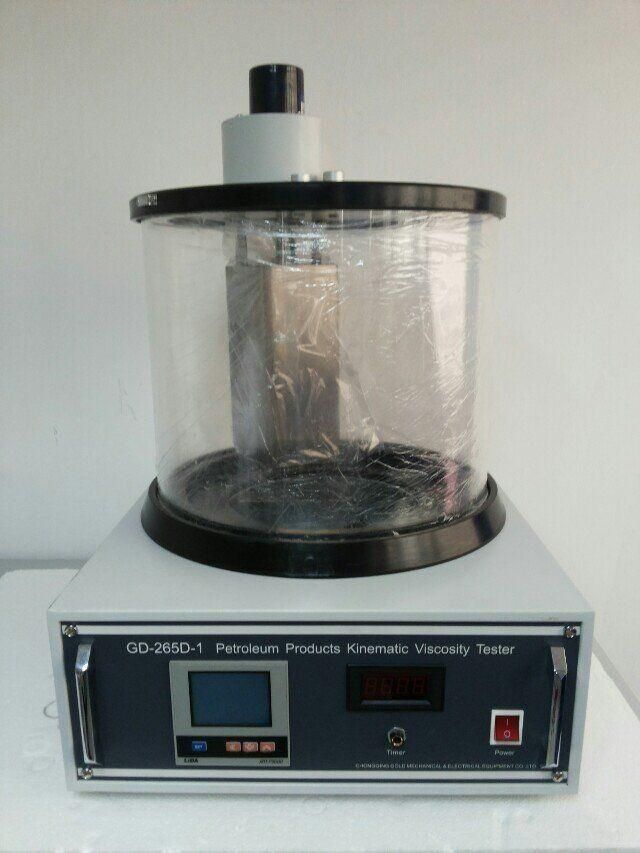

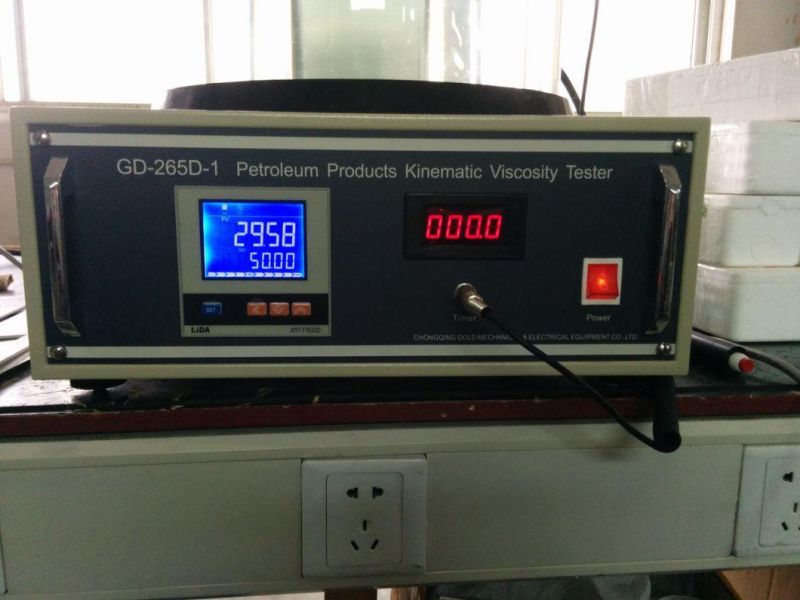

Product nameGd-265D-1 Petroleum Products Kinematic Viscosity Testing InstrumentPower supplyAC 220 ± 10 %, 50 Hz.Heating power1000W(auxiliary heating), 600W(temperature control heating)Stirring motor6 W, 1200 RPMTemperature rangeAmbient to 100.0ºC.Temperature control accuracy±0.01ºCTimer0.0s~999.9sConstant temperature bath20L, double shall structureAmbient temperature-10ºC~+35ºCRelative humidity<85%Maximum power consumption.1800WCapillary viscometer tubes(Pinkevitch viscometer)7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mmDimension530*400*670mm(Bath is included)


Note: This instrument is equipped with 7 pieces of Pinkevitch viscometer tubes. We can customize instrument equipping with Ubbelohde viscometer tubes or Cannon-Fenske Opaque(or Routine) Viscometer tubes according to customer's requirements.



Related Products:

Model

GD-265B

GD-265C

GD-265D-1

GD-265G

GD-265H

GD-265H-1

Range

ambient~ 100ºC

ambient~ 100ºC

ambient~ 100ºC

amboent~-70ºC
with compressor for refrigeration

ambient~ 100ºC

ambient~ 100ºC

Temp. Control precision

±0.1ºC

±0.1ºC

±0.01ºC

±0.1ºC

±0.01ºC

±0.1ºC

Temp. control method

continuous

continuous

continuous

continuous

continuous

continuous

Single/ Double glass tank

S

D

D

S

D

S

Samples quantity

2

4

4

2

4

2

Timing function

N

N

Y

N

Y

Y

Automatic calculate and print

N

N

N

N

Y

Y



Detail Images:




Company  Information:

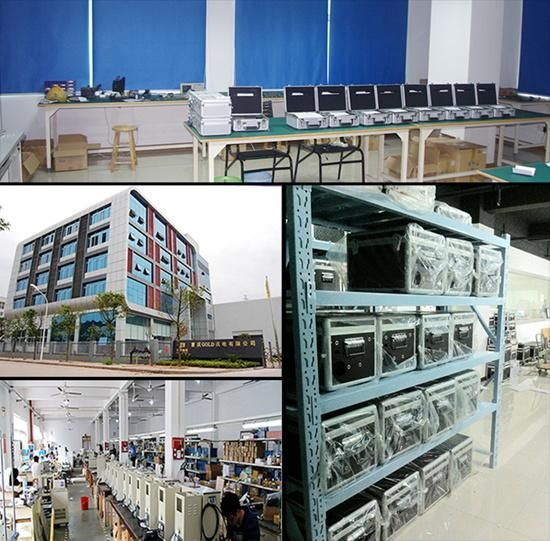

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
