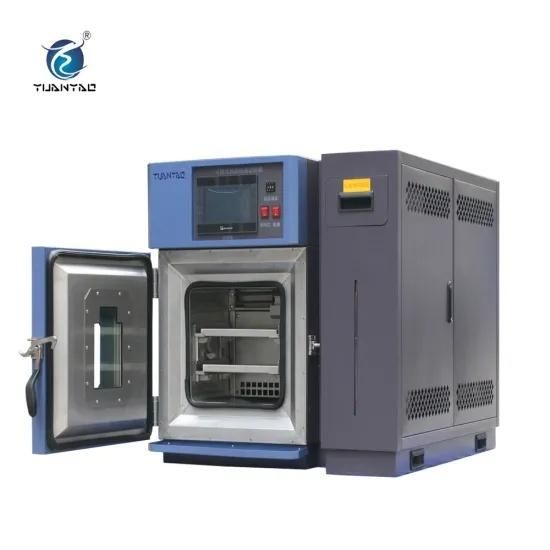

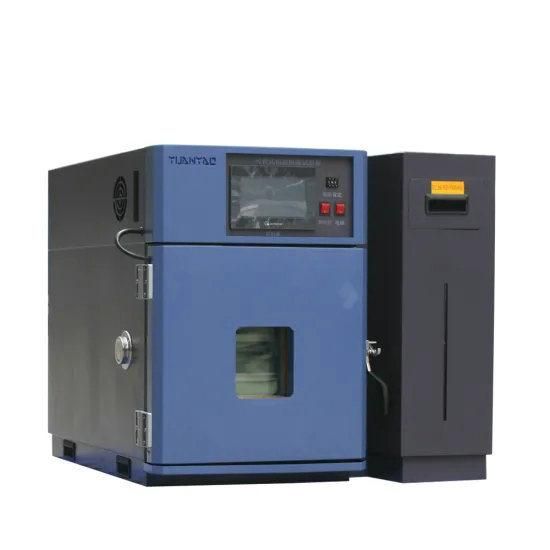

Small Lab Bench Top Humidity Climate Chamber

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Power Supply：1 Phase 220V 50Hz
  • Certification：CE
  • Warranty：1 Year
  • Inner Chamber Size：300wx300hx250d mm
  • External Chamber Size：830wx725hx968d mm
  • Temp. Range：-40~150c

Base Info

  • Model NO.：YTH-22
  • Humi. Range：20%~98%Rh
  • Inner Chamber Material：304 Stainless Steel Plate
  • External Chamber Material：Cold Rolled Sheet with Powder Coating
  • Insulation Material：PU
  • Shelf Quantity：2PCS
  • Cable Port Diameter：50mm
  • Controller：Touch Screen
  • Average Heating and Cooling Rate：3c,Min, 1c,Min
  • Circulation System：Centrifugal Fan Air Circulation System
  • Heating System：Stainless Steel High-Speed Heater
  • Refrigeration System：Compressor+Finned Evaporator+Air Cooling Condenser
  • Customization：Available
  • Transport Package：Strong Wood Carton
  • Specification：CE
  • Trademark：Yuanyao
  • Origin：Guangdong, China(Mainland)
  • HS Code：8419899090
  • Production Capacity：100sets,Month

Description

Small Lab Bench Top Humidity Climate ChamberSmall lab bench top humidity climate chamber, is used for material performance test under different environment, such as heat, cold, moisture, heat and moisture, mainly applied in electronics, electrical appliances, mobile, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other industries.
Features:
 Small Lab Bench Top Humidity Climate Chamber1.Touch screen controller, can support 5 languages
2.Automatic water filling(optional).
3.Access to PC remote control and monitoring.
4.Customization services.
5.With national patents.



Specification:
Model: YTH-22
Inner chamber size: 300Wx300Hx250D mm
External chamber size: 830Wx725Hx970D mm
Temp. range: -40~+150C
Humi. range: 20~98%RH
Temp. humi. fluctuation: +/-0.3C, +/-0.5%RH
Temp. humi. uniformity: +/-2C, +/-3%RH


More detail of temperature humidity climate test chamber

-70 Degrees Low Temperature Humidity Climate Test Chamber

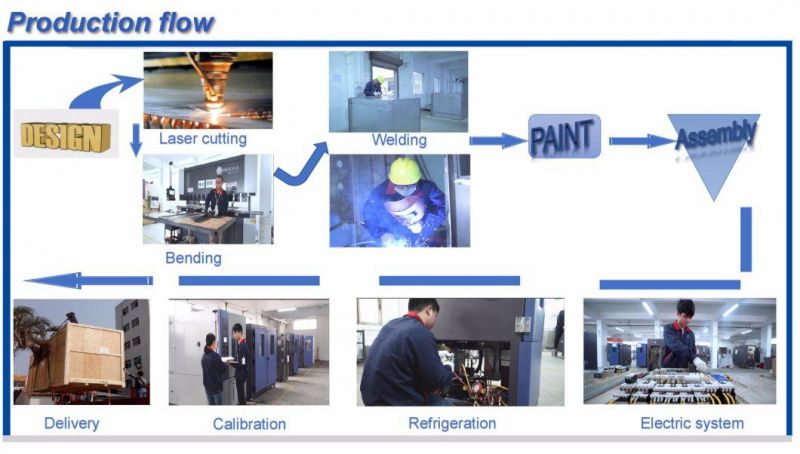

Guangdong Yuanyao Production Line:

1. We have independent workshops, they are consisted of material bending and welding area, machine assemble area, electric system area, cooling system area, debugging area and ready made product area.

2. We produce in strict accordance with international safety standard.

3. Many stock spare parts can satisfy customer's urgent requirement.

-70 Degrees Low Temperature Humidity Climate Test Chamber
Yuanyao profile
-70 Degrees Low Temperature Humidity Climate Test Chamber
-70 Degrees Low Temperature Humidity Climate Test Chamber
-70 Degrees Low Temperature Humidity Climate Test Chamber
-70 Degrees Low Temperature Humidity Climate Test Chamber

-70 Degrees Low Temperature Humidity Climate Test Chamber

If you want to know more about the temperature humidity test chamber,please feel free to conatct us.
