• Model NO.：DH-TR-01
• Delivery Time：5-7 days
• After-sale Customer Service：Yes
• Testing Before Deliver：Yes
• Transport Package：Standard Exporting Wooden Package
• Specification：530*250* 650mm
• Trademark：DahoMeter
• Origin：Dongguan, Guangdong
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DH-TR-01 Delivery Time 5-7 days After-sale Customer Service Yes Testing Before Deliver Yes Transport Package Standard Exporting Wooden Package Specification 530*250* 650mm Trademark DahoMeter Origin Dongguan, Guangdong HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

Room Temperature Tape Sticky Tester / Tape Retentivity Meter / Testing Machine / Equipment / Instrument



Full automatic normal temperature adhesive products sticky tester/Room temperature tape retentivity tester is to stick the tape to the test board, and be hung the standard load at the lower end. After a period of time, the tape is measured for the slide distance or the tape sticking time to assess the durability of the adhesive tape.



Application

Applicable to the hold viscosity testing for all kinds of sticky products such as pressure-sensitive adhesive tapes, medical patches, self-adhesive labels, protective films, etc.



Design standards: CNS-11887,11888,PSTC-7,GB/T 4851



Parameters

Temperature: room temperature

Testing fixture: 5 groups.

Weight: 1KG (or specified)

Timer: 5 groups, 99999.9 hours

esting plate: 5 pieces.

Loading steel plate: 5 pieces

Standard pressure roller: 2000g±50 g

Weight: 1000±10g (including loading plate weight)

Outline dimension: (L×W×H) 530×250×650

Machine weight: 32kg





Testing principle

The test plate with glued specimens is hung vertically on the test stand, the weight of the specified weight is hung at the lower end, and the displacement of the sample after a certain period of time, or the time when the sample is completely detached, is used to represent the resistance to pull off of glued specimens.

The instrument complies with a number of national and international standards: GB 4851, ASTM D3654, JIS Z0237





Features

1.Test boards and test weights designed strictly in accordance with standards ensure the accuracy of test data

2.Controlled by microcomputer, with operation panel, LCD display, convenient for users to conduct test operations and data viewing quickly.

3. five test stations can be simultaneously performed multiple test items

4.automatic timing, locking and other functions to further ensure high accuracy of the test results

 Packaging & Shipping:

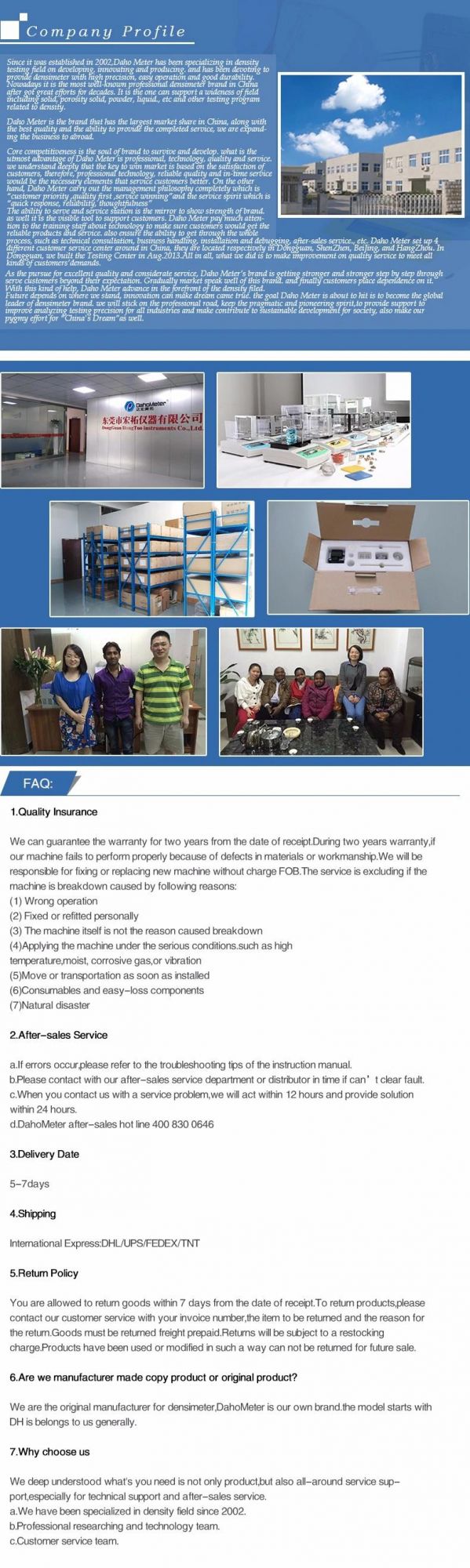

Company Information:
