Product Description

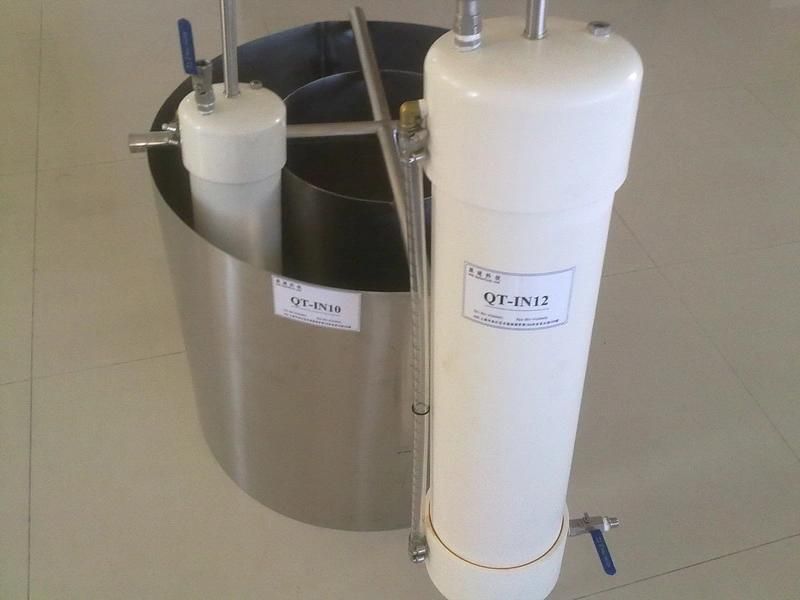

Soil Double Ring Infiltrometer Water Infiltration Device

This equipment has open ends and it is used to measure the water infiltration rate into the soil.


The standard device includes several sets of stainless steel rings with different diameter, which can deal with several measurements at the same time to get accurate and reliable results. When vertical water flows to the edge, the outer ring of the infiltrometer will play a role in isolation. The water in the inner ring flows vertically, thus the measurement only occurs in the inner ring. Press these two rings into the soil a few centimeters deep by shock absorbing hammer. Because the inner and outer rings are filled with water, the water actually infiltrates vertically from the inner ring into the soil. To achieve a good result, the following factors that may affect the measurement should be taken into account: surface vegetation, soil density, soil temperature and soil layers. The best measurement results are derived from on-site water holding capacity.

Water added in the outer ring is to ensure that the water in the inner ring seeps into the ground vertically straight into the soil instead of spreading out. If the water at the outer ring decreases too fast, water can be added. However, water at the inner ring cannot be added after the measuring process started.

Specifications:
Diameter of small ring: 30cm
Volume of small ring: 3000ml
Diameter of large ring: 60cm
Volume of large ring: 10000ml
Height of double ring: 50cm
Material of double ring: stainless steel
Material of Mario tube: PVC
