• Model NO.：GD-4508C
• HS Code：9031809090
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. GD-4508C HS Code 9031809090 Production Capacity 200 PCS/Month

Product Description

GD-4508C ASTM D113 High Performance Standard Ductilometer for Bitumen Ductility Machine



Introduction:

The Bitumen Ductilometer is designed and made as per national standard GB/T 4508-2010 Standard Test Method for Ductility of Bitumen and T0602-2011 Asphalt Ductility Test in JTG E20-2011 in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D113 Standard Test Method for Ductility of Bituminous Materials.
The Bitumen Ductility Machine is suitable to determine the distance to which it will elongate before breaking when two ends of a briquette specimen of the material are pulled apart at a specified speed and at a specified temperature.


Features:

1. It adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.
2. It adopts high-accuracy digital temperature controller.The resolution is 0.01ºC and accuracy is 0.1ºC.
3. It adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform.
4. Three specimens. Suitable to the test standard for asphalt ductility.
5. The specimen can return and positioning automatically after the determination.
6. It adopts membrane panel and LCD temperature controller. Water-proof, durable and easy to clean.


Specifications:

1. Power supply:  AC220V(-5%~+10%),50Hz
2. Measurement distance:  1.5m(±10mm)
3. Heating mode:   Electric heater
4. Heating power:  3000W
5. Liquid circulation:   By magnet circulation pump
6. Temperature control range:  (5~50)ºC,adjustable. Resolution is 0.01ºC
7. Temperature control accuracy:   ±0.05ºC.
8. Tensile speed:   10mm/min and 50mm/min, two grades
9. Measurement accuracy:   ±1 mm.
10. Ductility display: Digital display after data processed by a single chip machine.
11. Refrigeration: Compressor 1.25P, input power is 950W
12. Ambient temperature:  (-10~+35)ºC
13. Relative humidity:  ≤85%
14. Maximum power consumption:  4100W
15. Overall dimension:  2365mm×520mm×1000mm

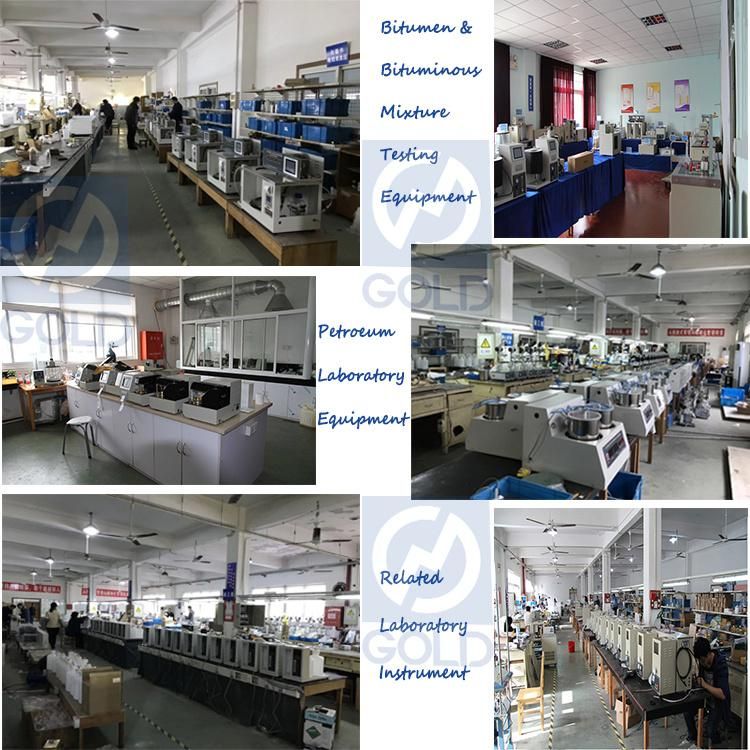

Factory Show:
