4 Terminal Earth Resistence Measure Soil Resistivity Meter
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Power Source:Battery
- Product Name:Earth Resistence Measure Soil Resistivity Meter
- Measuring Range:0.05Ω-209.9KΩ
- Test Current Maximum:80mA
- Transport Package:Plastic Box and Carton
- Trademark:C-Tech
Base Info
- Model NO.:TP4300B-4
- Origin:China
- HS Code:90248000
- Production Capacity:500,Month
Description
Basic Info.
Model NO. TP4300B-4 Origin China HS Code 90248000 Production Capacity 500/MonthProduct Description

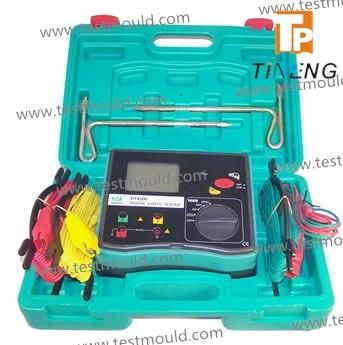

Product Descriptionsoil resistivity meter, digital earth resistance tester
√ 4 pole earth resistance measurement 0 to 209.9kΩ with min. resolution 0.001Ω
√ Auto ranging soil resistivity measurement 0 to 1999kΩm
√ Series interference voltage Ust(AC only) 0~50.9Vrms
√ Measures frequency 400~500Hz
√ Measureing Voltage Um optional/auto-selected 10Vrms 94Hz, 105Hz, 111Hz, 128Hz
√ Test current maximum 80mA
√ Advance filtering method based on FFT(fast fourier transform) reduces noise interference
√ Compensation for residual resistance Rk
√ Data Memory 1000 sets
√ Conforms to CATIV 150V, CATIII 300V
