• Model NO.：YL-PIT
• HS Code：90248000
• Production Capacity：100,Month

Basic Info.

Model NO. YL-PIT HS Code 90248000 Production Capacity 100/Month

Product Description

YL-PIT (W)(Pile Integrity Tester (wireless))

Application

Pile integrity test by low strain reflected wave method



Features

1. Unique smart voice function for your easy operation.

2. Big screen for easy wave viewing.

3. Small size and super light weight design improves holding comfort.

4. Power-efficient hardware platform for excellent battery performance.

5. The operation wizard makes the test easier and more efficient.

6. High accuracy data acquisition, high signal-to-noise ratio.

7. Built-in high sensitivity antenna for stable wireless communication.

8. Your first choice in severe environment.



Specifications



Model	YL-PIT(W)
Control unit	Low power embedded industrial processor
Voice function	Smart voice prompt
Storage capacity	16G(can be extended to 128G)
Power mode	Rechargeable lithium battery≥8 hours
Operation Mode	Tablet
Data transfer mode	USB2.0
Sampling interval	5μs ~ 200μs
Record size	1024 points
Sampling resolution	24-bit A/D
Signal bandwidth	5Hz~12kHz
System noise	<30μv
Dynamic range	≥100dB
Channel	1
Sensor	Piezoelectric accelerometer/Speedometer
Operation temperature	-20ºC ~ +55ºC
Dimension	132×183×26mm
Weight	About 0.5kg

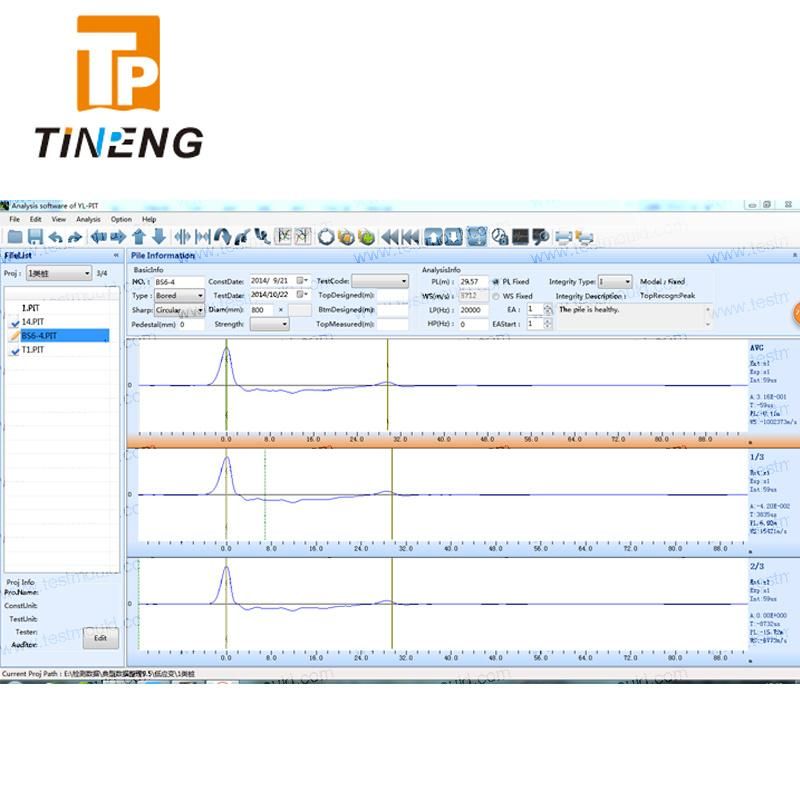

Software

1. Upgraded wave viewing function allow you to zoom in/ (or) out, compress (or) expand, and rotate the wave for a closer view.

2. Analysis assistant function provides useful tools, such as digital filter, exponential amplifier, integration, differential and frequency analysis.

3. Comprehensive summary and detailed wave analysis can be edited in a flexible way.

4. Batch note and smart auto-fill functions improve work efficiency.

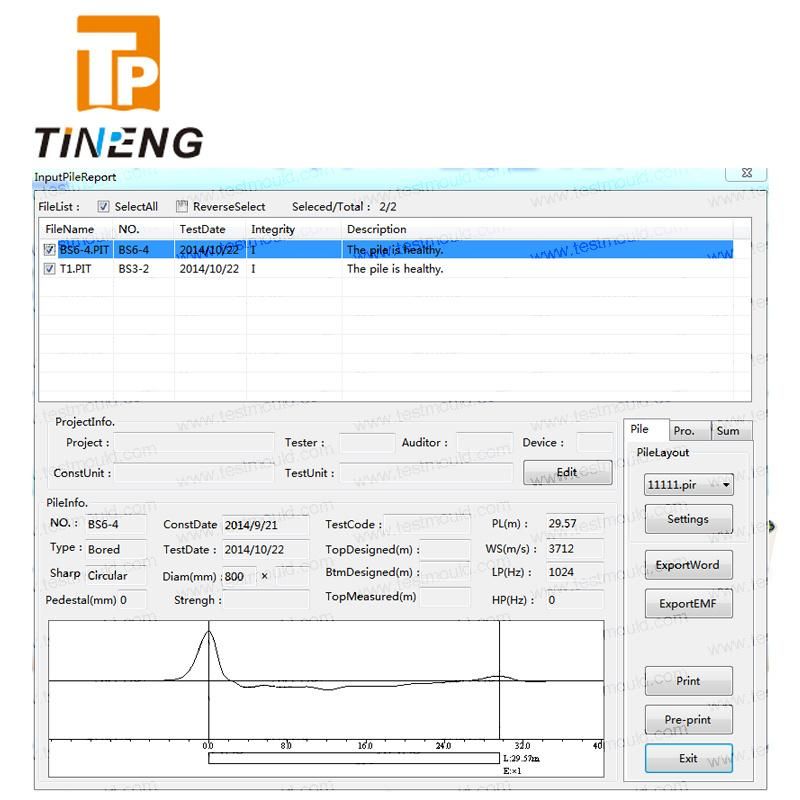

5. Single pile report, multiple-pile (site) report and Multiple site (Project) report with wave diagrams are easy to produce and can be exported.
