Test Instrument

Portable Ultrasonic Partial Discharge Detector

HV Hipot Electric Co., Ltd.
  • Type:Universal Testing Machine
  • Load Way:Electronic Load
  • Loading Method:Dynamic Load
  • Display:Digital
  • Control:Computer Control
  • Weight:0-100Kg

Base Info

  • Model NO.:GDPD-300uF
  • Power Source:AC220V
  • Detection Frequency Band:AE:20~200kHz; TEV: 3~100MHz
  • Warranty:1 year
  • Transport Package:Standard Export Wooden Box
  • Specification:ISO
  • Trademark:HV Hipot
  • Origin:Wuhan, China

Description

Host, sensor, AC adapter, connecting cable & transport box.

Name

Application

Appearance

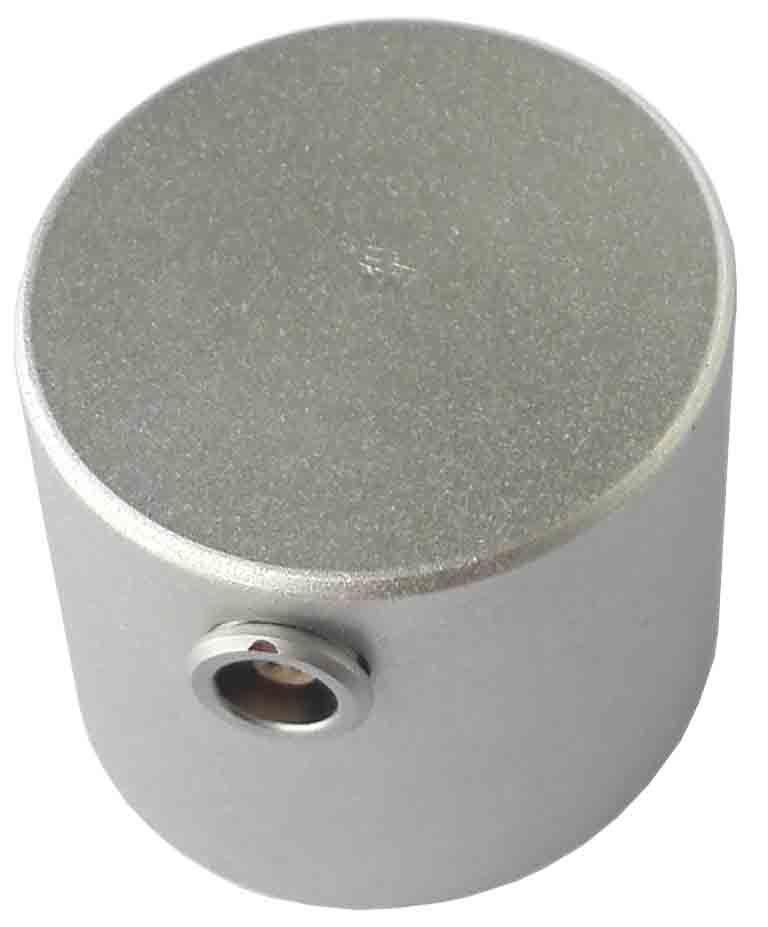

AE & TEV sensor (2-in-1)

 For switchgear

Portable Ultrasonic Partial Discharge Detector


AE sensor for transformer (optional)

For transformer

          Portable Ultrasonic Partial Discharge Detector

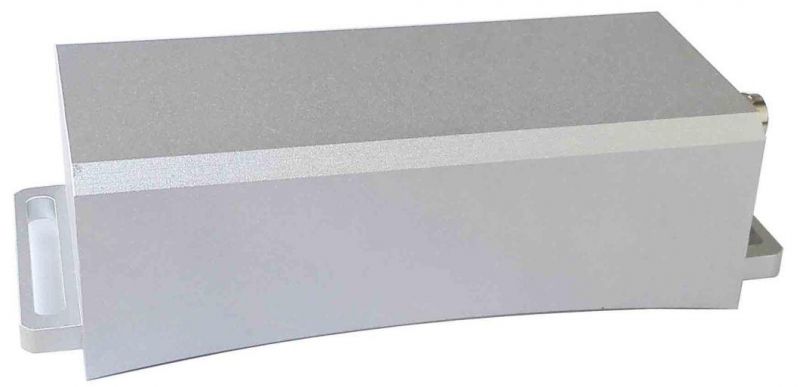

UHF sensor (optional)

For GIS

Portable Ultrasonic Partial Discharge Detector

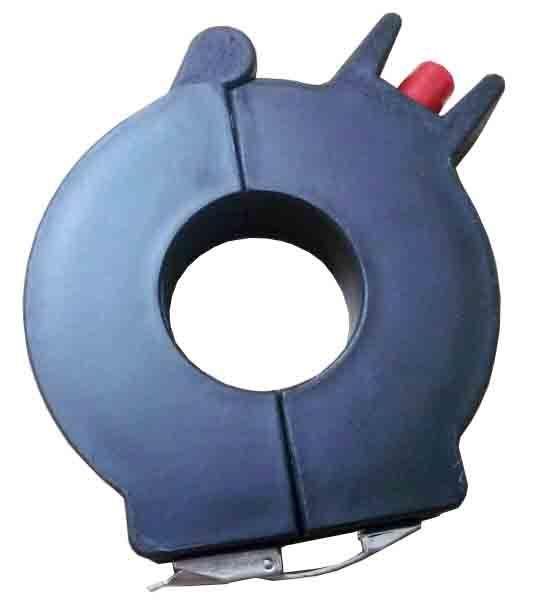

HFCT (optional)

For HV cable

Portable Ultrasonic Partial Discharge Detector

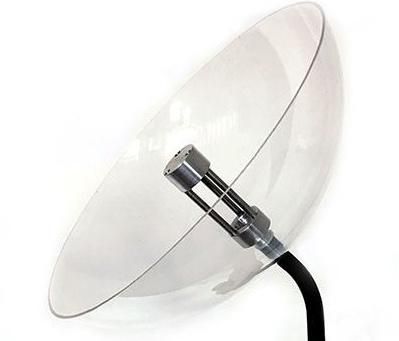

Wave collector (optional)

 For overhead line and cable

Portable Ultrasonic Partial Discharge Detector
