• Model NO.：WDW-01
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Stock：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

>Plastic

>Film

>Fiber and thin wire

>Adhesive

>Foam material
>Tape

>Elastomer

>Connector

>Biomaterials

>Wood and paper products

>Metal foil

>Metallic line



>Below medium strength metal

>Oil bearing
>Ceramic

>Part

>Fastener

>Composite material



HongTuoModelWDW--005-01-02-05-1-2-5-10CapacityKN0.05kN0.1 kN0.2 kN0.5kN1 kN2kN5kN10KNKG5kg10kg20kg50kg100kg200kg500kg1000kglb        StructureDouble rail structureThree double rail structureUnit switchingG,Kg,lb,N,KNDisplacement unit switchingInch cm mmTest machine level0.5classEffective force range0.4%~100%FSForce accuracyWithin ±0.5%Force decomposition1/200 000Force Power magnificationX1,X2,X5,X10,X20,X50,X100.,etc.Seven-speed automatic shiftingDisplacement resolution0.005mmDisplacement accuracyWithin ±0.5%Deformation measurement range2%~100%FSDeformation indication accuracyWithin ±0.5%Large deformation measurement range(0~800)mmLarge deformation resolution0.005mmLarge deformation indication error limitWithin ±5%Maximum test speed500mm/min;optional maximum 1000mm/minMinimum test speed0.001mm/minSpeed accuracyWithin ±0.5%

Beam travel

Measuring height

standardNo grip testing stroke:920mm;With grip testing stroke:320mmoptionalNo grip testing stroke:1320mm;With grip testing stroke:320mmFixture configurationOne set of tensile grip;can choose other gripsReturning methodManual or automatic selection, automatically return after the test ends or manually return to the initial positionStop method1.Maximum break value automatically stop 2.Upper and lower limit safety setting stopSafety devices1.Mechanical limit switch protection 2.Emergency stop switch emergency brakeOverload protectionOver 10% of maximum load, automatic machine protectionAccessories1 power cord; 1 test software program CD; 1 data cable; 1 manual; 1 certificateOptional accessoriesThree double rail structure; anti-splash device (protective door); computer; printer; small deformation metal extensometer, large deformation displacement trackerPowder supply220V.AC/ 50HZ; 110V.AC/60HZMain host size/ weightLength*Width*Height:450mm*400mm*1160mm / Around 50KGPacking size / weightLength*Width*Height:550mm*500mm*1400mm / Around 73KG

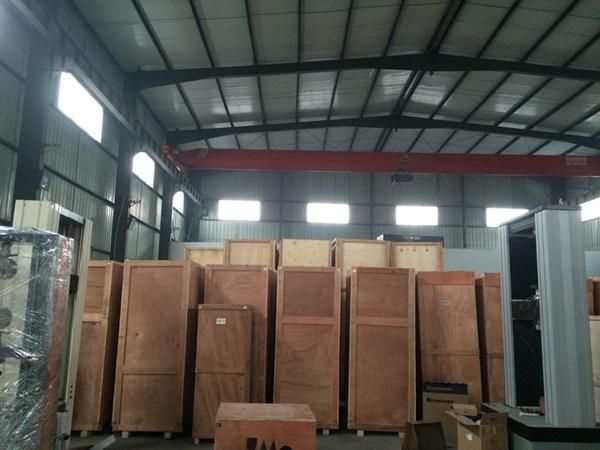

Packaging & Shipping

Company Information

We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.





Certification
