• Model NO.：Max Tester 710B
• Customized：Customized
• Trademark：DAYTAI
• Origin：Japan
• Production Capacity：10000,Month

Basic Info.

Model NO. Max Tester 710B Customized Customized Trademark DAYTAI Origin Japan Production Capacity 10000/Month

Product Description

★Description

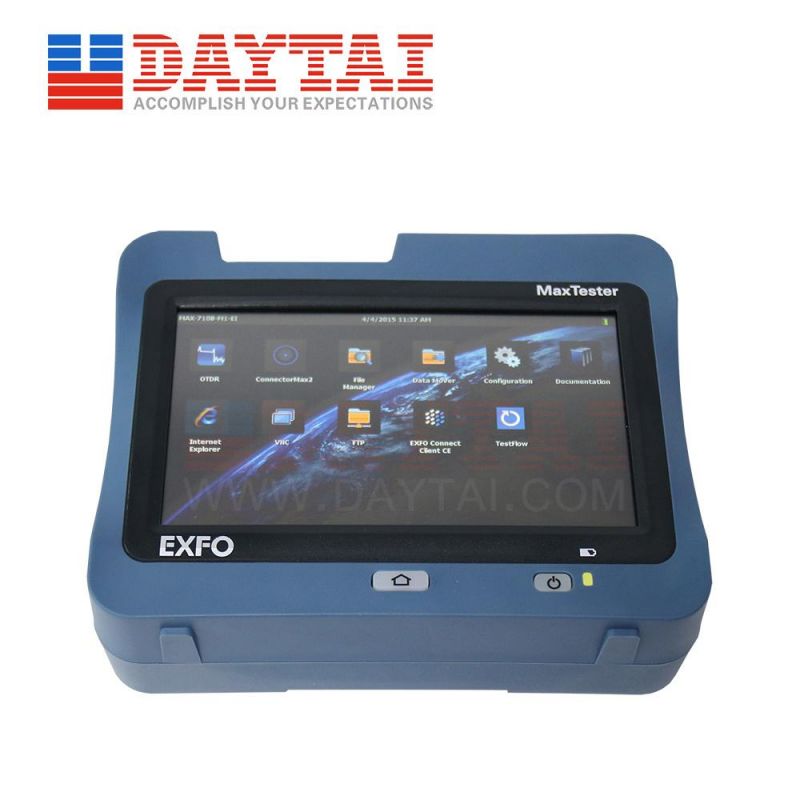

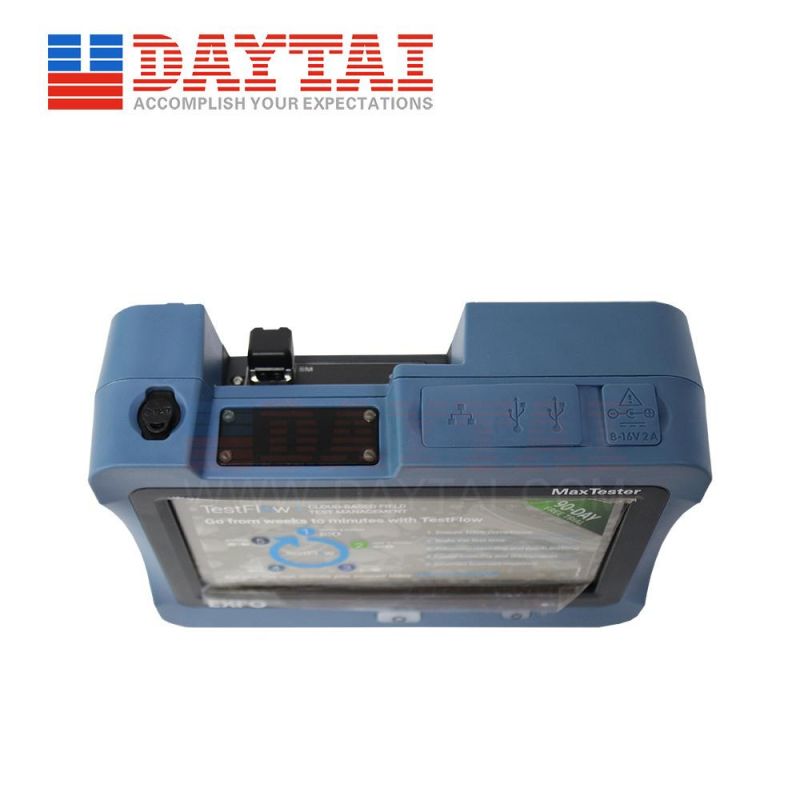

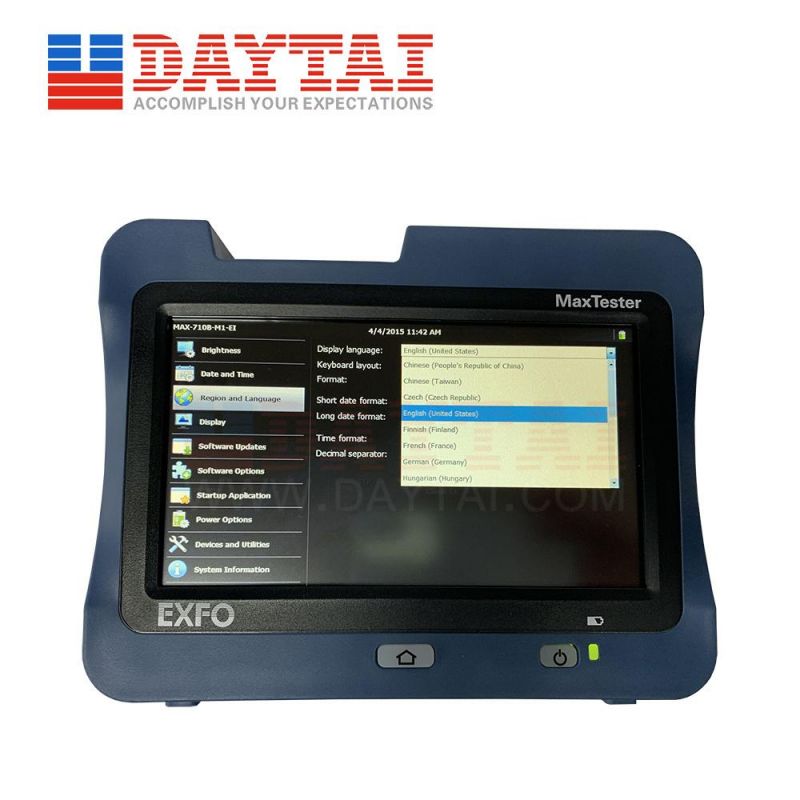

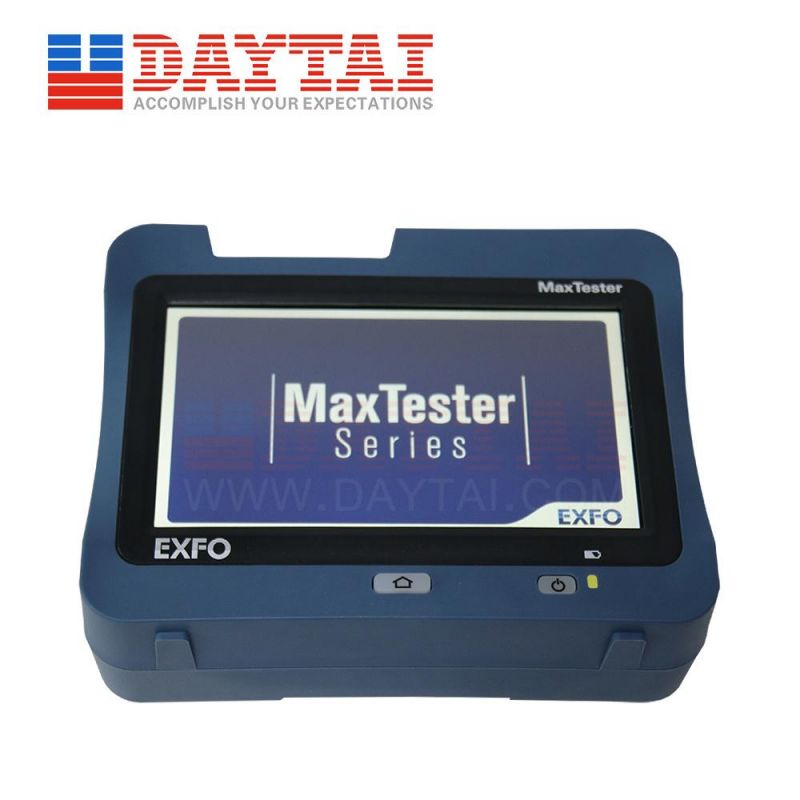

The MAX-710B is the first tablet-inspired OTDR that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen, the most efficient handheld display in the industry, it delivers an unprecedented user experience. Its intuitive and Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.
The Max-710B is a genuine last-mile OTDR from the world's leading manufacturer. It delivers EXFO's tried and true OTDR quality and accuracy along with the best optical performance for first-time-right results, every time. It is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).
In addition to its amazing 12-hour battery life that will never let you down, it offers plug-and-play hardware options, like the VFL, power meter and USB tools.
Ultimately, the Max-710B is small enough to fit in your hand and big enough to fit all your needs!
★Features
⊙12-hour autonomy
⊙Dynamic range of 30/28 dB
⊙Dead zones: EDZ 1 m, ADZ 4 m
⊙Rugged design built for outside plant
⊙Handy, lightweight, powerful, tablet-inspired design
⊙7-inch, outdoor-enhanced touchscreen - the biggest in the handheld industry
★Applications
⊙CATV/HFC network testing
⊙FTTA-fiber DAS installations
⊙Short access network testing
⊙FTTx last-mile installation and troubleshooting


★Specification

TECHNICALSPECIFICATIONS	MAXTESTER 710B
Display	178 mm (7 in) outdoor-enhanced touchscreen, 800 x 480 TFT
Interfaces	Two USB 2.0 ports RJ-45 LAN 10/100 Mbit/s
Storage	2 GB internal memory (20 000 OTDR traces, typical)
Batteries	Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
Power supply	Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Wavelength (nm) b	1310/1550
Dynamic range (dB) c	30/28
Event dead zone (m) d	1
Attenuation dead zone (m) d	4
Distance range (km)	0.1 to 160 km
Pulse width (ns)	5 ns to 20 us
Linearity (dB/dB)	±0.05
Loss threshold (dB)	0.01
Loss resolution (dB)	0.001
Sampling resolution (m)	0.04 to 5
Sampling points	Up to 256 000
Distance uncertainty (m) e	±(0.75 + 0.005 % x distance + sampling resolution)
Measurement time	User-defined (60 min. maximum)
Reflectance accuracy (dB)	±2
Typical real-time refresh (Hz)	3

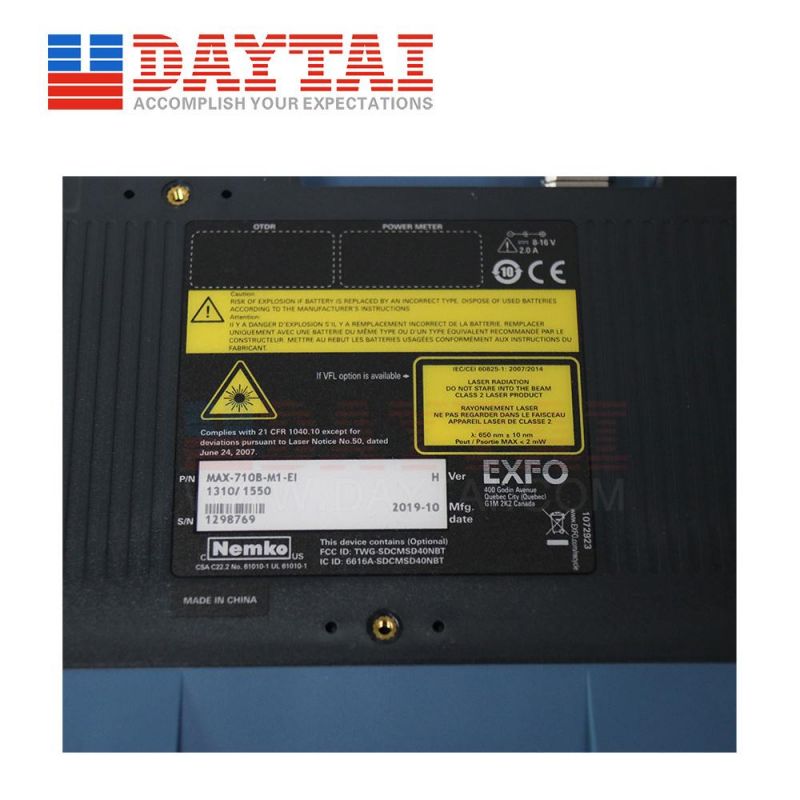

Laser safety	1M
