• Model NO.：GD-3536D
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Power Supply：AC(220±10%)V, 50Hz.
• Heating Device：Quartz Tube Furnace Heating, No Naked Fire
• Test Flame Applicator：It Applies The Test Flame Automatically.
• Thermometer：(-6~400)&Ordm
• Igniting Device：1.Ignition Source: Coal Gas 2.Lame Diameter Is 3.2
• Ambient Temperature：(-10-50)ºC
• Relative Humidity：≤85%
• Maximum Power Consumption：650W
• Transport Package：Wooden Case
• Specification：350mm*290mm*350mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC(220±10%)V, 50Hz2. Flash point determination:  Range:Ambient to 400ºC

Repeatability: ≤8ºC

Reproducibility:≤17ºC

 Accuracy:0.1ºC

3. Heating rate: Correspond with GB/T3536 and ASTM D924. Igniting mode: Electric ignition, Gas flame diameter: 3.2mm~4.8mm5. Ambient temperature:(10~40)ºC6. Relative humidity:≤80%7. Maximum power consumption:500W8. Dimension:520mm×380mm×310mm

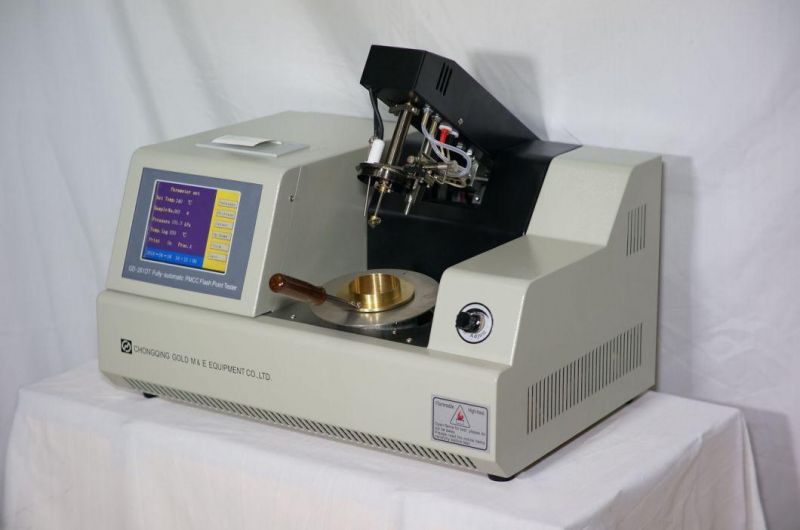

I. Main technical features



1.This instrument adopts LCD screen to display and full English man-machine interface. It can preset expected flash point temperature,

sample mark number, barometric pressure and other parameters.It has menu prompt and input guide.

2.It adopts simulation tracking to display the function curve of temperature rising and test time.

It has the functions of English mis-operation prompt,test date,test time and other parameters.

3.With standard RS232 communication port(can connect with external USB),can store 10 creen,

120 groups of history data,be connected with computer to save bulk-storage memory for a long time.

4. Automatically calibrate the effect of atmospheric pressure to test and calculate the corrected value.

5. Differential coefficient detection.Automatically correct the system deviation.

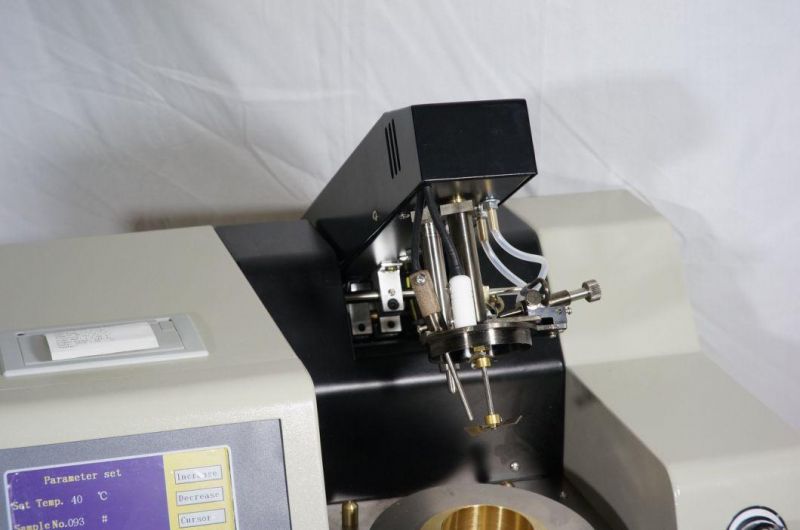

6. Automatically open the lid,detect the flash point and print test data.The test arm automatically rise up and lower down.

7.Reasonable design, safe and convenient to operate,electronic igniting gas flame,forced cooling system

(note.the manual igniting button on the left side of instrument cabinet)





Open Up Flash Point Tester Selection List

ItemGD-3536GD-3536-1GD-3536ATGD-3536DTPicture    ApplicationSuitable to detect lubricants,heavy oil,asphalt and the flash point
above 79°fuel oilTemperature
control rangeRoom
temperature to
400ºC
thermometer:(-6
~400)ºC,mark
scale 2ºCRoom temperature to 400ºC accuracy 0.1ºC,PT100
temperature sensorAutomaticityAutomatical
scanning Automatical
scanning,single chip
temperature
control,temperature
display,LCD Automatical
scanning,detecting,printing
data,testing arm lifting up and down
automaticallyStandard ASTM D92

• Exhibition

Brazil ANALITICA LATIN AMERICA 2017 2017 Photos Show

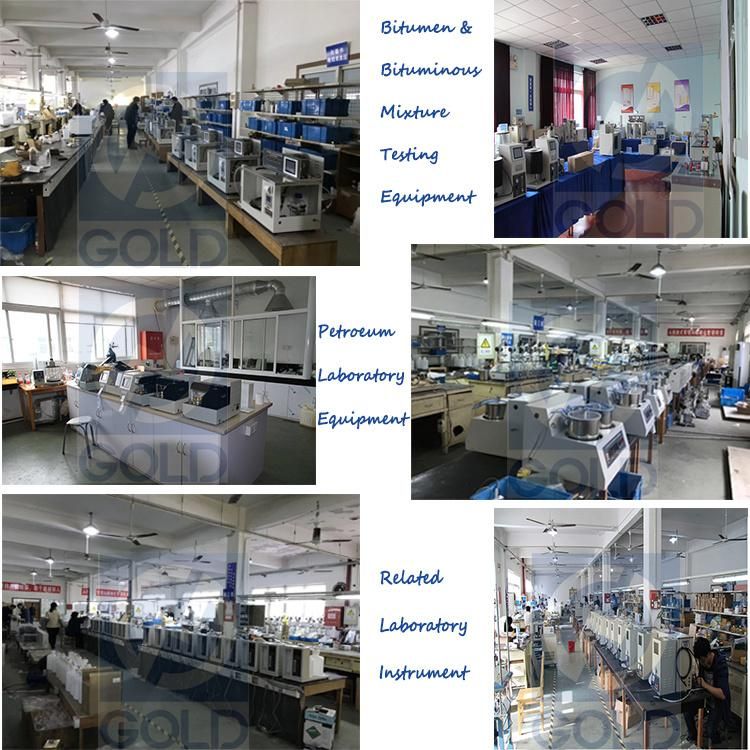

Workshop



Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits

and electrical testing equipment in China.Our products are sold to most countries in the world and they are highly

popular because our good quality and after-sale service.

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.



Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.



Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
