• Model NO.：GD-QX-D
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：210mm*350mm*400mm (Length * width * height)
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

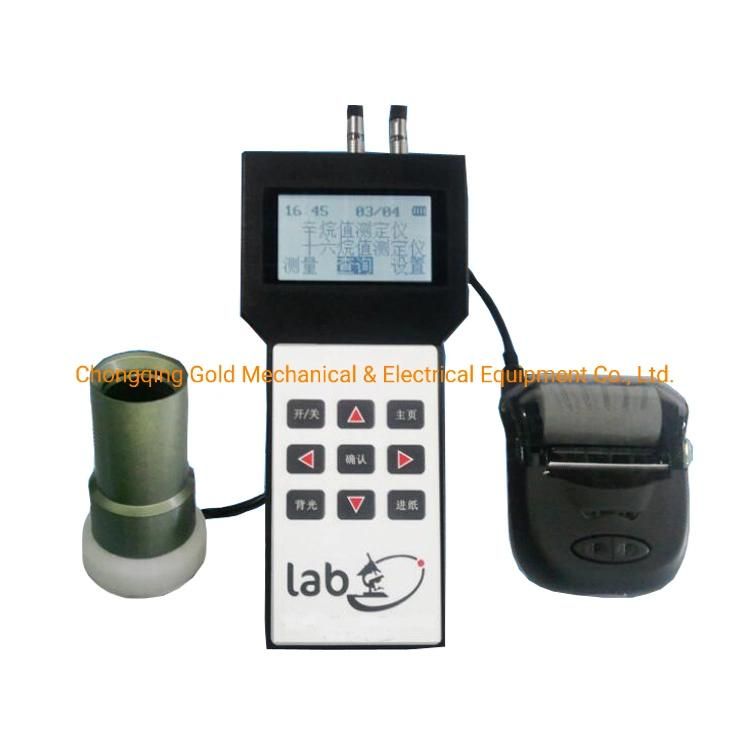

Measurement item:  motor gasoline and diesel

Measurement of octane reach standards

 ASTM D2699-86, ASTM D2700-86

Measurement of diesel's cetane reach standards

 ASTM D4737-03

Operation condition:

temperature of -10ºC~+40ºC, relative humidity

of 30%~81%R.H.,

barometric pressure of 64~106kPa.



The measurement unit of octane is ON (adjustable as users needed)



40-120



Permissible error of octane, per unit (max)



±0.5



Fluctuate range of octane, per unit (max)



±0.2



The measurement unit of cetane is CN (adjustable as users needed)



20-100



Permissible error of cetane, per unit CN (max)



±1

Fluctuate range of cetane, per unit CN (max)



±0.5

Measurement duration (second)



<20

Critical value for battery when voltage is too low, V



2.5

Monitor,mm(L×W×H)



224*106*40

Sensor,mm



60*100



Weight, Kg (max)



5



Operation duration (unit: hour)



15



Display



LED screen, printable result



Power consumption



30ma

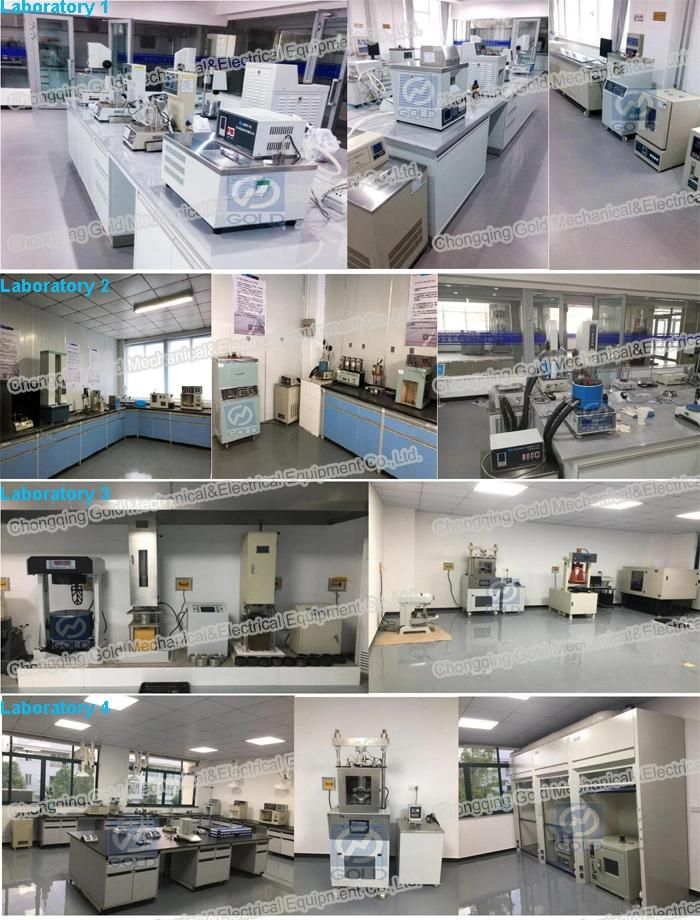

• Laboratory Program

• Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.
After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.

Brazil ANALITICA LATIN AMERICA 2017 2017 Photos Show







Packing & Delivery

Goods are packed in veneer case, which is firm and safe for oversea shipment.

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

 http://chinainstrument.en.made-in-china.com

If you want to know more information...

Please leave a message below and click " SEND "

Thanks for your time and attention!
