• Model NO.：GD-1122
• Cooling Method：Compressor Refrigeration
• Heating Method：Electric Heat Tube Heating
• Stirring Method：Motor Agitation
• Sample Unit：Double Hole
• Working Power：AC220V,50Hz
• Total Power：1600W
• Instrument Size：370mm*520mm*630mm
• Net Weight：36kg
• Transport Package：Plywood
• Origin：Chongqing China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-1122 Cooling Method Compressor Refrigeration Heating Method Electric Heat Tube Heating Stirring Method Motor Agitation Sample Unit Double Hole Working Power AC220V,50Hz Total Power 1600W Instrument Size 370mm*520mm*630mm Net Weight 36kg Transport Package Plywood Origin Chongqing China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

Coolant Analysis ASTM D1122 Specific Gravity Tester of Engine Coolant Hydrometer



Introduction:

The ASTM D1122 Specific Gravity Tester is developed in combination with national standards and the American Society for Testing Materials standards.
The ASTM D1122 Specific Gravity Tester adopts the density meter to determine the density or relative density of the engine coolant and its concentrated liquid.
The ASTM D1122 Specific Gravity Tester adopts a split structure, which is easy to operate and greatly improves work efficiency.


Features:

1. The transparent observation of the glass cylinder is convenient for operation.
2. Fully enclosed compressor refrigeration.
3. The cooling medium is circulated by a noiseless circulation pump.
4. It adopts the stainless steel electric heater.
5. It is split structure, easy to move.
6. There is a hole for adding cooling medium above the cold bath, if the medium is lost, it can be easily added at any time.
7. Imported Omron PID thermostat, digital display temperature, accuracy is 0.1ºC.
8. Overheating safety protection (with low water level alarm in the water bath), automatic water level regulator in the water bath.
9. Contact control box is very convenient.

Parameters:


Model	GD-F8022
Applicable standards	ASTM D1122,SH/T0068
Digital display temperature control	20C±0.2C
Cooling method	Compressor refrigeration
Heating method	Electric heat tube heating
Stirring method	Motor agitation
Sample unit	Double hole
Working power	AC220V, 50HZ
Total power	1600W
Instrument size	370mm*520mm*630mm
Net weight	36KG

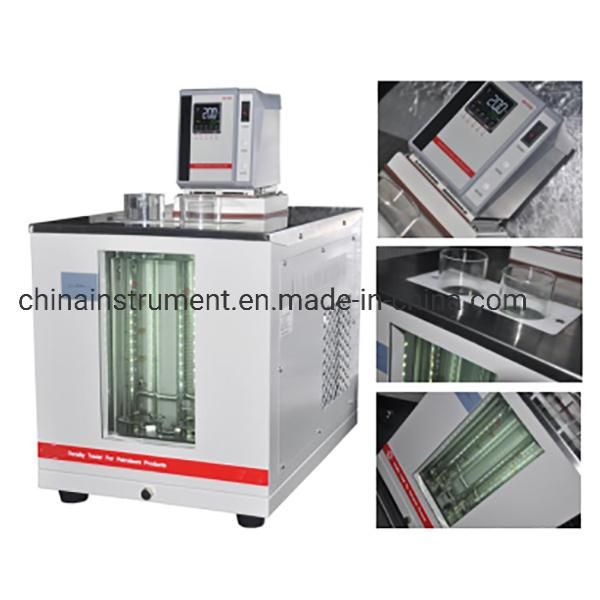

Real Picture of ASTM D1122 Specific Gravity Tester:
