• Model NO.：GD-4508C
• Tensile Speed：10mm,Min and 50mm,Min, Two Grades
• Measurement Accuracy：1 mm
• Ductility Display：Display in Real Time
• Ductility Record：by Touching Screen
• Transport Package：Wooden Case for ASTM D113 Asphalt Ductility Testin
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-4508C Tensile Speed 10mm/Min and 50mm/Min, Two Grades Measurement Accuracy 1 mm Ductility Display Display in Real Time Ductility Record by Touching Screen Transport Package Wooden Case for ASTM D113 Asphalt Ductility Testin Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

ASTM D113 Asphalt Ductility testing machine Ductilometer


Summary
ASTM D113 Asphalt Ductility testing machine Ductilometer is designed and made as per ASTM D113 Standard Test Method for Ductility of Bituminous Materials.

ASTM D113 Asphalt Ductility testing machine Ductilometer is suitable to determine the distance to which it will elongate before breaking when two ends of a briquette specimen of the material are pulled apart at a specified speed and at a specified temperature.



I. Main technical features
1. 10.1 inch 1024×600 coloured touch screen.
2. Full touch screen operation, convenient and fast.
3. High power compressor is adopted for refrigeration, with fast refrigeration speed.
4. 32-bit ARM microcontroller control, automatic display ductility data.
5. Shield type cold heat balance pressurization cycle system, to ensure the temperature in the bath is uniform.
6. Automatically detect and control the water bath's temperature.
7. Automatically detect and control drag speed.
8. Data storage, easy to query.
9. Automatically calculate and display the average ductility value.



II. Main technical specifications
1. Power supply:  AC(220±10%)V, 50Hz;
2. Measurement distance:  1.5m(±10mm);
3. Heating mode:   Electric heater;
4. Heating power:  4500W;
5. Temperature control mode: Shield type cold heat balance pressurization cycle system;
6. Temperature control range: (5~50)ºC, adjustable. Resolution is 0.01ºC;
7. Temperature control accuracy:   ±0.1ºC;
8. Tensile speed:   10mm/min and 50mm/min, two grades;
9. Measurement accuracy:   ±1 mm;
10. Ductility display: Display in real time;
11. Ductility record: By touching screen
12. Average ductility:When the ductility record is finished, automatically display in the screen;
13. Refrigeration modeCompressor refrigeration;
14. Ambient temperature:  (15~+35)ºC;
Relative humidity:  ≤85%;
15. Dimension: 2370mm×520mm×1000mm;
16. Total power consumption: ≤5600W;
17. Net wet: 285kg.

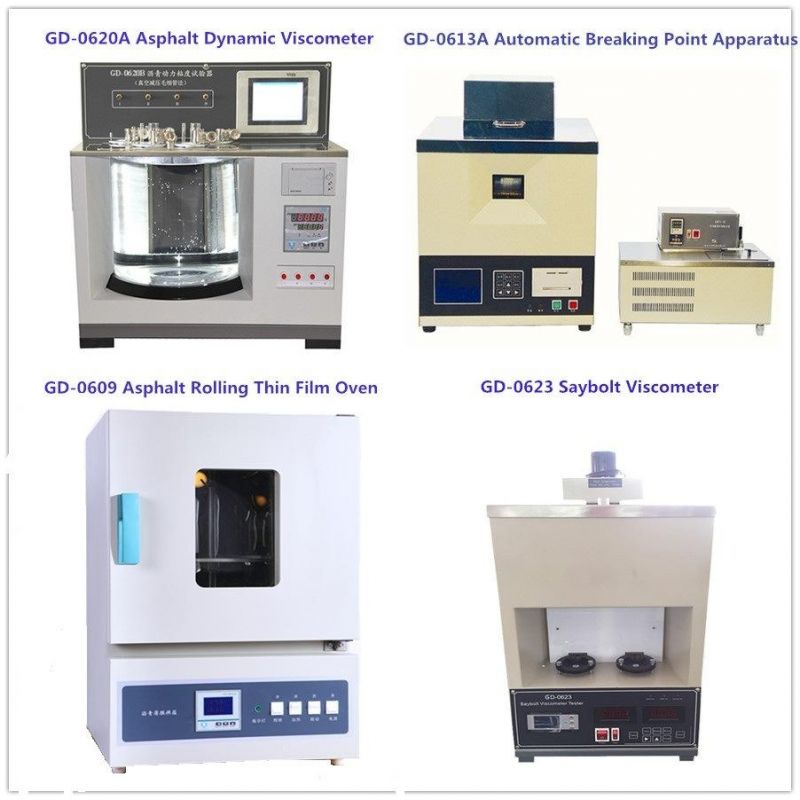

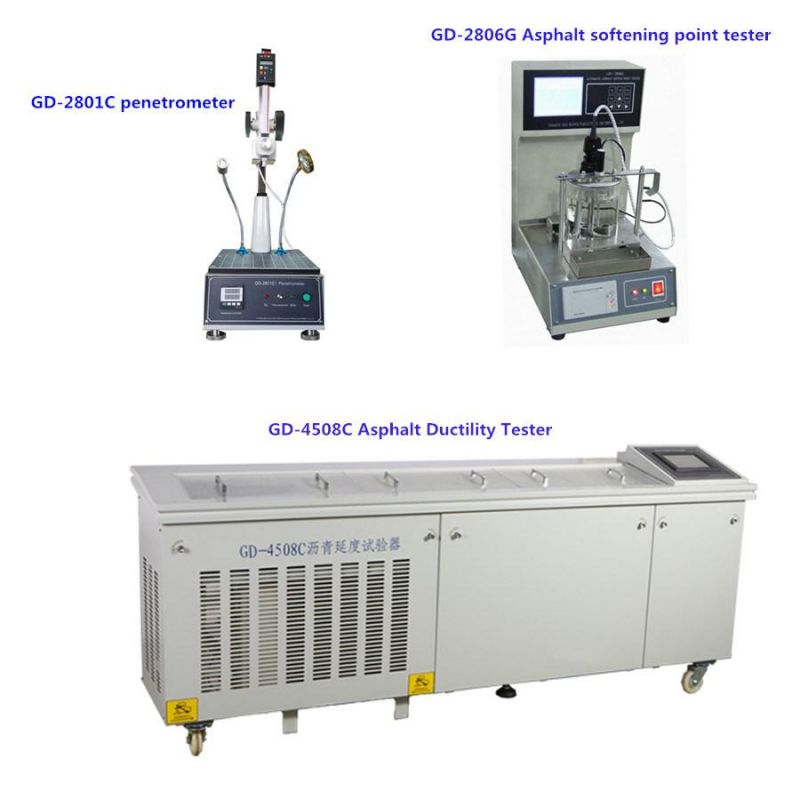

 II,SYD-4508C Bitumen Ductility Machine's Reagent and Auxiliary Equipments III.Other asphalt Testing Instrument:
