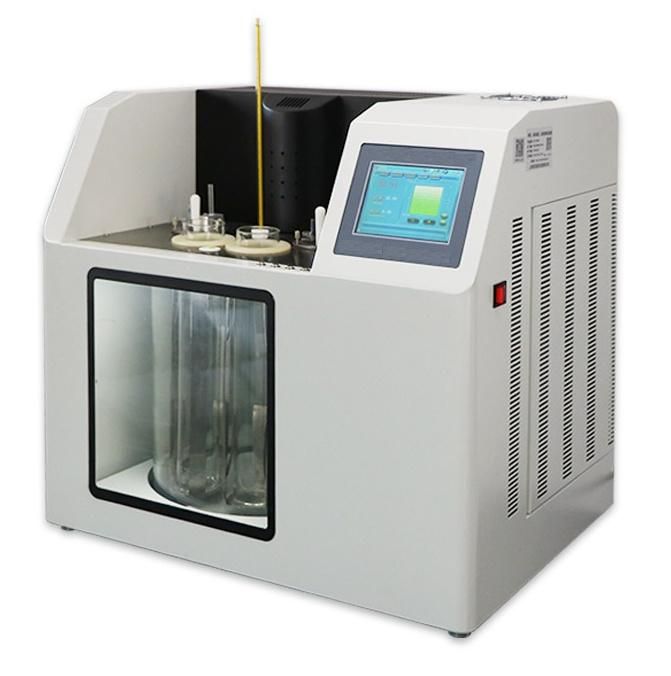

Multifunctional Digital Specific Gravity Meter Density, Kinematic Viscosity, Viscosity Index Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Power Source：AC220V
- Capacity of Bath：300mm*340mm
- Temperature Range：20 to 100 Celsius
- Resolution：0.01 Celsius
- Temperature Precision：0.04 Celsius
- Timing Precision：0.01s
Base Info
- Model NO.：GD-1884B
- Display Mode：5.6 Inch Colored LCD
- Sample Amount：4 Samples
- Power Supply：AC 220V, 50Hz
- Maximum Power Consumption：1500W
- Working Environment：Ambient Temp:(15~35)
- Dimension：615*500*610mm
- Net Weight：26.5kg
- Transport Package：Wooden Case for Digital Specific Gravity Meter Den
- Trademark：GOLD
- Origin：China
- Production Capacity：100 Sets, Month
Description
Microprocessor and colored LCD technology. English bilingual menu. Light-touch screen. Easy to operate.
It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
New-type temperature sensor. The temperature resolution is 0.01ºC. Temperature control precision is ±0.04ºC. The internal semiconductor refrigeration device is installed, and the refrigeration device will start automatically when the test temperature is set to 20 ºC ∼ 35 ºC.
It can save 99 coefficients of capillary viscometer.
II. Main technical specifications
III. Detail Images:
IV. How to order products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production of digital specific gravity meter
---Sending products picture to customer after the production is ready
---Shipping products to customer
V.FAQ:
1. Q: What is the language? After sale service,the Warranty?
A:English version or as your requirement.Warranty : 1 year.
2. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: There is no liquid and battery, which does not influence the delivery.
VI. Contact Us:
It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
New-type temperature sensor. The temperature resolution is 0.01ºC. Temperature control precision is ±0.04ºC. The internal semiconductor refrigeration device is installed, and the refrigeration device will start automatically when the test temperature is set to 20 ºC ∼ 35 ºC.
It can save 99 coefficients of capillary viscometer.
II. Main technical specifications
| 1 | Standard | ASTM D1298; ASTM D445; ASTM D2270 |
| 2 | Capacity of bath | Ф300mm×340mm |
| 3 | Temperature range | 20 to 100ºC |
| 4 | Resolution | 0.01ºC |
| 5 | Temperature precision | ±0.04ºC |
| 6 | Timing precision | ±0.01s |
| 7 | Display | 5.6 inch colored LCD |
| 8 | Sample amount | 4 samples |
| 9 | Power supply | AC(220±10%)V, 50Hz±1Hz |
| 10 | Maximum power consumption | 1500W |
| 11 | Working environment | Ambient temp.:(15~35)ºC, RH<85% |
| 12 | Dimension | 615×500×610mm |
| 13 | Net weight | 26.5kg |
III. Detail Images:
IV. How to order products?
---Send inquiry to us or contact with us via skype or trademanager
---Confirming the model, specification, price, qty, delivery time and payment method
---Sending invoice to customer
---Customer makes payment and send us receipt
---Arranging production of digital specific gravity meter
---Sending products picture to customer after the production is ready
---Shipping products to customer
V.FAQ:
1. Q: What is the language? After sale service,the Warranty?
A:English version or as your requirement.Warranty : 1 year.
2. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: There is no liquid and battery, which does not influence the delivery.
- Q: How do you ensure your instruments's quality?
A: All our instruments are 100% new. And all of our instruments are inspected and debugging well before delivery with superior quality. - Q: What is the delivery time?
A: Usually within 7 working days after receiving your payment. - Q:What's the package made of?
VI. Contact Us:
If you have interest, please feel free to contact with me:
Chongqing Gold Mechanical&Electrical Equipment Co., Ltd
website: chinainstrument.en.made-in-china.com
