• Model NO.：GD-4294
• Reproducibility (R)：Less Than 0.1215 (S+0.05555)
• Detection Limit：10 Ppm
• Oil Sample Quantity：3 Ml
• Measurement Time：It Can Be Set to 30s or 60s or 90s or 120s or 150s
• Calibration Curve Numbers：It Can Save 10 Calibration Curves
• Transport Package：Wooden Case , Plywood
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-4294 Reproducibility (R) Less Than 0.1215 (S+0.05555) Detection Limit 10 Ppm Oil Sample Quantity 3 Ml Measurement Time It Can Be Set to 30s or 60s or 90s or 120s or 150s Calibration Curve Numbers It Can Save 10 Calibration Curves Transport Package Wooden Case / Plywood Origin Made in China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Automatic Energy Dispersive X-ray Fluorescence Analyzer for sulfur-in-oil analysis


Introduction:

Environment pollution is attracting more and more governments and public concern. The cry for ecological environment and atmospheric environment protection is increasingly louder. The key culprit to atmospheric destruction and pollution is discharge of CO2 and SO2, which are from combustion of power fuels. Lowering down the sulfur content in the gasoline, diesel oil, heavy oils used in vehicles, ships, and airplanes will highly reduce pollution to atmosphere. Europe and our government have promulgated a series of standards on sulfur content of petroleum products to restrict its production and discharge. SO2 may also cause catalyst poisoning in petrochemical industry and form acid rain in the atmosphere.

The instrument is specially designed to determine sulfur content in the petroleum products. Adopts energy-dispersive principle, and with electrical, mechanical and microprocessor integration design, so it is rapid and accurate. It can meet the requirements of National Standard GB/T 17040 and GB/T11140 on repeatability and reproducibility, and it can also meet requirements of ASTM D4294-03 on these indexes. It provides a measure to determine sulfur content during petroleum or petrochemical production process.


Application:

1. Automatic Energy Dispersive X-ray Fluorescence Analyzer can be used to determine mass% of total sulfur in the crude petroleum, petroleum, heavy oil, diesel oil, gasoline, and naphtha.
2. Automatic Energy Dispersive X-ray Fluorescence Analyzer can be used to determine total sulfur content in the products of coal chemical industry, such as primary benzene.
3. Automatic Energy Dispersive X-ray Fluorescence Analyzer can be used to determine total sulfur or sulfide in other liquid or solid powder samples.


Features:

1. The instrument adopts electromechanical integrated micro-computer design, 8-inch wide viewing angle capacitive touch screen (1024*768) display, backlight brightness can be set by the software, no keyboard is needed, and the interface is simple and beautiful.
2. Wide variety of detection, wide measuring range, fast analysis speed, less sample consumption.
3. Using the fluorescence intensity ratio analysis method, the temperature and air pressure are automatically corrected, and the hydrocarbon ratio (C/H) can also be corrected.
4. The automatic diagnosis function of the instrument determines the working state and electrical parameters of the instrument.
5. Using the disposable Mylar membrane sample cup, it can avoid cross-contamination; the sample cup is made of multi-function pressing, which is quick and convenient. 6. The sample stage is positioned accurately, it is very convenient to place the sample and replace the oil leakage prevention component, and avoid the possibility that the detection system is contaminated.
7. The instrument has a large amount of data storage. The default storage is 4096 content analysis results, 8192 count measurement data and 16 instruments calibration result data, the data can be queried, and it can also be uploaded to the computer through the RS-232 standard serial communication port.
8. The instrument has the function of automatic peak stabilization, when the performance of the detector decreases, the system can automatically adjust the high voltage and correct the error.
9. The instrument automatically selects the working curve by default, without user intervention.
10. The user can select the measurement result unit, ppm or (m/m)%.
11. Safety protection measures of X rays can prevent ionizing radiation damage to individuals or groups.

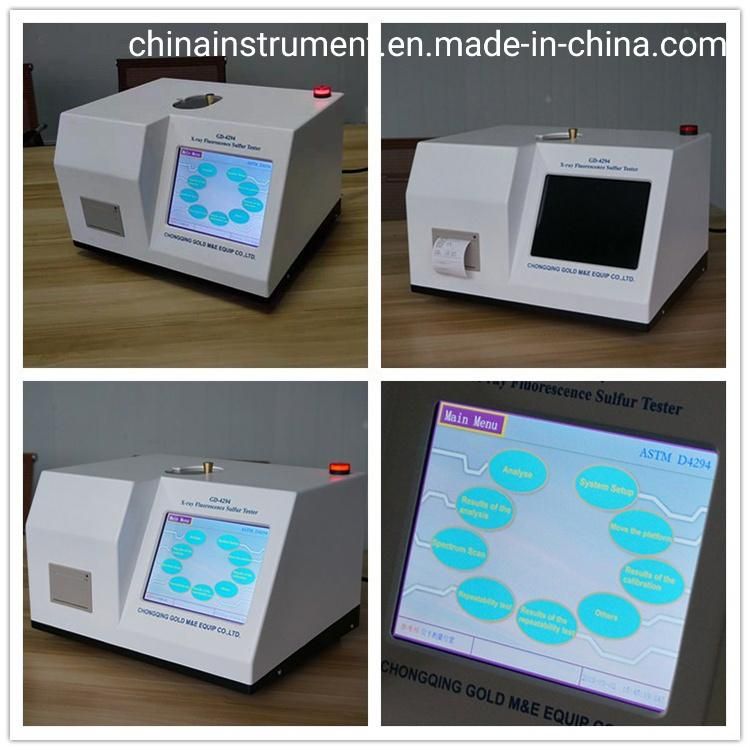

Real Pictures:
