• Model NO.：GD-3635D
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Power Supply：AC(220±10%)V, 50Hz.
• Heating Device：Quartz Tube Furnace Heating, No Naked Fire
• Test Flame Applicator：It Applies The Test Flame Automatically.
• Thermometer：(-6~400)&Ordm
• Igniting Device：1.Ignition Source: Coal Gas 2.Lame Diameter Is 3.2
• Ambient Temperature：(-10-50)ºC
• Relative Humidity：≤85%
• Maximum Power Consumption：650W
• Transport Package：Wooden Case
• Specification：350mm*290mm*350mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply:AC(220±10%)V,50Hz2. Flash point determination:Range: Ambient to 300ºC

Repeatability: ≤3ºC

Reproducibility:≤6ºC

 Accuracy:0.1ºC

3. Heating rate:Procedure A:

(5~6)ºC/min, Procedure B: (1~1.6)ºC/min

Automatic control and manually adjustable.

4. Stirring rate:Procedure A:

(90~120)RPM, Procedure B: (250±10)RPM

Automatic control and manually adjustable.

 5. Igniting mode:Electric ignition. Gas flame diameter:3.2mm~4.8mm 6. Working condition:Ambient temperature:(10~40)ºC

Relative humidity:≤80%

 7. Maximum power consumption:500W 8. Dimension: 520mm×360mm×310mm





I. Main technical features



1. It adopts LCD screen to display. Full English man-machine dialog interface. It can preset the parameters of expected flash point,

sample mark number, atmospheric pressure, test date,etc.It has menu to prompt and input function of guide type.



2. It adopts simulation tracking display the function curve of temperature rising and test time.

It has prompt functions of English mis-operation,test date and test time.



3. It is equipped with standard RS-323,485 computer port.The lower computer can save 100 groups of historical data. The test

data can be saved for a long time, ransmitted and modified if the instrument being connected with computer.



4. It can correct the influence of atmospheric pressure and calculate the correction automatically.



5. Differential detection.Automatically correct the systematic deviation.



6. Automatically open the lid,ignite,detect and print test data.The test arm lifting up and down automatically.



7. It adopts electric ignition to fire light the gas flame.It will light only need to press the button.



8. Humanized design,beautiful and safe. Easy to operate.







astm d93 pensky martens flash point tester Selection List



NameClosed Cup Flash PointAutomatic Fast Low
Temperature Closed
Cup Flash PointItemGD-261
(2008
standard) GD-261-1 GD-261AT GD-261DT GD-5208GD-5208DPicture      Application

Suitable to detect above 40°,volatile chemical materials

and finished fuel oil
product

Suitable to detect painting,oil
paint,alcohol,cosmetics and
volatile expensive sampleTemperature
control range40~300ºC,Rod
type mercurial
thermometer,20
08 standard. 40-300ºC,Pt100 SensorFlash Point
detecting
range (-30~
50)ºCFlash Point
detecting
range (0~100)
ºCAutomaticityManual operation,pressing the
spring knob to igniteAutomatical igniting-one
revolution to ignite at a
time automatically,single
chip temperature
control,temperature
display,LCD

Automatical
uncapping,igniting,detecting,

printing
data,testing arm lifting up and down
automatically

 Manual
uncapping,inniting,automatical
detecting,printing data
automaticallyStandard ASTM D93

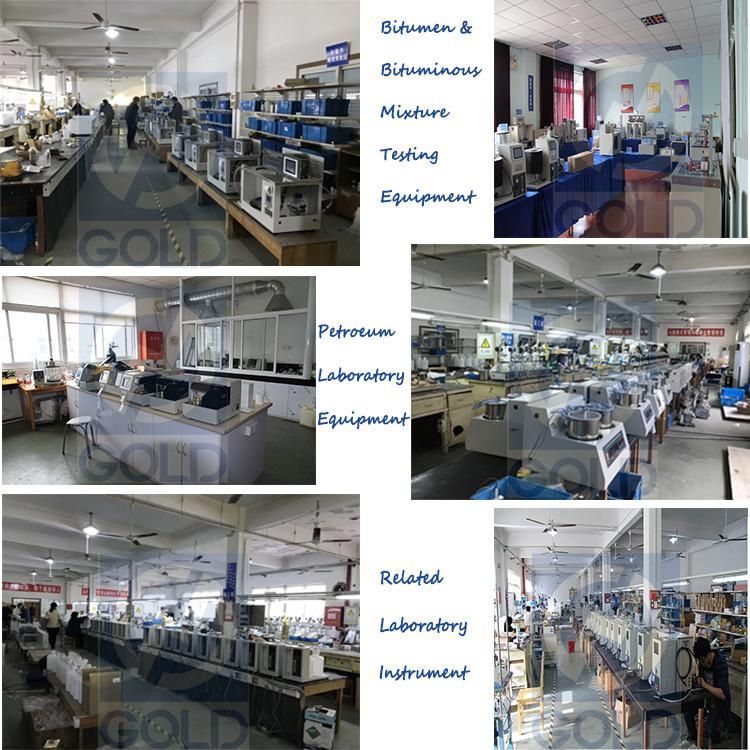

Workshop



Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits

and electrical testing equipment in China.Our products are sold to most countries in the world and they are highly

popular because our good quality and after-sale service.

At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.

With strong technical force and strong development, new products have been launched continuously.



Exhibition



We have developed sales channels in many countries such as UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,

Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.

After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument and electrical testing instrument.



Packing

Goods are packed in veneer case, which is firm and safe for oversea shipment.
