• Model NO.：GD-17040
• Oil Sample Quantity：3 Ml-5ml
• Transport Package：Wooden Case for ASTM D4294 Sulfur Content Tester
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-17040 Oil Sample Quantity 3 Ml-5ml Transport Package Wooden Case for ASTM D4294 Sulfur Content Tester Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

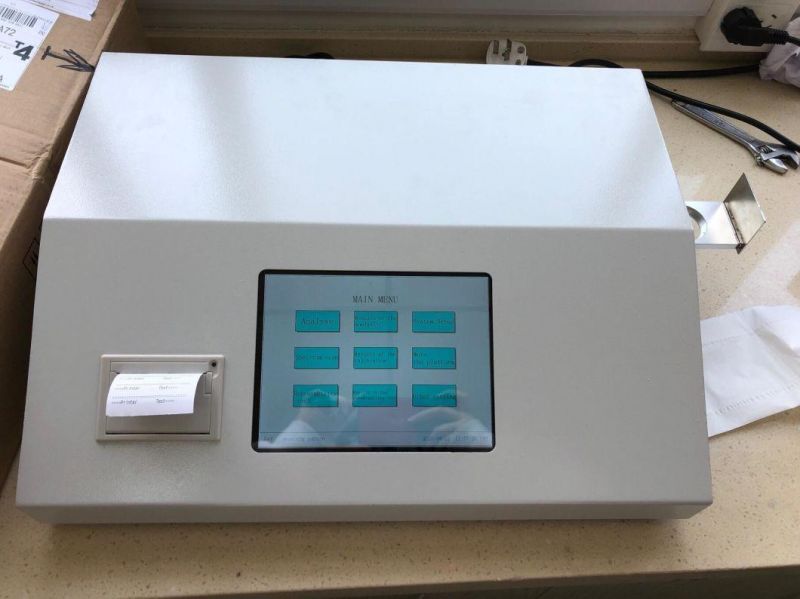

Sulfur Content in Crude Oil  Analyzer ASTM D4294


Summary
 Sulfur Content in Crude Oil  Analyzer ASTM D4294 is specially designed to determine sulfur content in the petroleum products. It provides rapid and precise measurement of total sulfur in petroleum and petroleum products with a minimum of sample preparation(3ml-5ml). The detection time is fast (1min ~ 5min). and the detection result is stable, accurate and reliable.





I. Main technical features

1. The detection lower limit of sulfur content can reach 0.0017%, which can be widely used in the detection of sulfur content of related oil products with percentage content greater than this index.

2. Mechanical and electrical integration microcomputer design, 8-inch wide angle colored touch screen, simple and beautiful interface.

3. With the method of fluorescence intensity ratio analysis, the temperature and air pressure can be automatically corrected, and the C / H ratio can also be corrected.

4. It has the function of automatic diagnosis, automatic judgment of the working state of the instrument and automatic detection of working parameters.

5. The data storage capacity is large, it can store 4096 analysis results, 8192 count measurement data and 10 calibration curves. The stored data can be queried, it also can be uploaded to the computer through RS-232 standard communication port.

6. The working curve is automatically selected by default when the instrument is turned on, without user intervention.

7. The unit of measurement result can be selected, ppm or (m / m)%.



II. Main technical specifications

(1) Measuring range: 0.0017%~5%
(2) Repeatability (r): <0.4347 X^0.6446
(3) Reproducibility (R): <1.9182 X^0.6446
(4) Detection limit: 17 ppm
(5) Oil sample quantity: 3 ml-5ml.
(6) Measurement time: it can preset 30, 60, 90, 120, 150s, measurement repeat times:1, 2, 3, 5, 10(times).
         ( The default measurement time of this instrument is 3 minutes, and the fastest measurement time is 1 minute.)
(7) Sample measurement: Automatic measurement of single sample, average value and standard deviation at the end of measurement.(8) Calibration curve numbers: it can save 10 calibration curves.(9) Working condition:
 Ambient temperature: (10~30)ºC
 Relative humidity: ≤85% (30ºC)(10) Dimension: 480mm×380mm×140mm(11) Weight:13kg.(Net weight)

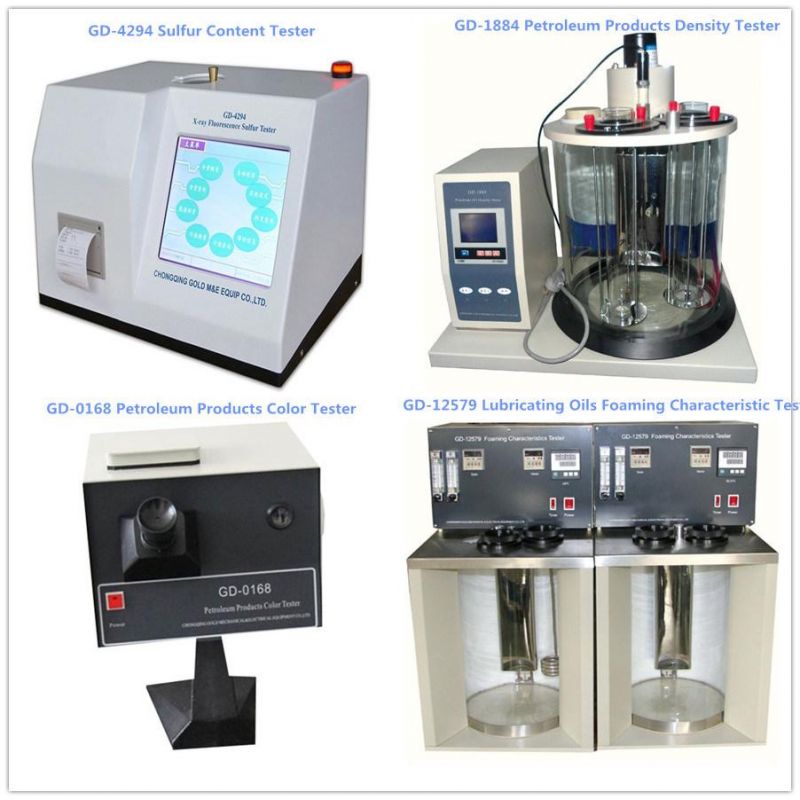

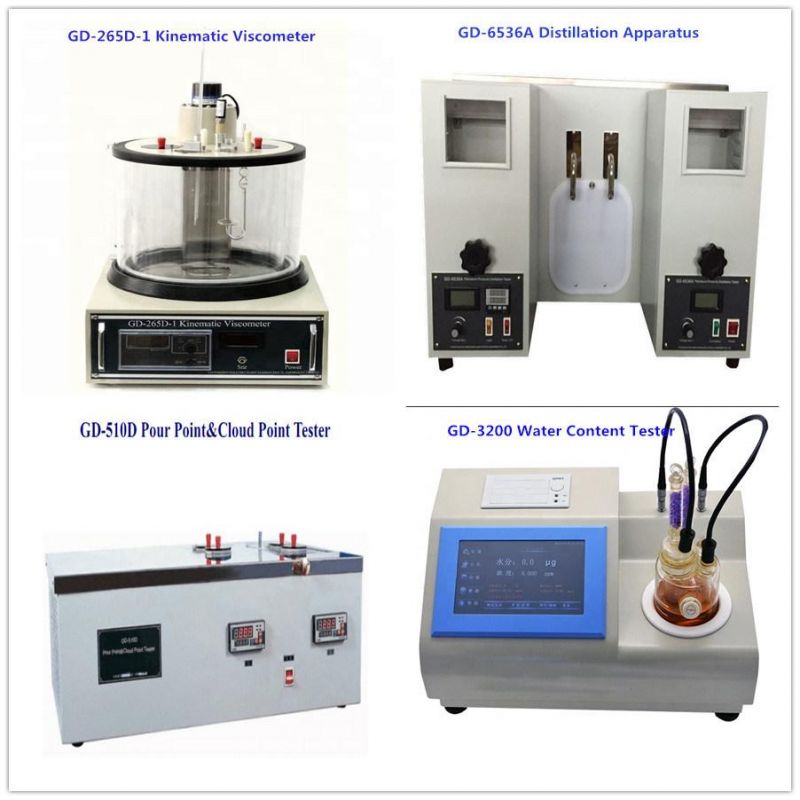

III. Petroleum & Oil Analyzer Petroleum Testing Instruments





Our Certificate:
Customer's feedback:

About us:
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits from China.Our products are sold to many countries in the world and they are highly popular because our good quality, professional after-sale service and moderate price.
At present, there are more than 150 employees, of whom more than 70% are technical personnel with college degree or above.
With strong technical force and strong development, new products have been launched continuously.
