• Model NO.：8302F Pon OTDR handheld otdr
• Customized：Customized
• Trademark：DAYTAI
• Origin：China
• Production Capacity：5000,Year

Basic Info.

Model NO. 8302F Pon OTDR handheld otdr Customized Customized Trademark DAYTAI Origin China Production Capacity 5000/Year

Product Description

Description

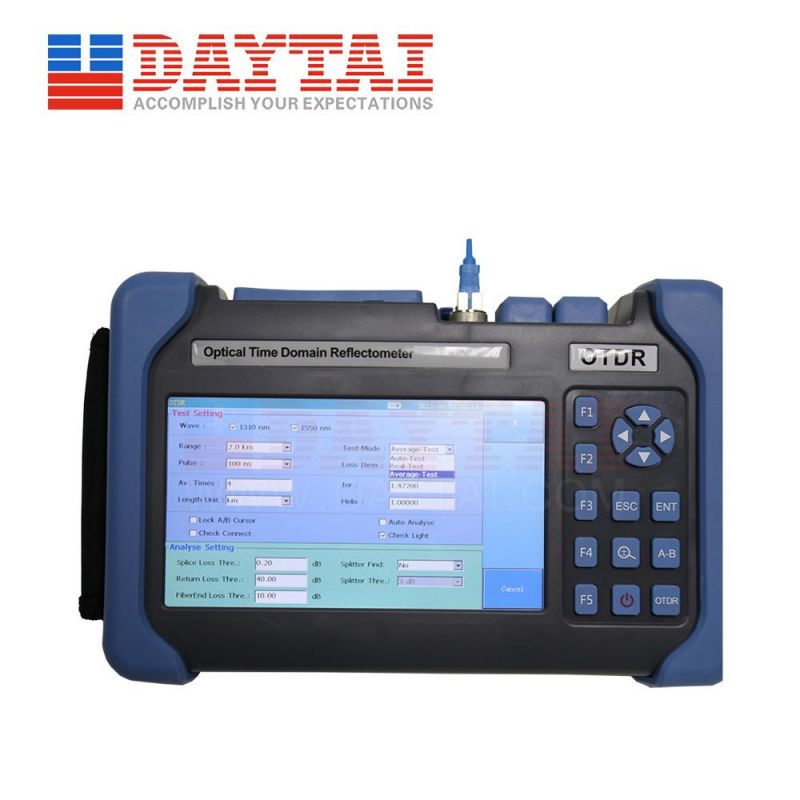

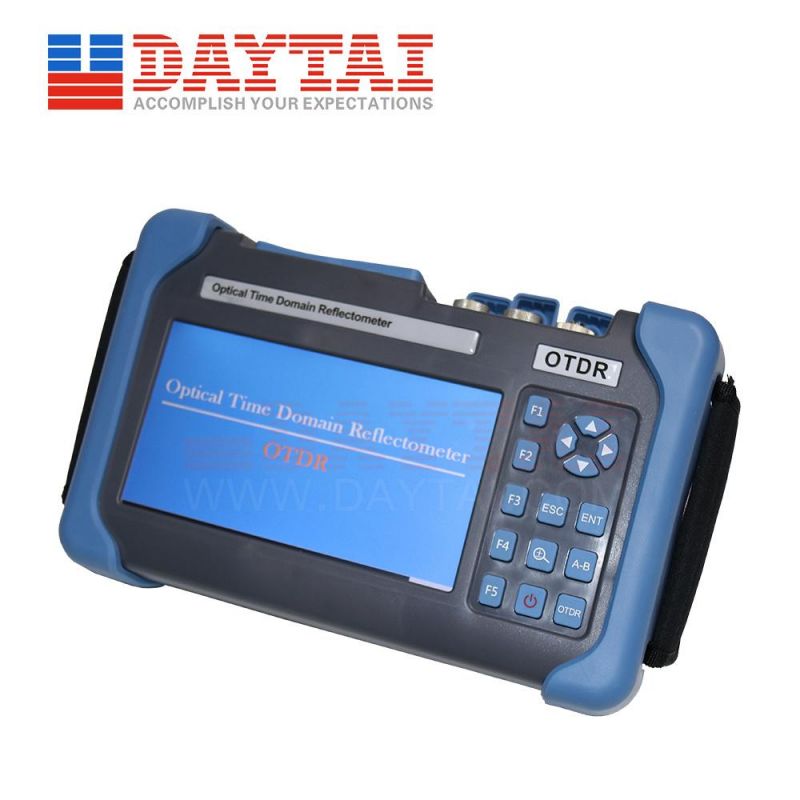

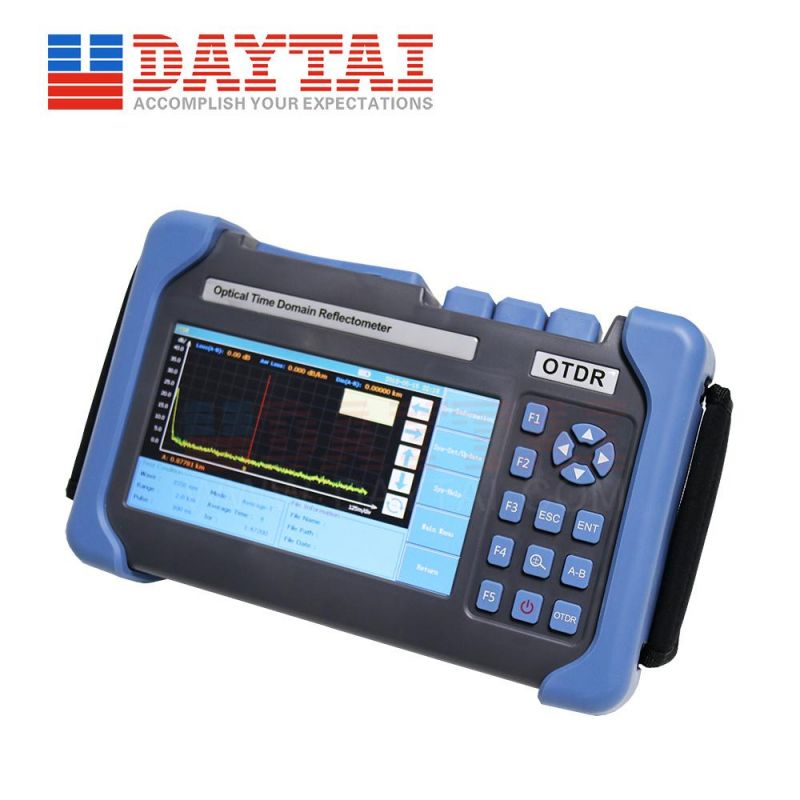

8302F series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; 8302F is specially designed for that kind of application. It's economic, having outstanding performance.

★Features
⊙ 7-inch anti-reflection LCD screen
⊙ Integrated design, smart and rugged
⊙ IP65 protection level, outdoor enhanced
⊙ Support multi-language display and input
⊙ PON online test module (1625nm) is optional
★Applications
⊙ LAN network testing
⊙ CATV network testing
⊙ Metro network testing
⊙ Access network testing
⊙ FTTX test with PON network



★Technical Parameter

Type	Testing Wavelength (MM: ±20nm, SM: ±10nm)	Dynamic Range (dB)	Event Dead-zone (m)	Attenuation Dead-zone (m)
8302F-S1	1310/1550	32/30	1	8/8
8302F-S2	1310/1550	37/35	1	8/8
8302F-S3	1310/1550	42/40	0.8	8/8
8302F-S4	1310/1550	45/42	0.8	8/8
8302F-T1	1310/1490/1550	30/28/28	1.5	8/8/8
8302FF-T2	1310/1550/1625	30/28/28	1.5	8/8/8
8302F-T3	1310/1490/1550	37/36/36	0.8	8/8/8
8302F-T4	1310/1550/1625	37/36/36	0.8	8/8/8
