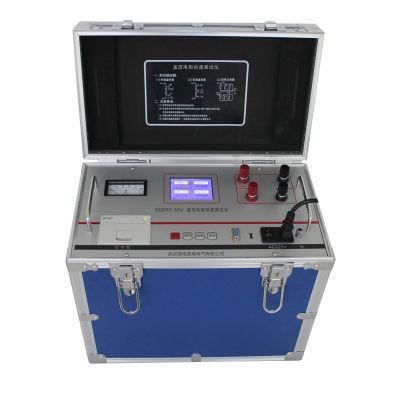

• Model NO.：GDZRC-50U
• Display：Digital
• Control：Computer Control
• Weight：20kg
• Power Source：AC220V
• Output current：<5mA, 2.5A, 5A, 10A, 20A, 40A,50A
• Delivery time：15 working days
• Transport Package：Standard Export Wooden Box
• Specification：325mm*240mm*275mm
• Trademark：HV Hipot
• Origin：China(Mainland)
• HS Code：9031809090
• Production Capacity：5000sets,Year

Output current

<5mA, 2.5A, 5A, 10A, 20A ,50A

Min. resolution

0.1μΩ

Measurement range

40μΩ~400mΩ

100μΩ~1Ω

500μΩ~2Ω

1mΩ~4Ω

2mΩ~8Ω

5mΩ~20Ω

10Ω~20KΩ

50A

20A

10A

5A

2.5A

1A

<5mA

Accuracy

±(0.2%+2digits)

Operation temperature

0~40ºC

Humidity

<90%RH (no condensing)

Size

400mm×225mm×350mm (L×W×H)

Weight

17kg (without test wire)

test wire box: 3kg
