• Model NO.：PHLD-16
• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Certificate：ISO. Ce. SGS
• Gross Weight：500 Kg
• Delivery Time：20 Days Shipping Time
• Warranty：12 Months
• Transport Package：Packed in Fumigated Wood Box
• Specification：1100*1100*1350 mm
• Trademark：JP jianping
• Origin：Shanghai China
• HS Code：90311000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. PHLD-16 Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC380V Oil Cylinder Position Under Certificate ISO. Ce. SGS Gross Weight 500 Kg Delivery Time 20 Days Shipping Time Warranty 12 Months Transport Package Packed in Fumigated Wood Box Specification 1100*1100*1350 mm Trademark JP jianping Origin Shanghai China HS Code 90311000 Production Capacity 1000 Sets/Month

Product Description

JP Centrifugal Fan Plastic Fan Axial Fan Balancing Machine



Applicable to medium workpieces

1) With hood
2) Without hood
3) Frequency conversion


 Range of Application
The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc .High speed and precision are advanages of this balancing machine.

According to user's requirement,The machine can install de-weight device

Special Features
The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

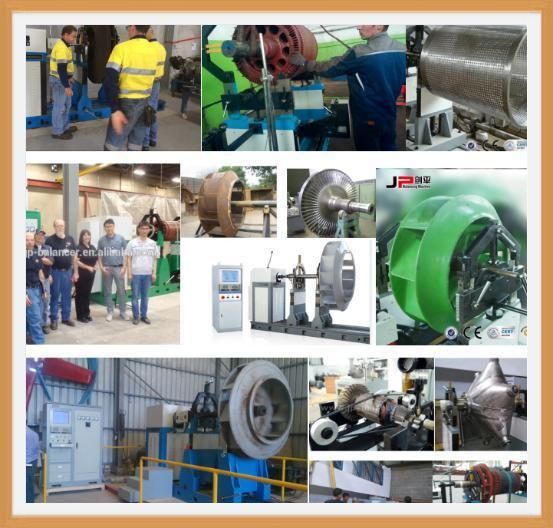

Customer use display



About us & Certificate

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.

We have ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.

Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine

Production Parameters

Technical data at a glance	PHLD-16	PHLD-42	PHLD-65
Max Mass of  Workpiece (with clump)  (kg)	16	42	65
Max Diameter of Workpiece (mm)	510 With hood  800 Without hood	510 With hood 800Without hood	510 With hood 800 Without hood
Height of Workpiecemm	160	160	160
Rotation Speed of Main Axis (r/min)	900	800	700
Motor Power  (kw)	1.5	1.5	2.2
Min Achievable Residue Unbalace Amount (emar)	5g. mm/kg	5g. mm/kg	5g. mm/kg
