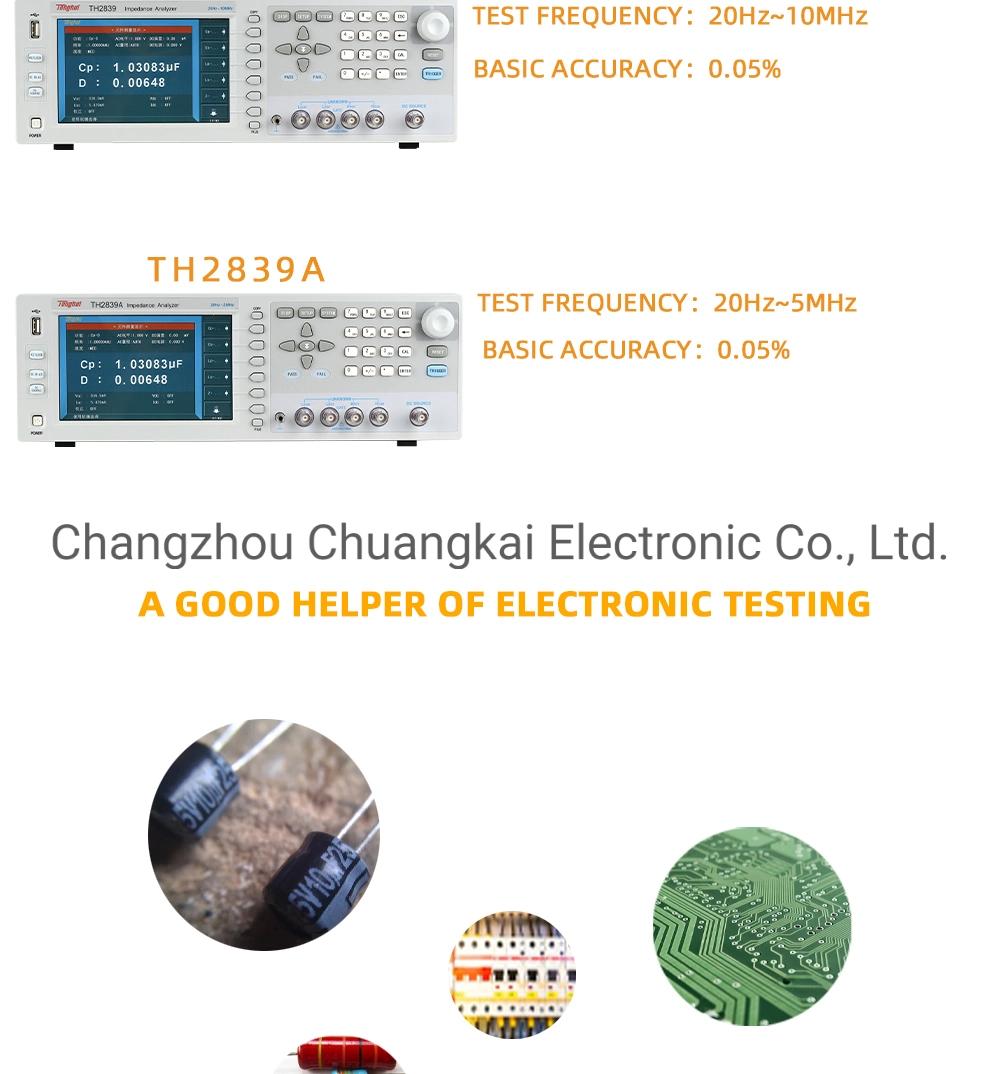

Th2839 Rlc Meter Impedance Analyzer 20Hz-10MHz Digital Resistance Meter
Changzhou Chuangkai Electronic Co., Ltd.- Function：Measurement of Lcr
- Display：7-Inch TFT LCD Display 800xrgbx600
Base Info
- Model NO.：TH2839
- Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
- Type：Lcr Meter
- Environment：Room Temperature
- Warranty：With Warranty
- Power Source：DC 100V-300V
- Weight：〉10Kg
- Installation：Direct Connected
- Customized：Customized
- Frequency：20Hz-10MHz
- Graph Sweep Parameters：Freq, Acv, Acv,I, Dcv,I, DC Voltage Source
- Highest Accuracy：1kHz: 0.05% 1MHz: 0.05% 2MHz: 0.1% 5MHz: 0.5% 10mh
- Warm-up Time：60 Minutes
- Input Voltage：Optional 100-120VAC,198-242VAC, 47-63Hz

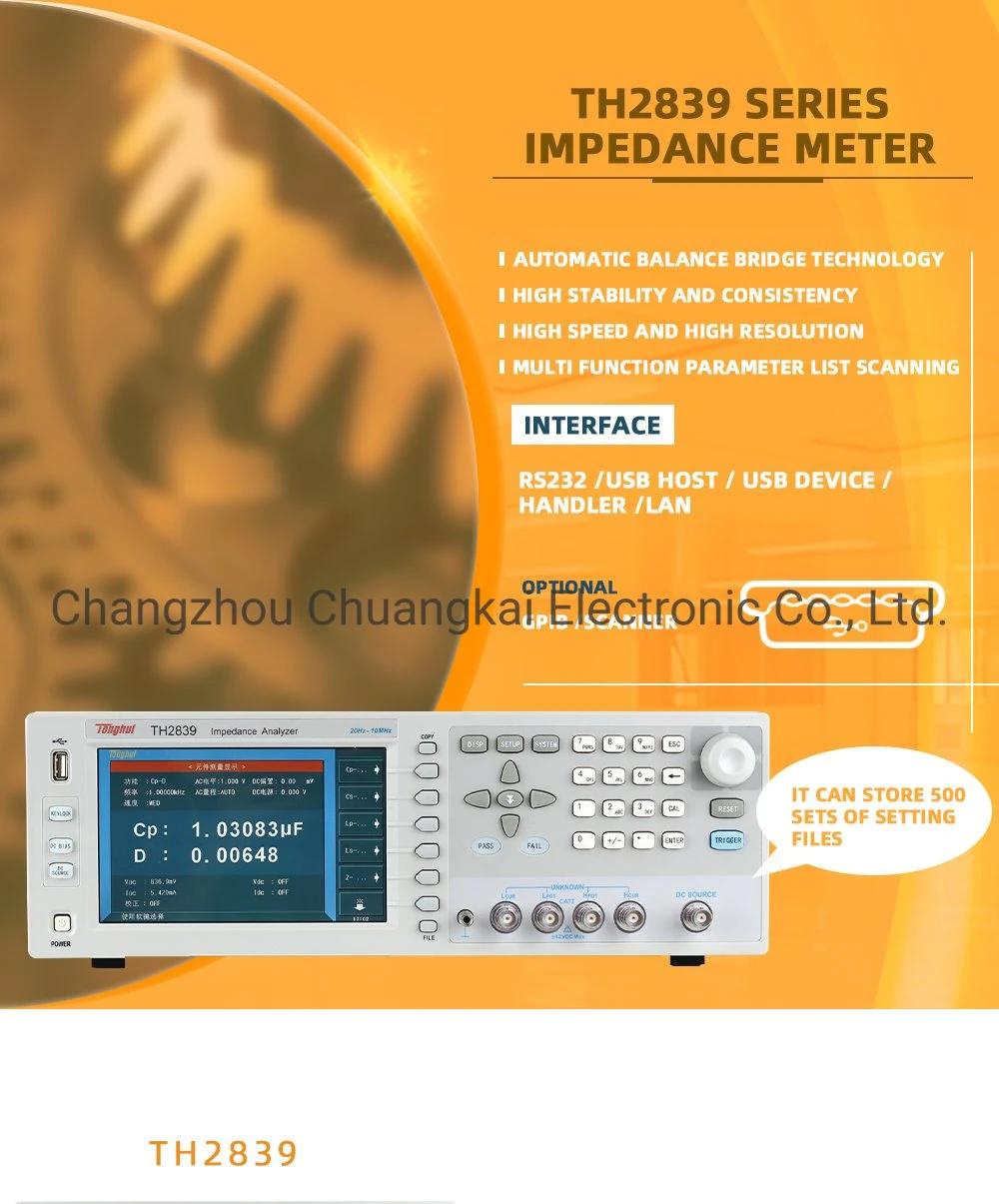

- Product Name：Th2839 Rlc Meter Impedance Analyzer 20Hz-10MHz
- Test Terminal Configuration：Four-Terminal Pair
- Output Impedance：100 Ohm
- Typical Measurement Time (Speed)：Fast: 7.7ms,Time Medium: 120ms,Time Slow: 230ms,Ti
- Transport Package：Carton
- Specification：55x54x33cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：2000 Sets Per Month
- Package size per unit product：55.00cm * 54.00cm * 33.00cm
- Gross weight per unit product：17.000kg
- Lead Time：15 days (1 - 1 set)
Description
Overview

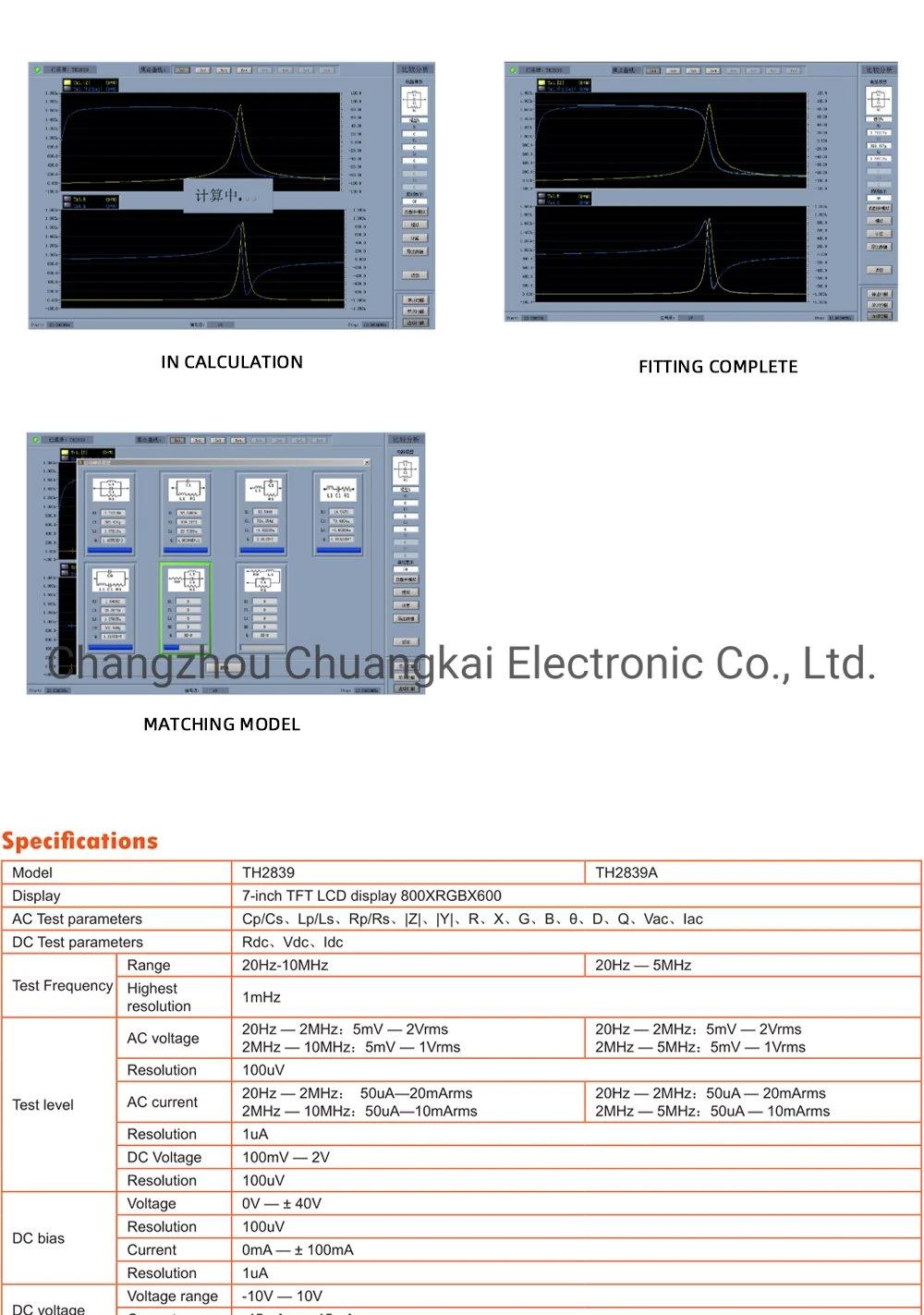

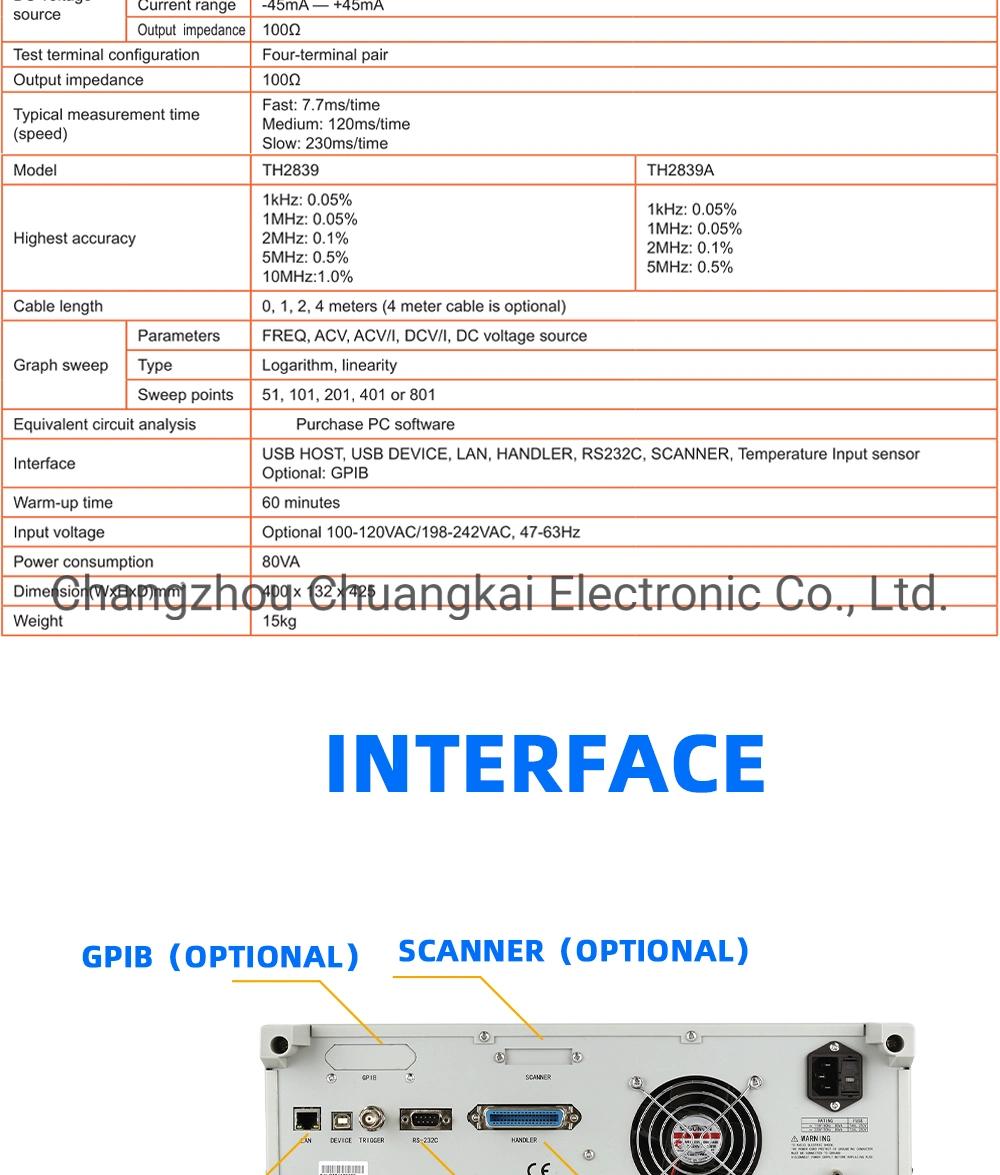

Product DescriptionTH2839 Display 7-inch TFT LCD display 800XRGBX600 AC Test parameters Cp/Cs,Lp/Ls,Rp/Rs,|Z|,|Y|,R,X,G,B,θ,D,Q,Vac,Iac DC Test parameters Rdc,Vdc,Idc Test Frequency Range 20Hz-10MHz Highest resolution 1mHz Test level AC voltage 20Hz - 2MHz:5mV - 2Vrms2MHz - 10MHz:5mV - 1Vrms Resolution 100uV AC current 20Hz - 2MHz: 50uA-20mArms2MHz - 10MHz:50uA-10mArms Resolution 1uA DC Voltage 100mV - 2V Resolution 100uV DC bias Voltage 0V - ± 40V Resolution 100uV Current 0mA - ± 100mA Resolution 1uA DC voltage source Voltage range -10V - 10V Current range -45mA - +45mA Output impedance 100Ω Test terminal configuration Four-terminal pair Output impedance 100Ω Typical measurement time(speed) Fast: 7.7ms/timeMedium: 120ms/timeSlow: 230ms/time Highest accuracy

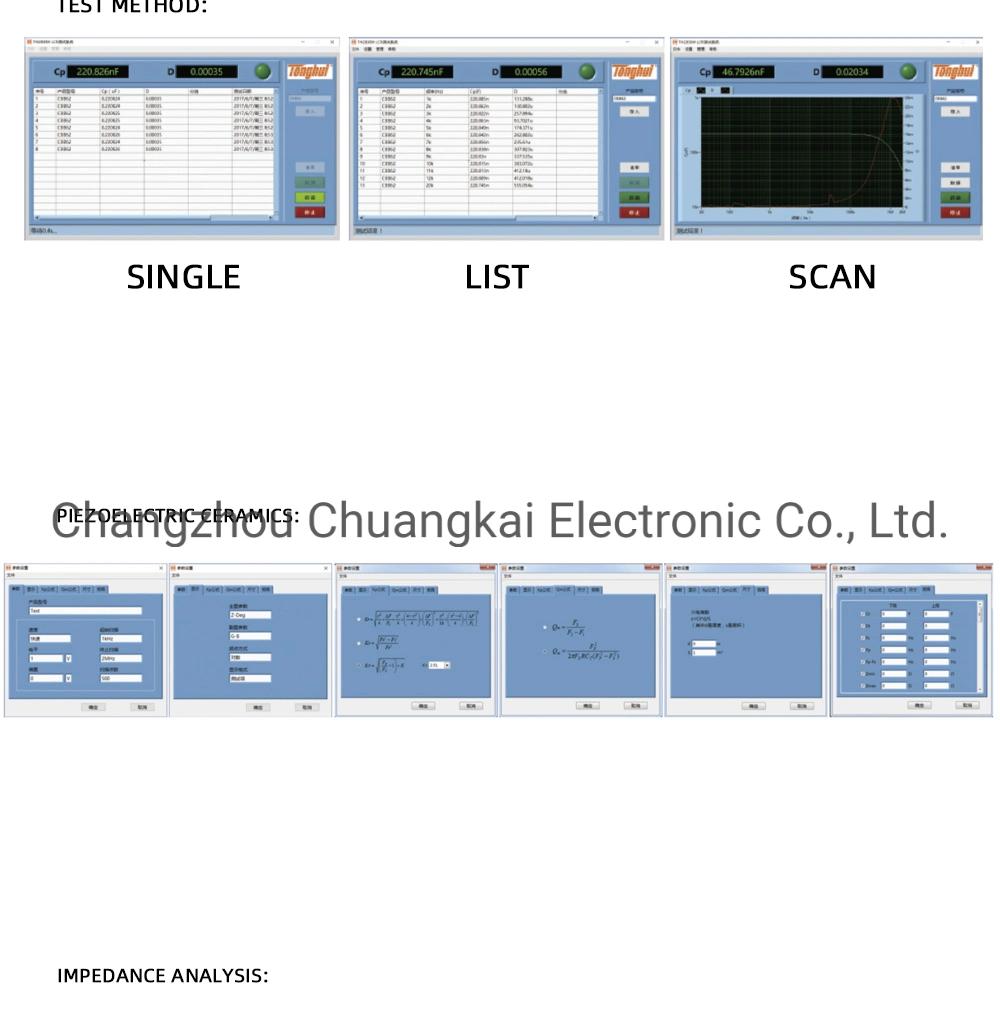

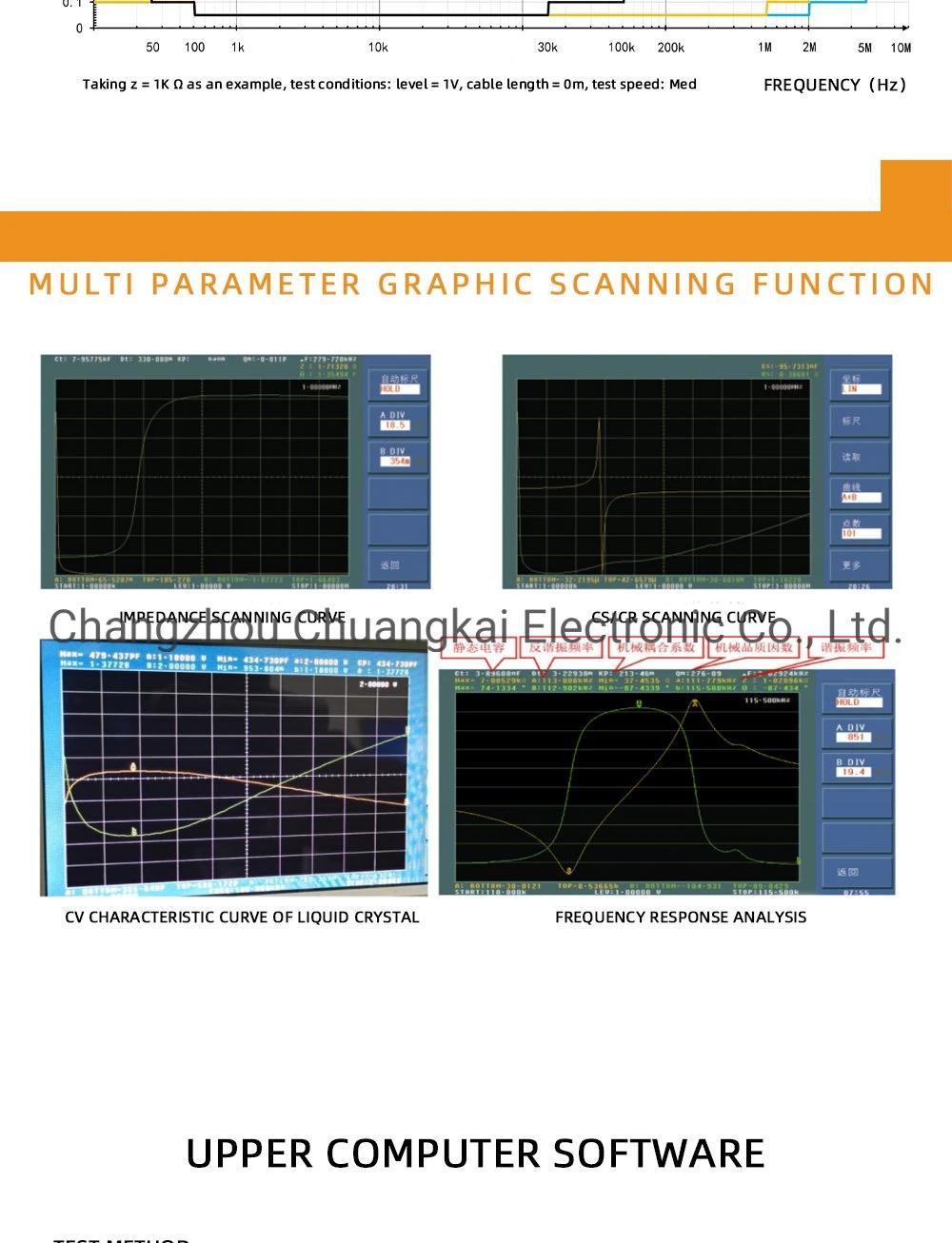

1kHz: 0.05%1MHz: 0.05%2MHz: 0.1%5MHz: 0.5%10MHz:1.0% Cable length 0, 1, 2, 4 meters (4 meter cable is optional) Graph sweep Parameters FREQ, ACV, ACV/I, DCV/I, DC voltage source Type Logarithm, linearity Sweep points 51, 101, 201, 401 or 801 Equivalent circuit analysis Purchase PC software Interface USB HOST, USB DEVICE, LAN, HANDLER, RS232C, SCANNER, Temperature Input sensor Optional: GPIB Warm-up time 60 minutes Input voltage Optional 100-120VAC/198-242VAC, 47-63Hz Power consumption 80VA Dimension(WxHxD)mm3 400 x 132 x 425 Weight 15kg
Packaging & Shipping
Company Profile
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
