Test Instrument

2000kn Hydraulic Tensile Strength Testing Instrument

Dongguan Haida Equipment Co., Ltd.
  • Type:Tensile Testing Machine
  • Maxcapacity:300kn
  • Accuracy Grade:0.5
  • Load Way:Electronic Load
  • Loading Method:Dynamic Load
  • Display:Digital

Base Info

  • Model NO.:HD-B616
  • Control:Computer Control
  • Weight:>2000Kg
  • Power Source:AC220V
  • Oil Cylinder Position:Under
  • Max. Test Load:300kn
  • Warranty Period:One Year
  • Delivery Time:20 Days After Receive The Deposit
  • Load Range:6kn-300kn
  • Max. Tensile Space:800mm(Including Piston Stroke)
  • Technology:Professional
  • Relative Error of Indicate Value of Load:±1%
  • Tensile Grips for Flat Specimen:0-15mm
  • Dia. of Bending Roller:30mm
  • Vclamping Mode:Hydraulically
  • Transport Package:Strong Wooden Case
  • Specification:ISO9001: 2008, CE, SGS.
  • Trademark:Haida
  • Origin:Dongguan, China
  • HS Code:9024109000
  • Production Capacity:150 Sets,Month

Description

2000kn Hydraulic Tensile Strength Testing Instrument2000kn Hydraulic Tensile Strength Testing Instrument

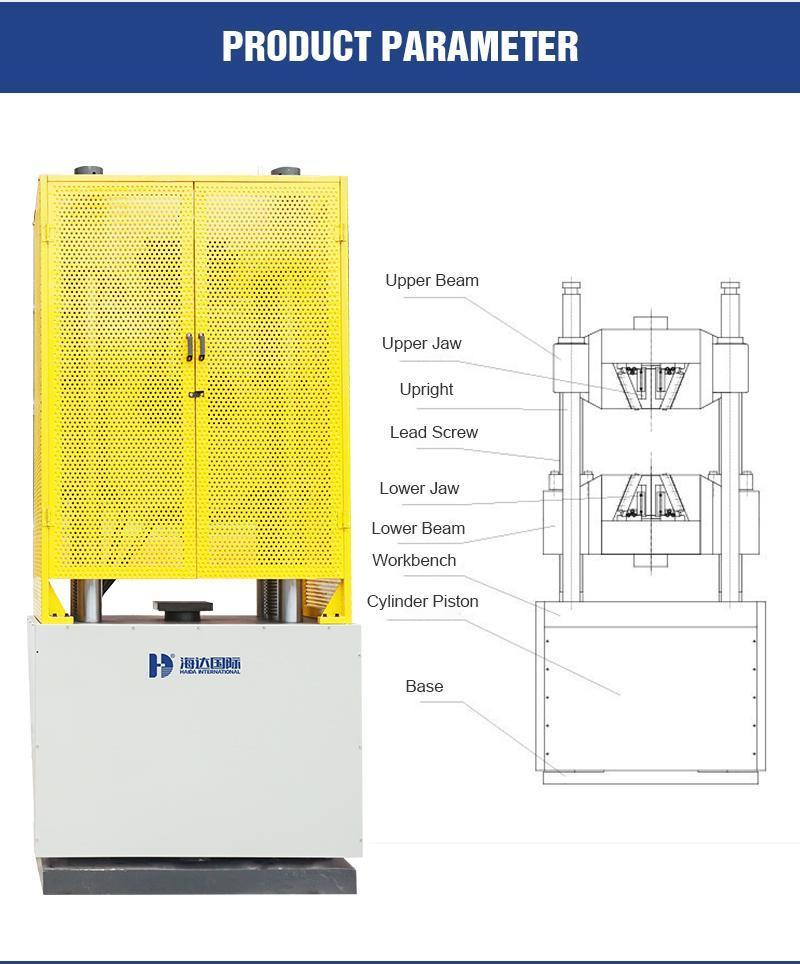

Structure Introduction:

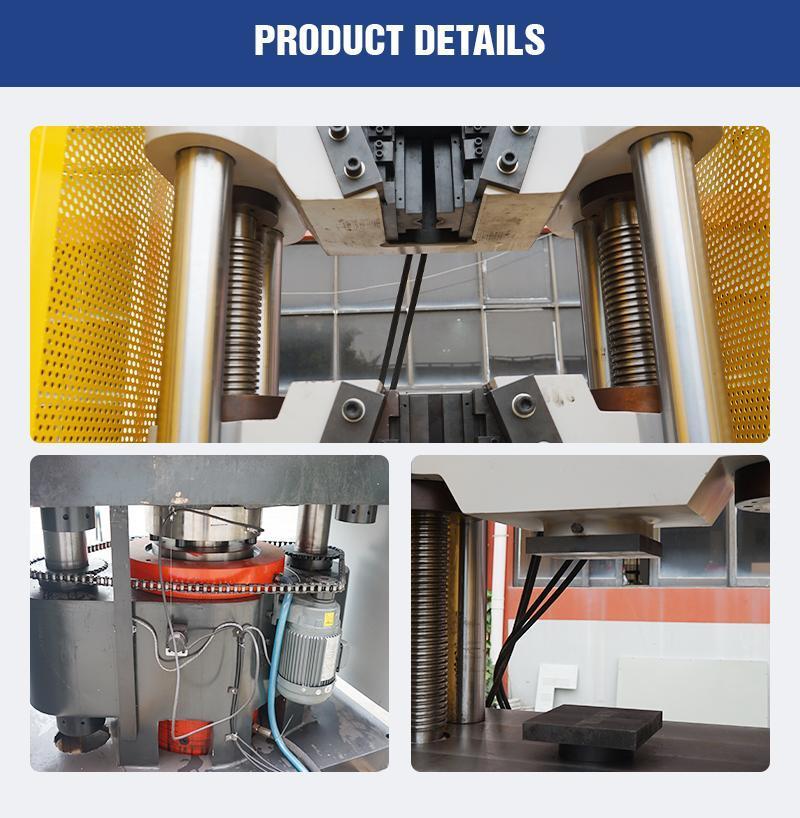

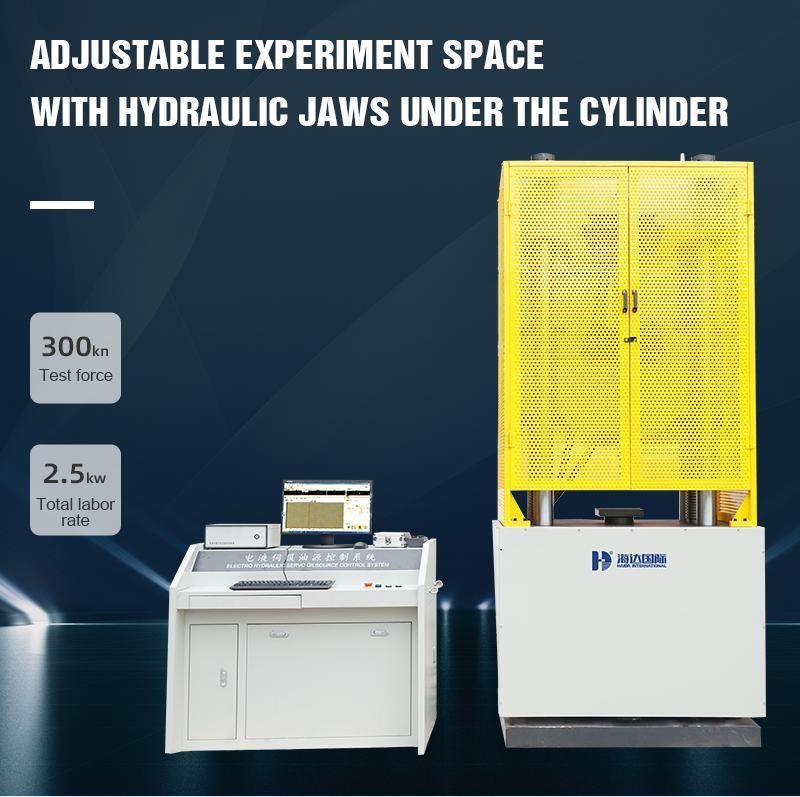

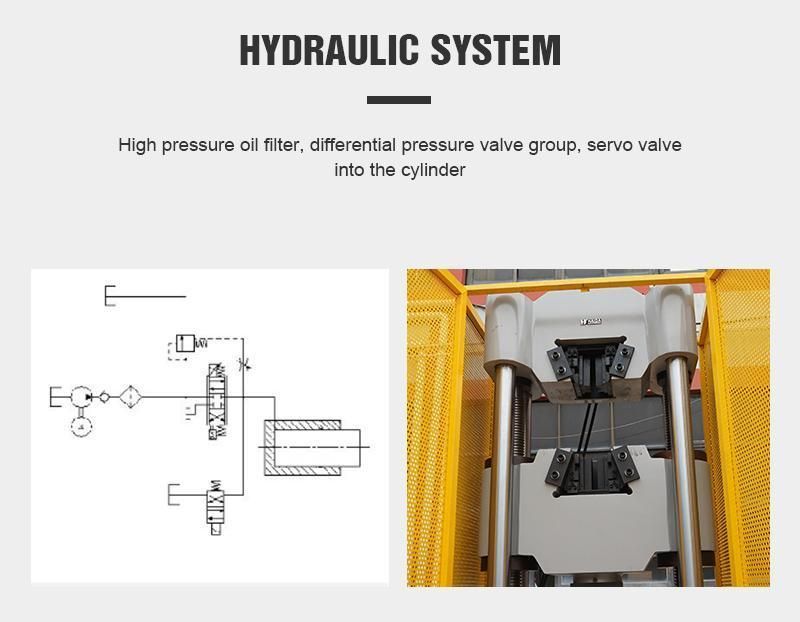

The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.

2000kn Hydraulic Tensile Strength Testing Instrument
2000kn Hydraulic Tensile Strength Testing Instrument
 Frame capacity30-60-200T Measure range2%-100%F.SLoad cell brandOil pressure sensor, China brand
60T (10T, 30T are optional)
Load accuracy1% F.SAvailable tensile stroke550mmAvailable compression stroke450mmTest speed50mm/min Round sample diameterΦ13-φ40mmFlat sample thickness0-30mmFlat sample width70mmCompression diameterΦ120mmOperation controlHydraulicDisplayPCCurves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength etc…Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
(The table parameters for the company Standard Model parameters, we support customer customization parameters)
2000kn Hydraulic Tensile Strength Testing Instrument

ADVANTAGE
1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
Technical Engineer Support After Service
Manufacturers Direct Sales, Factory Prices
1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time


2000kn Hydraulic Tensile Strength Testing Instrument

The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
2000kn Hydraulic Tensile Strength Testing Instrument

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise. main web site:http://haidaequipment.en.made-in-china.com
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
2000kn Hydraulic Tensile Strength Testing Instrument

client feedback


2000kn Hydraulic Tensile Strength Testing Instrument
2000kn Hydraulic Tensile Strength Testing Instrument

FAQ:

Q: Are your company a trading one or a factory?
A: Factory + trade (integration), More than 12 years focusing on test equipment field, 6 years exporting experience.

Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by HAIDA, we can help you to repair
Your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q: What about the product' services and quality?
A: Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users.
A: Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
