Product Description

Liquid crystal display film layer monitor coating deposition data such as rate, thickness and crystal oscillation frequency

Application of Film thickness monitor:
The control and display of the film thickness monitor are realized by the touch screen, which enables you to obtain complete deposition data, including the rate, thickness and coating time, etc. it is suitable for the measurement of vacuum coating thickness, such as ordinary evaporation, electron beam evaporation, magnetron sputtering, ion plating, etc., especially for the film monitoring of multi evaporation source coating machine and multi chamber coating machine.

Technical features of Film thickness controller:

• This film thickness monitor is suitable for coating thickness measurement of vacuum resistance thermal evaporation, magnetron sputtering, etc.
• Automatically close the baffle when it reaches the set thickness;
• The LCD enables you to continuously obtain complete deposition data, including rate, thickness and crystal oscillation frequency.

Technical parameters of Film thickness controller:

Crystal frequency	6MHz
Display mode	LED
Operating mode	Panel buttons
Thickness display range	0-99μ9999Å
Thickness display resolution	1Å(aluminium)
Rate display range	0-9999.9Å
Rate display resolution	0.1Å/s
Number of coating layers	16
Probe input	4 way (choose one to work)
Tool factor	0.01-99.99
Material storage	52kinds
Communication	RS232
Baffle / source control	2 sets of contacts
Coating circuit times	99
Size	480×250×89mm(2U 19")

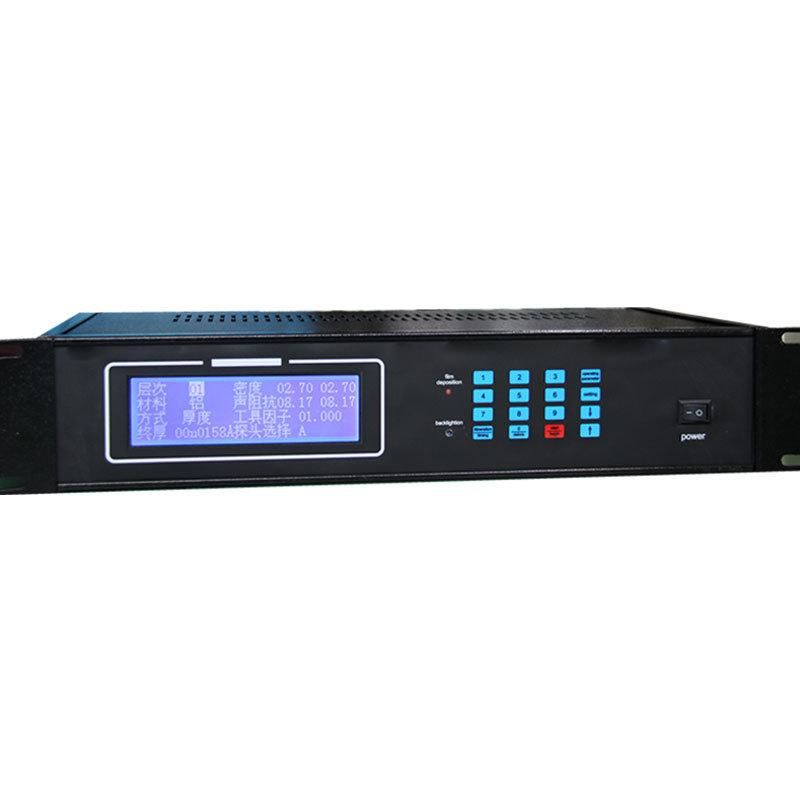

Product pictures of Film thickness monitor:
