New Product! 12GHz/20GHz Tfg368X Series RF Microwave Signal Generator with Low Phase Noise

Shijiazhuang Suin Instruments Co., Ltd.
  • Warranty：18 Months
  • Certificate：Ce RoHS ISO9001
  • OEM/ODM：Yes
  • Weight：4.2 Kgs
  • Frequency Range：10MHz~12GHz,20GHz
  • Amplitude Range：-25dBm~+15dBm

Base Info

  • Model NO.：TFG3681,TFG3682
  • Frequency Resolution：20Hz
  • Amplitude Resolution：0.1dB
  • Pm Break-Make Ratio：60dbc
  • Transport Package：Carton Package
  • Specification：254*103*374 mm
  • Trademark：SUIN
  • Origin：China
  • HS Code：8543209090
  • Production Capacity：30, 000 Sets,Year

Description

FrequencyRange10MHz~12GHz10MHz~20GHzResolution20Hz1mHz(option)Accuracy±1ppm,Frequency≥1.0kHz,18ºC-28ºCAmplitudeSetting Range-25dBm~+15dBmSpecified Range-10dBm~+13dBmResolution0.1dBAccuracy±1.5dBm of setting(output level:+13dBm~-10dBm)Output Impedance50ΩSpectrum PurityHarmonic<-35dBc<-20dBcNon-harmonic<-70dBcPhase Noise-94dBc/Hz@10kHz,at 10 GHz output-94dBc/Hz@10kHz,at 10GHz output
-121dBc/Hz@10kHz,at 10GHz ourput(option)ModulationPM break-make ratio60dBcMake-break time range100nS-10mSGeneral CharacteristicsPowerAC200V~240V, 50(1±10%)Hz,<40VADimension&Weight254*103*374mm,4.2kg

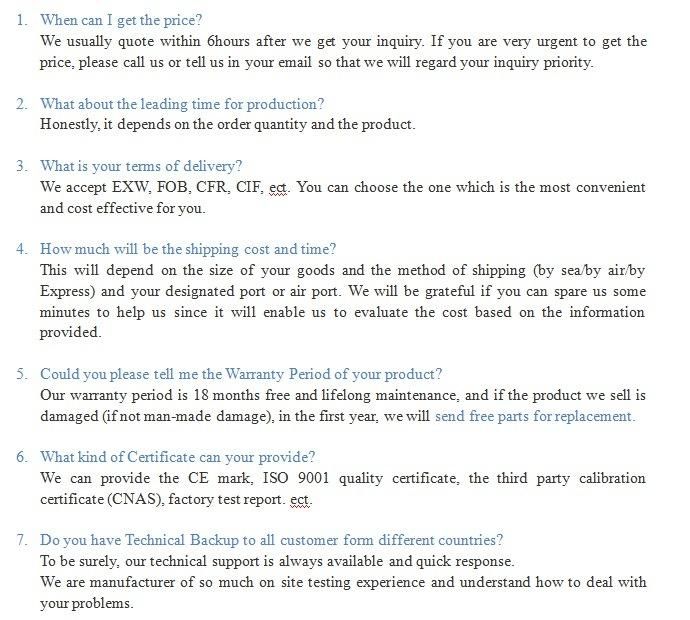

                                                                       F A Q
