• Transport Package：Standard Export Wooden Packaging
• Trademark：CYKY
• Origin：Zhengzhou Henan China
• HS Code：8402111000
• Production Capacity：200 Sets Per Month

Basic Info.

Transport Package Standard Export Wooden Packaging Trademark CYKY Origin Zhengzhou Henan China HS Code 8402111000 Production Capacity 200 Sets Per Month

Product Description

Multi-channel film thickness monitor up to six probes for multi - evaporation source coater

Application of Film thickness monitor:
The control and display of the film thickness monitor are realized by the touch screen, which enables you to obtain complete deposition data, including the rate, thickness and coating time, etc. it is suitable for the measurement of vacuum coating thickness, such as ordinary evaporation, electron beam evaporation, magnetron sputtering, ion plating, etc., especially for the film monitoring of multi evaporation source coating machine and multi chamber coating machine.

Technical features of Film thickness controller:

• Simultaneous operation: up to six probes can be monitored at the same time,each channel is set freely, which can operate independently or jointly.;
• Two sets of relay output, reaching the set thickness to automatically close the baffle / evaporation source;
• Full touch screen operation display, simple and easy to use;
• Provide RS232 / RS485 interface, MODBUS RTU standard protocol, Multi - baud rate optional, and equipped with special control software.

Technical parameters of Film thickness controller:

Crystal frequency	6MHz (Optional 2.5M 3M 5M 9M crystal)
Display mode	5 "color touch screen + digital tube display rate and solid thickness
Operating mode	Touch screen
Thickness display range	0-99μ9999Å
Thickness display resolution	1Å(aluminium)
Rate display range	0-999.9Å
Rate display resolution	0.1Å/s
Number of coating layers	99
Probe input	4/6 way (Can work at the same time)
Tool factor	0.01-99.99
Material storage	257kinds+10 customization
Communication	RS232/RS485 MODBUS RTU
Baffle / source control	2 sets of contacts, reaching the thickness shutoff / evaporation source
Coating display	Rate curve / value
Coating circuit times	99
Size	480×250×89mm(2U 19")

Special features of Film thickness controller:
(1) Set the working state of each circuit arbitrarily, and stop coating manually
(2) It can display the coating layer, material and crystal oscillation frequency percentage;
(3) The monitoring thickness, crystal frequency, material and layer after coating are displayed.

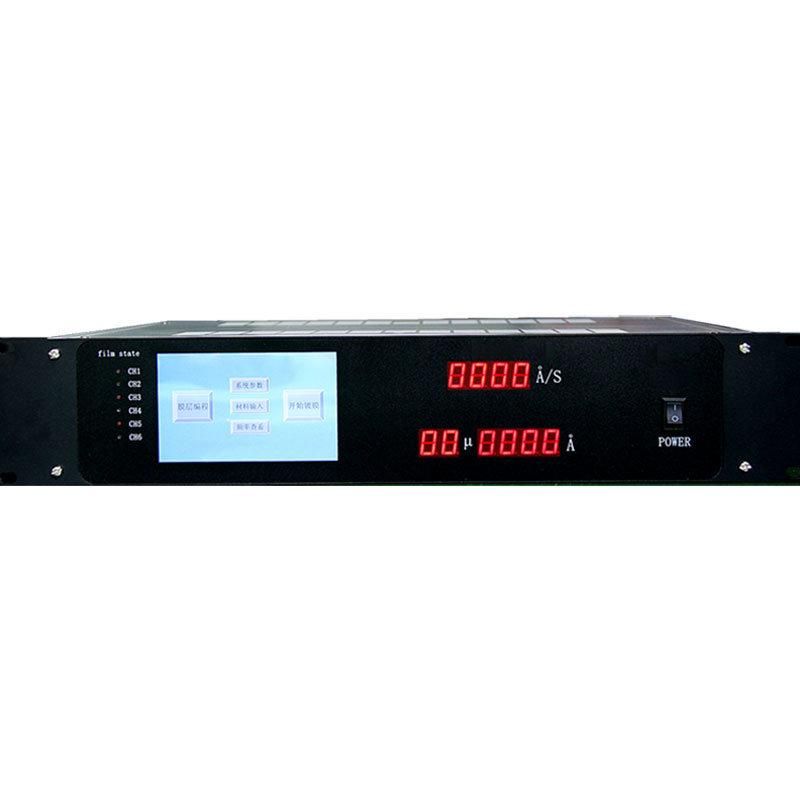

Product pictures of Film thickness monitor:




Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.





Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service
