• Model NO.：TFG3681,TFG3682
• Frequency Resolution：20Hz
• Amplitude Resolution：0.1dB
• Pm Break-Make Ratio：60dbc
• Transport Package：Carton Package
• Specification：254*103*374 mm
• Trademark：SUIN
• Origin：China
• HS Code：8543209090
• Production Capacity：30, 000 Sets,Year

FrequencyRange10MHz~12GHz10MHz~20GHzResolution20Hz1mHz(option)Accuracy±1ppm,Frequency≥1.0kHz,18ºC-28ºCAmplitudeSetting Range-25dBm~+15dBmSpecified Range-10dBm~+13dBmResolution0.1dBAccuracy±1.5dBm of setting(output level:+13dBm~-10dBm)Output Impedance50ΩSpectrum PurityHarmonic<-35dBc<-20dBcNon-harmonic<-70dBcPhase Noise-94dBc/Hz@10kHz,at 10 GHz output-94dBc/Hz@10kHz,at 10GHz output
-121dBc/Hz@10kHz,at 10GHz ourput(option)ModulationPM break-make ratio60dBcMake-break time range100nS-10mSGeneral CharacteristicsPowerAC200V~240V, 50(1±10%)Hz,<40VADimension&Weight254*103*374mm,4.2kg

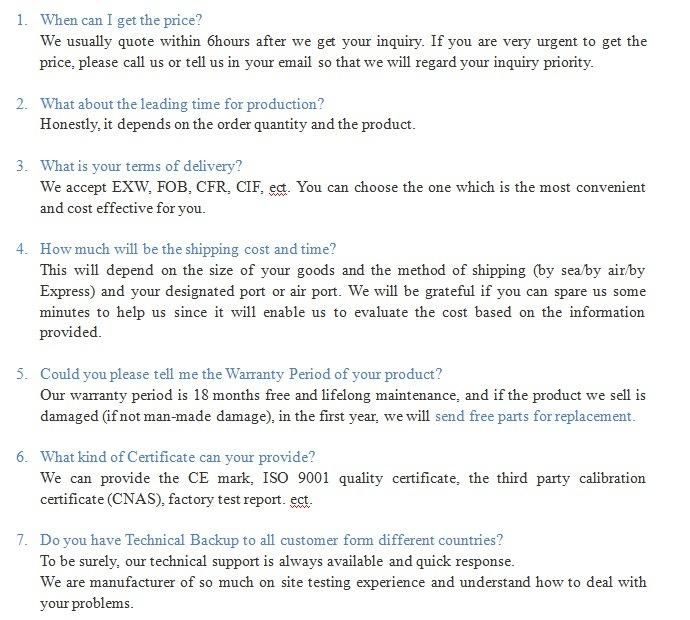

                                                                       F A Q
