Skz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester

SKZ International Co., Ltd.
  • After-sales Service：24 Hours Online Customer Service
  • Warranty：1 Year
  • Display：Digital
  • Control：Computer Control
  • Weight：210kg
  • Power Source：AC220V

Base Info

  • Model NO.：SKZ132
  • Test Data：Mooney Viscosity, Mooney Scorch
  • Temperature Measure：Room Temperature ~ 200 Degree
  • Temperature Rise Time：Less Than 10min
  • The Maximum Test Time 1：Mooney: 10min
  • The Maximum Test Time 2：Scorch: 120min (Modification Time During Testing)
  • Mooney Value Measure Range：0 to 200
  • Standard：ISO289, ISO667, GB,T1232-92 Hg,T3432-1989
  • Mooney Value Resolution：0.1 Mooney Value
  • Power：AC220V +-10% 50Hz
  • Transport Package：Wooden Packing
  • Specification：645mm * 580mm * 1300mm
  • Trademark：SKZ
  • Origin：China

Description

The maximum test timeMooney: 10minScorch: 120min (modification time during testing)Mooney value measure range0 to 200Mooney value resolution0.1 Mooney valueMooney value accuracy± 0.5 Mooney valueCalibrate accuracy100±0.5 Mooney valueRotor speed2 ± 0.02r/minRotor dia.big: 38.1±0.03mm, small: 30.48±0.03mmPowerAC220V ± 10% 50HZDimensions645mm × 580mm × 1300mmWeight210kgSkz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester

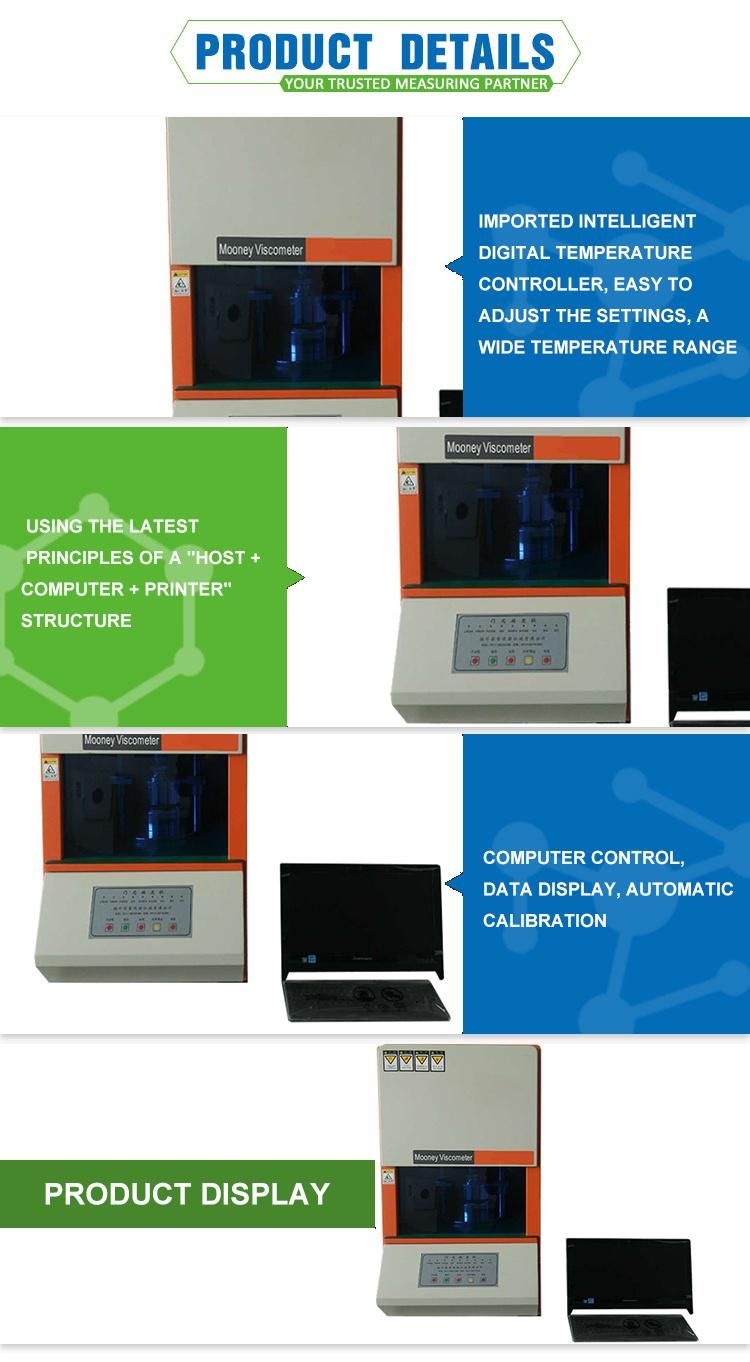

Skz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester
Packaging & ShippingSkz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester

Customer showSkz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch TesterSkz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester

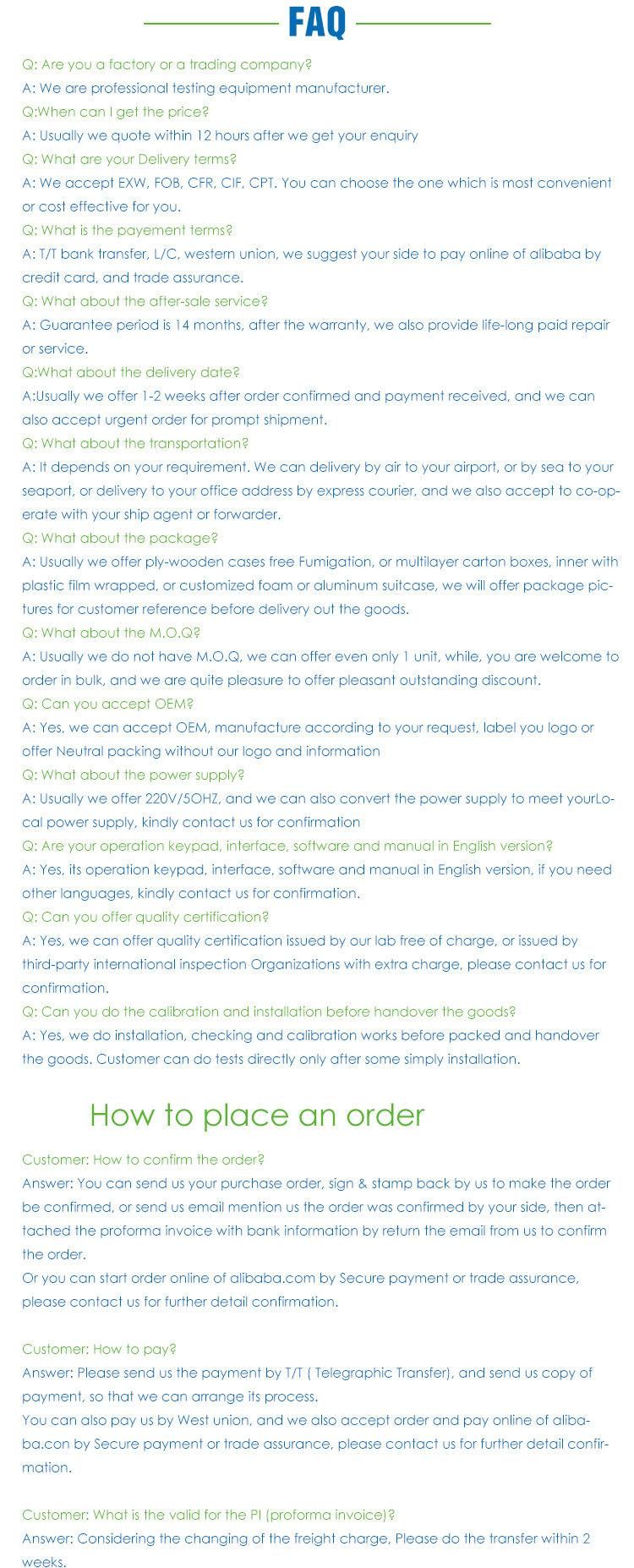

FAQSkz132 High Accuracy Unvulcanized Rubber Mooney Viscometer (MV) Equipment Device Scorch Tester
