Dgbell Lithium Ion Battery Drop Test Machine

GUANGDONG BELL EXPERIMENT EQUIPMENT CO., LTD.
  • After-sales Service：Support
  • Warranty：1 Year
  • Mass Scope of Workpiece：<900kg
  • Type：Drop Testing Machine
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：BE-8108
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Testing Method：Free Fall
  • Test Loading：0~5kg
  • Specimen Max. Dimension：W200 X D200 X H200mm
  • Machine Dimension：W700 X D900 X H1800mm
  • Motor Power：90W
  • Internal Material：SUS 304# Stainless Steel
  • External Material：1.5mm Thickness Cold Plate
  • Falling Method：Pneumatic Drop
  • Lifting Method：Electric
  • Power Supply：220V 50Hz
  • Safety Device：Fully Enclosed Explosion-Proof Device
  • Transport Package：Each Set Protected with Resin Fiber and PP Film, T
  • Specification：Test Space200x200x200(customizable)
  • Trademark：DGBELL
  • Origin：Guangdong China
  • HS Code：9031809090
  • Production Capacity：100set ,Month

Description

ModelBE-8108
Drop Height300~1500mm (Adjustable)
Testing MethodFree fall
Test Loading0~5kg
Specimen Max. DimensionW200 x D200 x H200mm
Machine DimensionW700 X D900 X H1800mm
Motor Power90W
Control ModePLC touch screen (7-inch touch screen) + Remote control
Internal MaterialSUS 304# Stainless steel
External Material1.5mm thickness Cold plate
Falling MethodPneumatic drop
Lifting MethodElectric
Power Supply220V 50Hz
Safety deviceFully enclosed explosion-proof device
Pressure>0.3Mpa
Drop Panel SizeW600 x D700 x H10mm (solid steel), hardwood, cement board (optional)
Observation Window390 X 360mm (20mm thickness tempered explosion-proof glass)
Data OutputTest data can be output by USB flash disk directly .
Safety ProtectionExplosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
OptionsTemperature acquisition system, voltage acquisition system, video monitoring system
Dgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test Machine

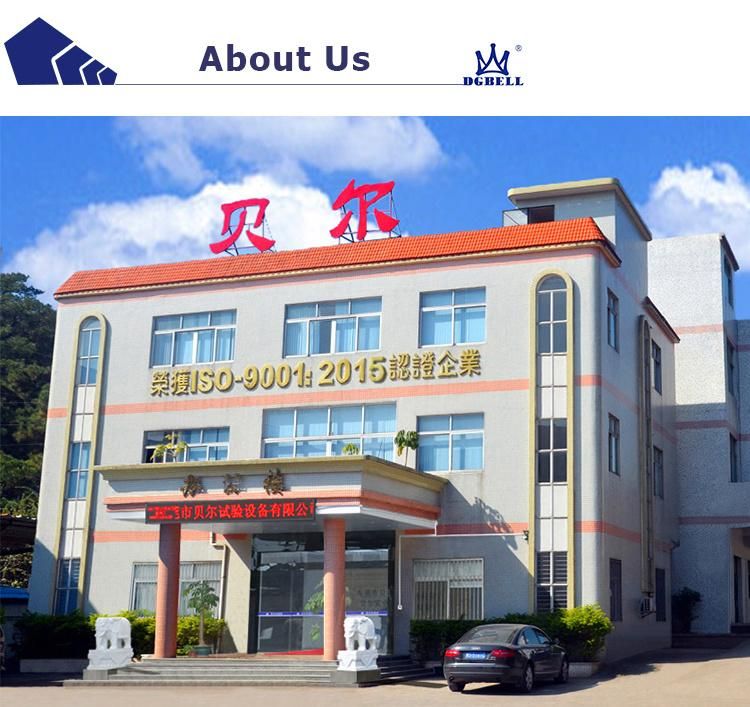

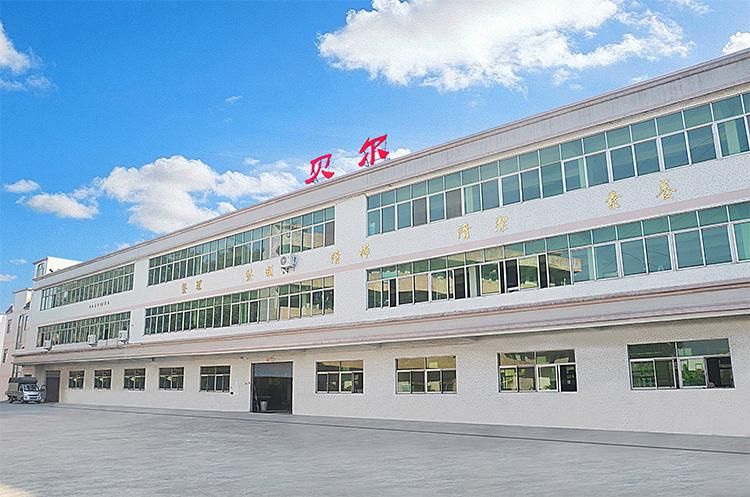

Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

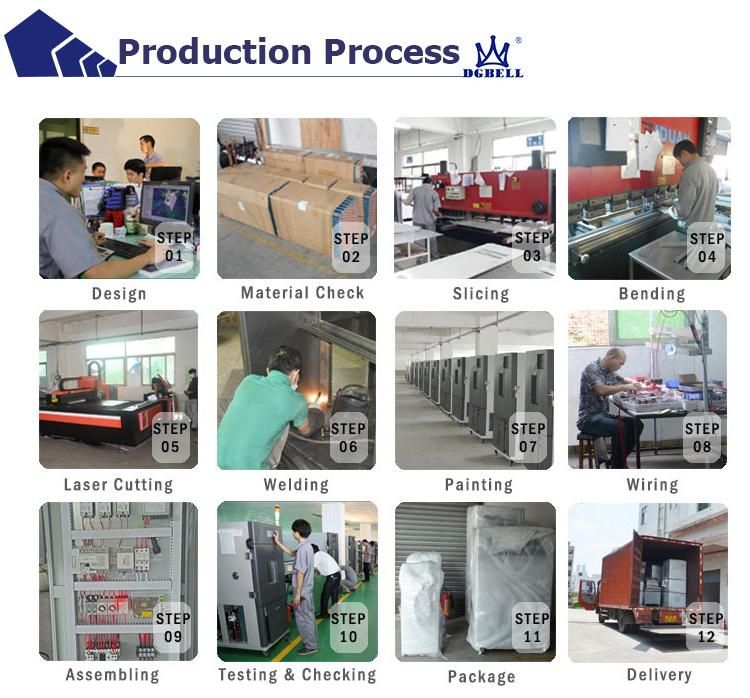

Dgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineDgbell Lithium Ion Battery Drop Test MachineComplete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
Free information:
1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report)
Device Problem Handling:
1.Social media 24 hours online communication;
2.Email contact;
3.Video Conferencing;
