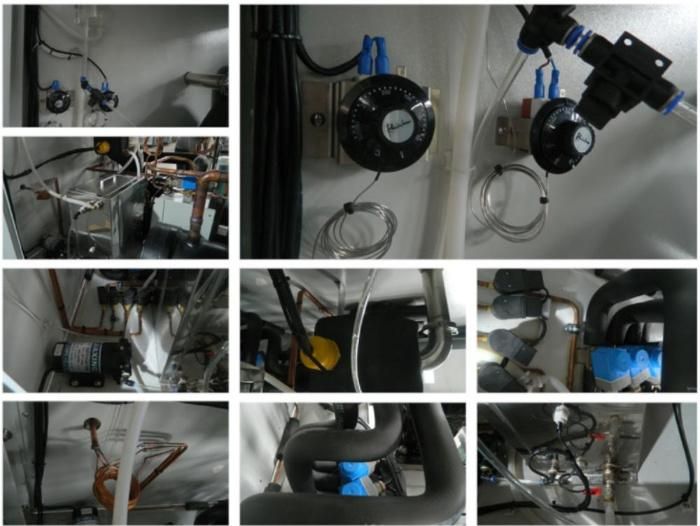

Details&Pictures

A.The body material
1. The box body and inner liner are made of imported PVC high-strength corrosion-resistant plastic board, with smooth and smooth surface, aging resistance and corrosion resistance; Easy to clean, no leakage;

2. The box cover is made of imported PVC transparent plastic plate, which is easy to observe the test condition of the test samples during the test. The box cover and the box body are sealed with water, so as to prevent the leakage of salt spray.

3.The design of large salt water tank, to prevent the lack of salt water and interrupt the test;

4.Heating for tank heating and humidification, fast temperature rise, temperature and humidity distribution uniform;

B.Heating system

1.The test temperature in the box is water jacket heating and humidifying. The heater is made of U-shaped titanium alloy high-speed heating electric heating tube.
2.Fully independent system, does not affect the salt spray test and control circuit;
3.Temperature control output power are calculated by microcomputer, to achieve high precision and high efficiency of electricity benefits, low water level protection (prevent dry burning without water);

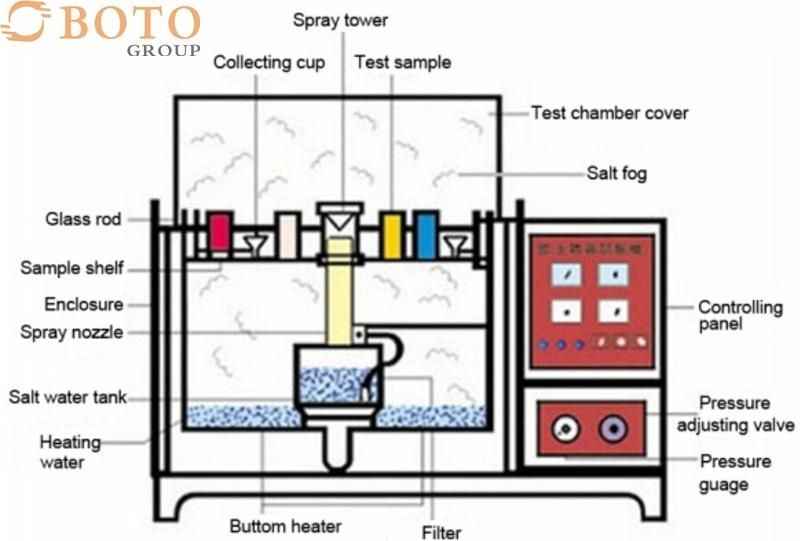

C.Spraying system

1.The spray adopts tower-type sprayer (the height of the spire can be adjusted), and four spray towers are placed in the box. Two salt spray towers and two water spray towers are crossed respectively.
2.Spray gas for two-stage pressure regulation, oil filtration, gas humidification preheating;
3.Atomized brine storage is built-in hidden type and storage capacity is large, brine is equipped with preheating function;
4.Quartz brine filter element is equipped before brine atomization to avoid the plug of impurities in the nozzle and stop the test;
5.All pipes in the test chamber are thickened fluorosilicone rubber pipes, which can be kept without aging and cracking in ten years.
6.Salt water tank with high and low water level display;


D.Control system

7-inch 260,000 color LCD hand touch screen.

1.7-inch TFT true color LED LCD touch screen interface
2.The program capacity can be up to 100 groups, each program can be freely linked to each other. Each program has multiple loop modes
3.24-bit high precision, full range of two decimal display, accurate, without correction
4.Support Chinese/English interface switching, support fixed value, program mode.
5.Support Chinese character input, input program name, and manufacturer information.


FAQ

Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70ºC~+180ºC, 20%~98%RH.
We also can do Ultra low temperature to -190ºC .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3ºC/min for heating, 2ºC/min for cooling.
3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min linear or non-linear speed is available for us.

Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
