Skz1011 Kinetic Coefficients of Friction Cof Laboratory Instrument Test Meter Equipment
SKZ International Co., Ltd.- After-sales Service:24 Hours Online Customer Service
- Warranty:1 Year
- Type:Friction Coefficient Tester
- Display:Digital
- Control:Computer Control
- Weight:30kg
Base Info
- Model NO.:SKZ1011
- Power Source:AC220V
- Dimension of Slider:63*63 (mm)
- Weight of Slider:200+-2g (500g)
- Sample Size:80*200 (mm)
- Testing Accuracy:+-0.5%
- Speed of Slider:100 mm,Min
- Range:0-5n
- Stroke:70mm, 150mm
- Dimension:400*300*180 (mm)
- Power:220V, 50Hz
- Transport Package:Wooden Packing
- Specification:400*300*180 (mm)
- Trademark:SKZ
- Origin:China
- HS Code:90248000
- Production Capacity:2000PCS,Year
Description
Basic Info.
Model NO. SKZ1011 Power Source AC220V Dimension of Slider 63*63 (mm) Weight of Slider 200+-2g (500g) Sample Size 80*200 (mm) Testing Accuracy +-0.5% Speed of Slider 100 mm/Min Range 0-5n Stroke 70mm, 150mm Dimension 400*300*180 (mm) Power 220V, 50Hz Transport Package Wooden Packing Specification 400*300*180 (mm) Trademark SKZ Origin China HS Code 90248000 Production Capacity 2000PCS/YearProduct Description

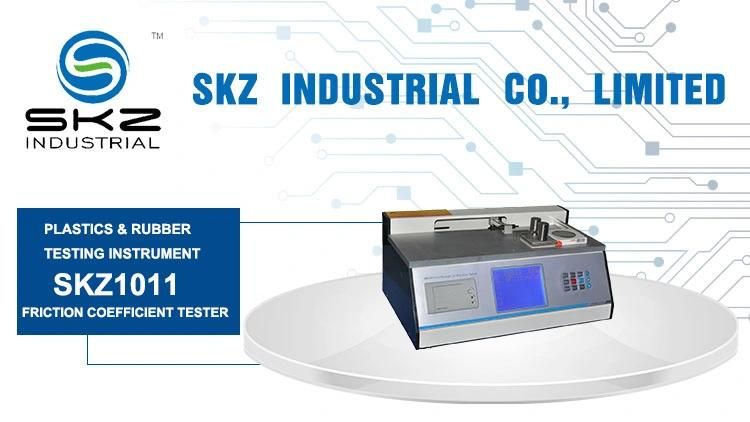

SKZ1011 kinetic coefficients of friction COF laboratory instrument test meter equipment
we also have Slide Angle Friction Coefficient Tester, if you are interested in it, please contact our 24 hours customer service
Used to measure dynamic, static friction coefficient of plastic film in sliding, so that to control the opening of packaging bags and speed of packaging machine.

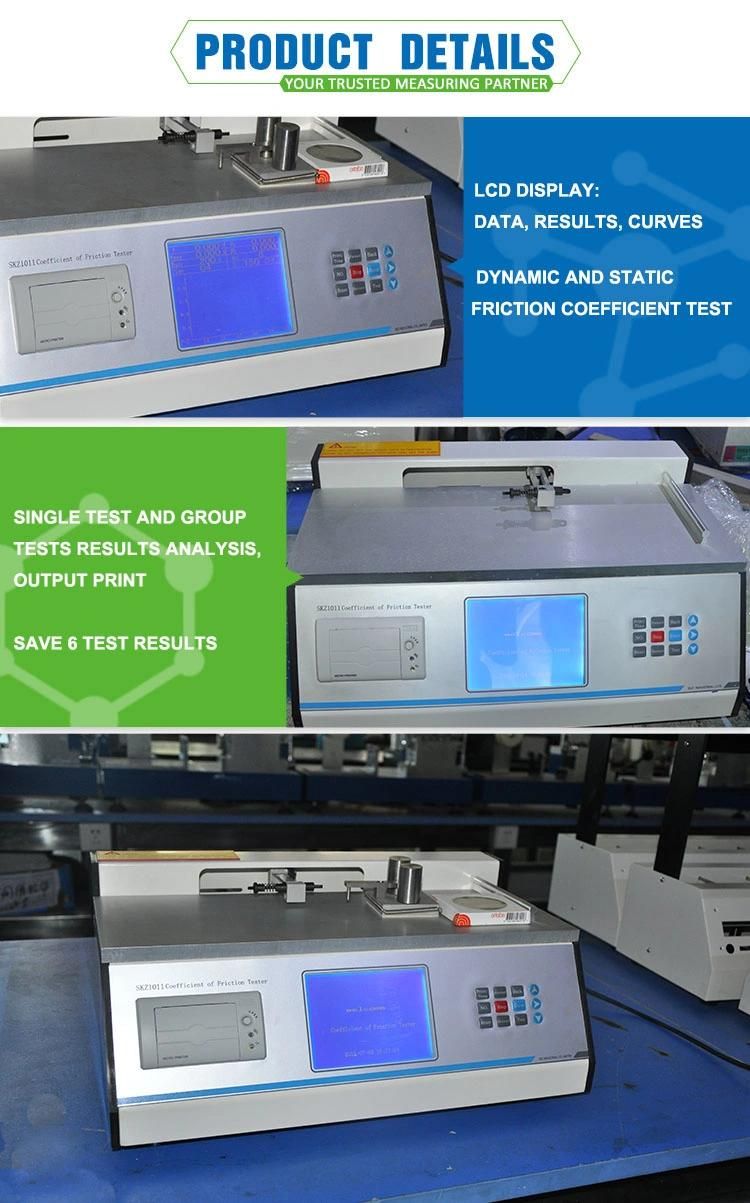

Features:
1.LCD display: data, results, curves
2. dynamic and static friction coefficient test
3. Single test and group tests results analysis, output print
4.Save 6 test results
Standards:
ISO8295, ASTMD1894, TAPPIT816
Technical parameters:
Dimension of slider | 63×63 (mm) |
Weight of slider | 200±2g (500g) |
Sample size | 80×200 (mm) |
Testing accuracy | ±0.5% |
Speed of slider | 100 mm/min |
Range | 0-5N |
Stroke | 70mm, 150mm |
Power | 220V, 50HZ |
Dimension | 400×300×180 (mm) |
Weight | 30kg |
Packaging & Shipping
Customer show

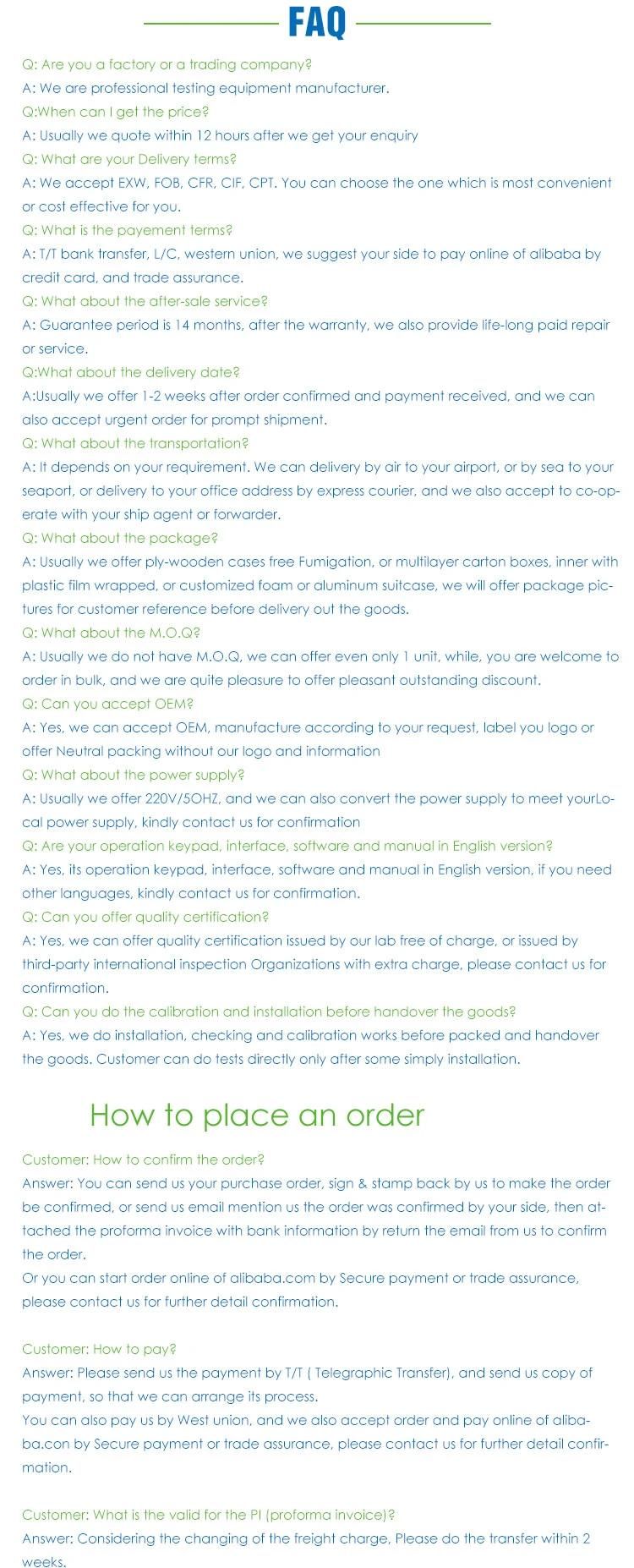

FAQ
