• Model NO.：BTH-50
• Humidity Range：20%Rh-98%Rh
• Temperature Fluctuation：±0.5ºC
• Humidity Fluctuation：±2%Rh
• Heating Rate：Approx 3ºC,Mins,Average Non-Linear ,No Load
• Cooling Rate：Approx 1ºC, Mins,Average Non-Linear ,No Load
• Temperature Overshoot：≤±2ºC
• Internal Material：1.2mm Thick SUS#304 High &Low Temperature Resistan
• Transport Package：Each Set Protected with Resin Fiber and PP Film, T
• Specification：Test Space 400x450x280(customizable)
• Trademark：DGBELL
• Origin：Guangdong China
• HS Code：8514109000
• Production Capacity：100set ,Month

Basic Info.

Model NO. BTH-50 Humidity Range 20%Rh-98%Rh Temperature Fluctuation ±0.5ºC Humidity Fluctuation ±2%Rh Heating Rate Approx 3ºC/Mins,Average Non-Linear ,No Load Cooling Rate Approx 1ºC/ Mins,Average Non-Linear ,No Load Temperature Overshoot ≤±2ºC Internal Material 1.2mm Thick SUS#304 High &Low Temperature Resistan Transport Package Each Set Protected with Resin Fiber and PP Film, T Specification Test Space 400x450x280(customizable) Trademark DGBELL Origin Guangdong China HS Code 8514109000 Production Capacity 100set /Month

Product Description

DGBELL Labratory Mini Equipment Climate Chamber Environmental Temperature And Humidity Testing Machine

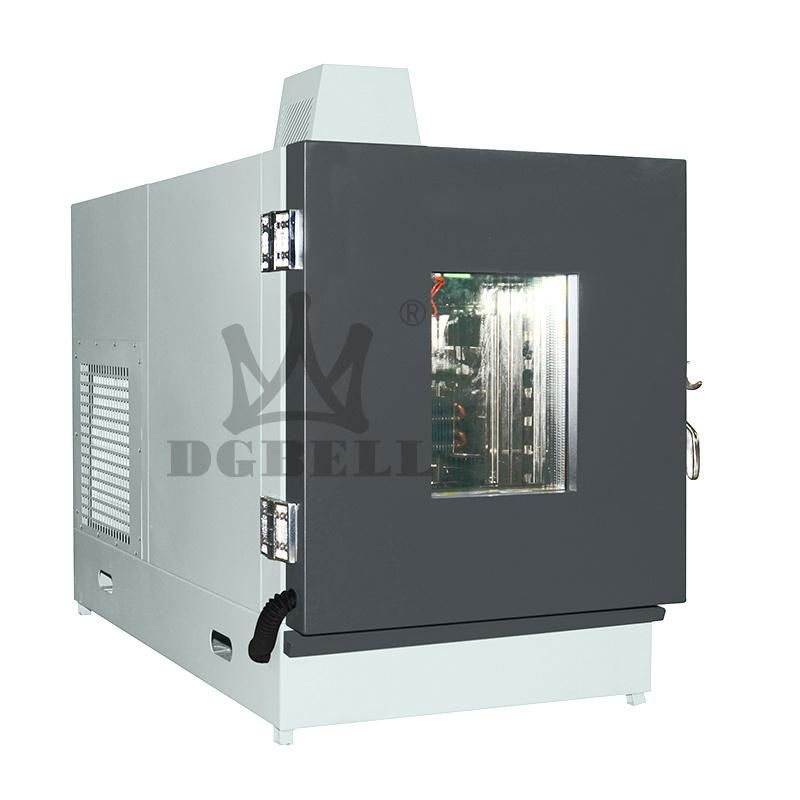

Product show

Application

Benchtop Temperature and Humidity Test Chamber provides a compact footprint and multi-function test performance. It is very popular for labs and product manufacturers to test the various small electronic products, electronic components, and materials with simulating temperature and humidity environment conditions.



Standard Compliance

• IEC 68-2-1 Test A: Low temperature test method.
• IEC 68-2-2 Test B: High temperature test method.
• IEC 68-2-3 Test CA: Constant damp heat test method.
• IEC 68-2-30 Test CB: Alternating damp heat test method.
• IEC 68-2-14 Test NB: Temperature cycling test method.
• MIL-STD-810D High temperature test method.
• MIL-STD-810D Low temperature test method.
• MIL-STD-810D Damp heat test method.

Product specification:


Model	Internal Dimension (W×H×D)(mm)	External Dimension (W×H×D)(mm)
BTH-50	400×450×280	600×850×1250
BTH-72	400×450×400	600×850×1400



Performance parameters:

Temp. Range	A:-0~150ºC   B:-20~150ºC   C:-40~150ºC   D:-60~150ºC
Humidity Range	20-98%RH
Temp. Fluctuation	≤±0.5ºC
Temp. Deviation	≤±2ºC
Temp. Uniformity	≤±2ºC
Humidity Fluctuation	≤±2.5%RH
Humidity Deviation	≤+2,-3%RH (≥75%RH);≤±5%RH (≤75%RH)



Features of Benchtop Temperature And Humidity Environmental Test chamber

1. The benchtop temperature and humidity environmental test chamber has excellent functions, beautiful appearance, and good reliability, and is the primary choice for laboratory environment experimental equipment.
2. The inner tank is made of stainless steel, and the outer shell is made of imported steel plate. The sealing strip in the chamber is made of imported high temperature and low temperature resistant silicone rubber, which has excellent sealing and insulation function.
3. The benchtop temperature and humidity environmental test chamber uses air circulation to maintain the uniformity of the temperature in the operating room. During the experiment, the experimental samples will not be directly radiated by the heating and cooling elements in the test chamber.
4. According to your environmental requirements, the characteristics are suitable for your environmental test chamber.

Maintenance of Benchtop Temperature And Humidity Environmental Test Chamber

1. We must ensure that the small environmental test chamber has a good environment for use. Long-term use in harsh environments will affect the performance of the test chamber, and serious cases may also cause frequent equipment failures.
2. In order to ensure the safety of the operator and the equipment, the operation and maintenance of the test chamber must be carried out by professional personnel.
3. Even if there is not much dust in the environment in which the test chamber is used, some particles may appear on the circulating fan blades and the condenser under long-term use. In severe cases, the accuracy of the results may be affected, so the dust is regularly removed.

The maintenance of the benchtop temperature and humidity environmental test chamber is very important. Before using it for the test, you must fully understand the requirements for the maintenance of the test chamber in the manual to avoid the accumulation of years and the hidden dangers in the test chamber.

The desktop environmental test chambers are only suitable for testing small products due to their size. Slightly larger products cannot be tested. At this time, other sizes of the environmental test chambers, such as walk-in environmental test chambers are needed.





Established in 2005, Guangdong Bell Experiment Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Constant Temperature & Humidity Test Chamber,High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, High temperature aging tester, sand and dust testing machine,tension tester, high and low temperature testing machine , servo computer battery crush tester, mechanical vibration testerBattery washing tester ,battery burning tester and other quality testing instruments. Thanks to several decades of R&D efforts,the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.

15+ years experience in test chambers manufacturing, High performance for your projects.

With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, Guangdong Bell Experiment Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards.

Complete QC inspection process,Guarantee high quality of each machine.

1.IQC Incoming Quslity Control2.IPQC InPut Process Quality Control
3.FQC Final Quality Control
4.OQC Outgong Quality Control

Our service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free software upgrades
