• Model NO.：BTO-100
• Power Frequency(Hz)：50Hz
• Overall External Size：750*880*850
• Power：2.5kw
• Weight：250kg
• Transport Package：Wooden Case
• Trademark：BOTO
• Origin：China
• HS Code：85141090
• Production Capacity：60000ets,Month

Basic Info.

Model NO. BTO-100 Power Frequency(Hz) 50Hz Overall External Size 750*880*850 Power 2.5kw Weight 250kg Transport Package Wooden Case Trademark BOTO Origin China HS Code 85141090 Production Capacity 60000ets/Month

Product Description

Main uses:
     Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.


Features
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type K thermocouple.
• CE compliant

Safety
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Characteristic
11) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance.
2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1ºC). the temperature range is wide, and high uniformity of furnace temperature.

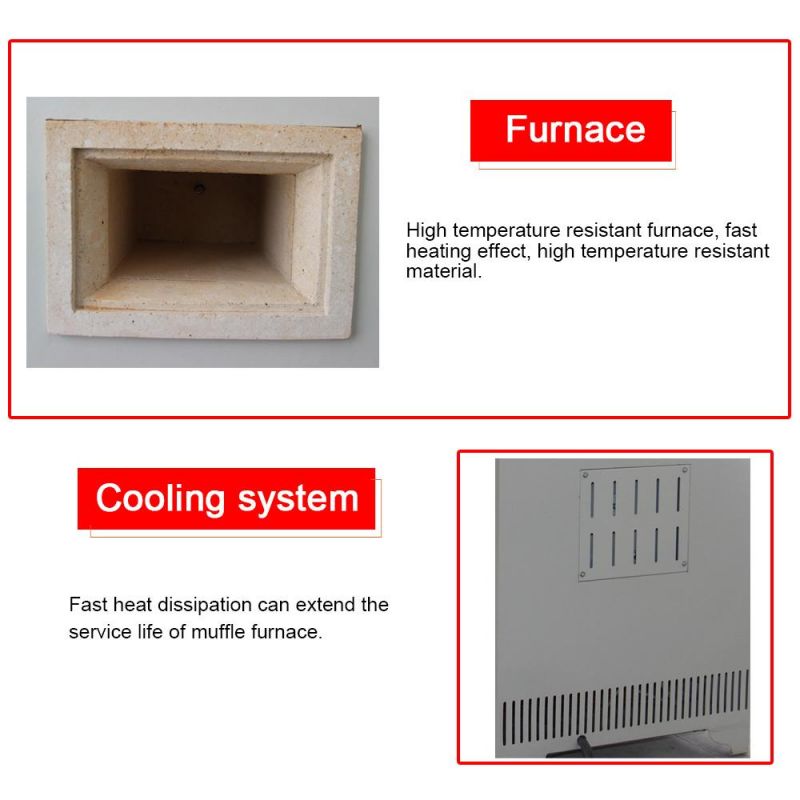

3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability.
4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious.
5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape.
6) The stove top can install vent, furnace and control system integration design, compact and beautiful.

Product parameter:

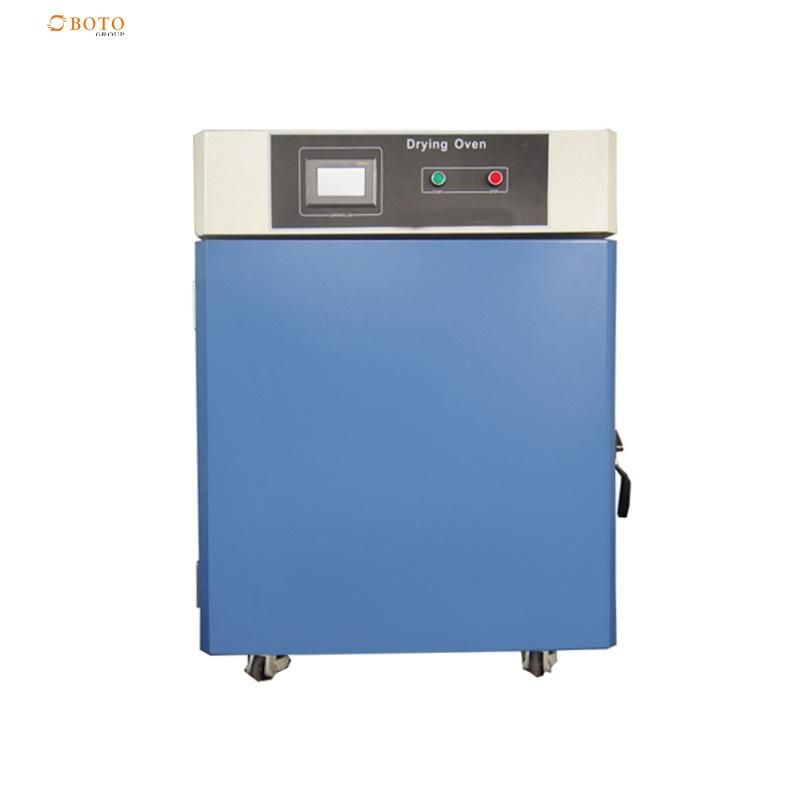

Product Name	500 Degree Standard Custom Industry Lab High Temperature Heating Drying Oven
Model	BTO-100
Internal dimensions(mm)	400*500*500  D*W*H
Overall dimensions(mm)	750*880*850 D*W*H
Temperature range	Ambient ~+400ºC; ( Ambient~+250 ºC; Ambient~+900ºC)
Temperature fluctuation	± 1°C
Temperature Deviation	± 2.0 °C
Heating rate	About 6°C/min

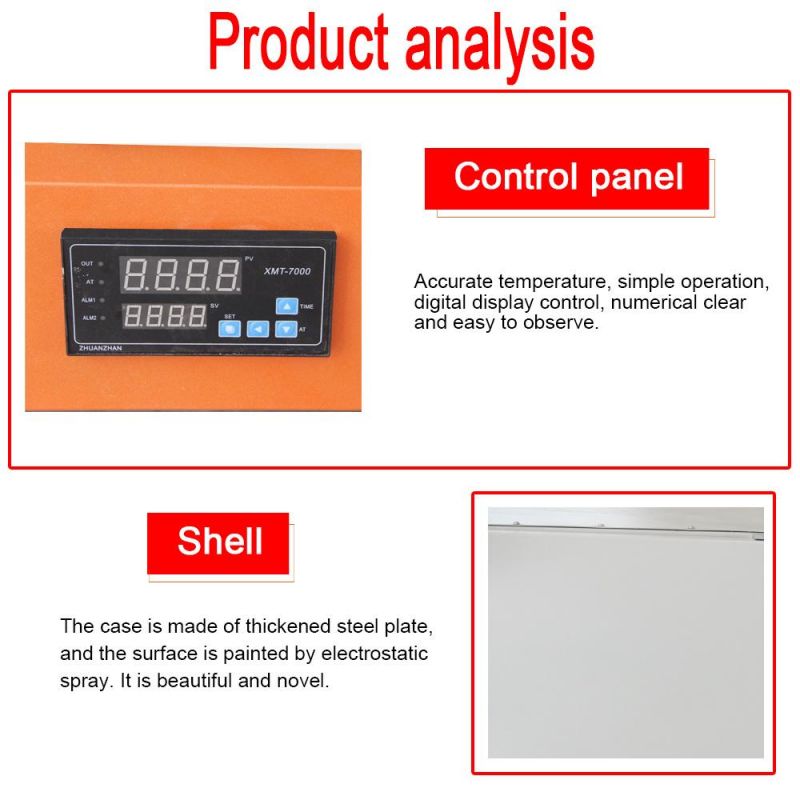

Controller	Programmable color display touch screen controller, PC Link with software, R-232 interface
Temperature sensor	PTR Platinum Resistance PT100
Heating system	Independent Nichrome electronic heating element
Exterior material	Steel plate with protective coating
Interior material	SUS304 stainless steel
Timing function	0.1~999.9(S.M,H) settable
Power Supply	AC220V 50HZ

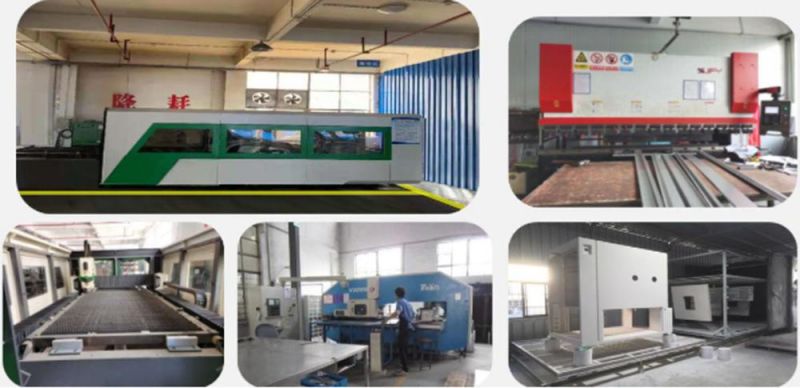

Work shop:
