• Model NO.：HJ-69
• Weight：0-100Kg
• Power Source：AC220V
• Control Method：Touch Screen
• Test Speed：50-300rpm Adjustable
• Testing Frequency：99999999 Times
• Motor：Stepping Motor
• Height Adjustment：Manually Directly Adjustable
• Machine Size：800*400*780mm
• Test Station：3PCS
• Transport Package：Fumigation-Free Standard Export Wooden Box
• Trademark：Hongjin
• Origin：China
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. HJ-69 Weight 0-100Kg Power Source AC220V Control Method Touch Screen Test Speed 50-300rpm Adjustable Testing Frequency 99999999 Times Motor Stepping Motor Height Adjustment Manually Directly Adjustable Machine Size 800*400*780mm Test Station 3PCS Transport Package Fumigation-Free Standard Export Wooden Box Trademark Hongjin Origin China Production Capacity 1000 Sets/ Month

Product Description

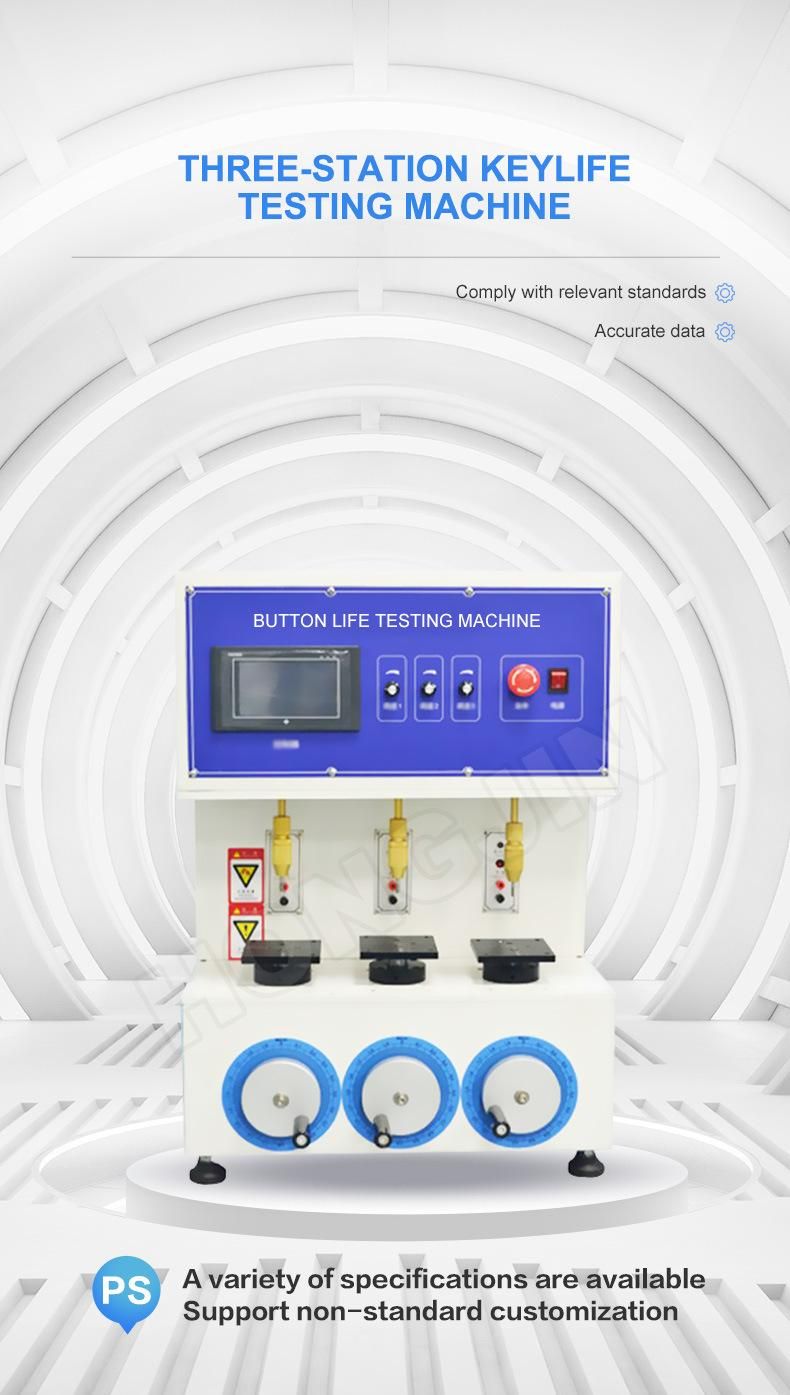

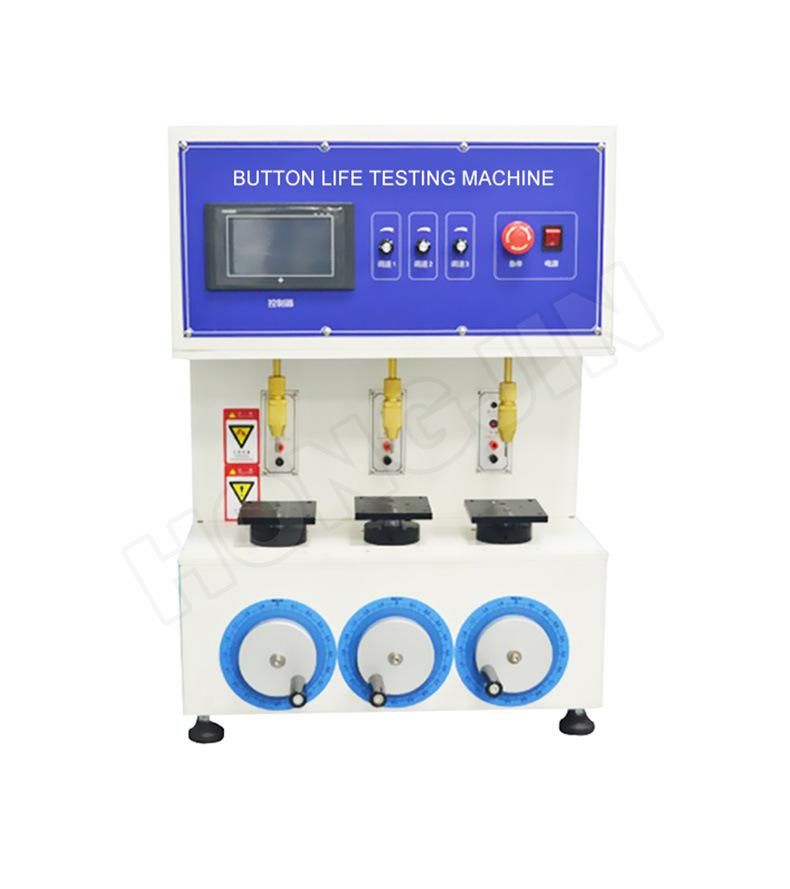

This machine is suitable for a variety of switch buttons, remote controls, membrane buttons or small finished products, as a switch or button life test; it has adjustable speed, set times, front/left/right/high and low adjustable, and the pressing weight can be adjusted freely according to needs; Multiple stations are used for testing, the data is kept after the number of times is reached (each station is independently controlled), and it has a conduction test alarm function. It can do fatigue life test for industrial control buttons, electrical/equipment switches, computers, mobile phones, calculators, remote control membrane keys, and notepad keyboards.

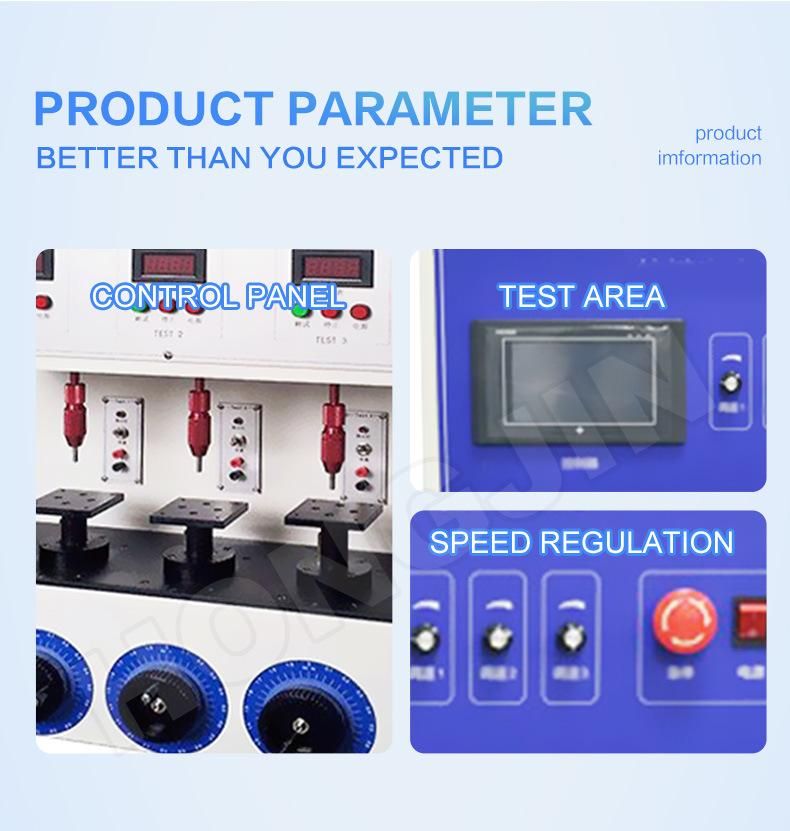

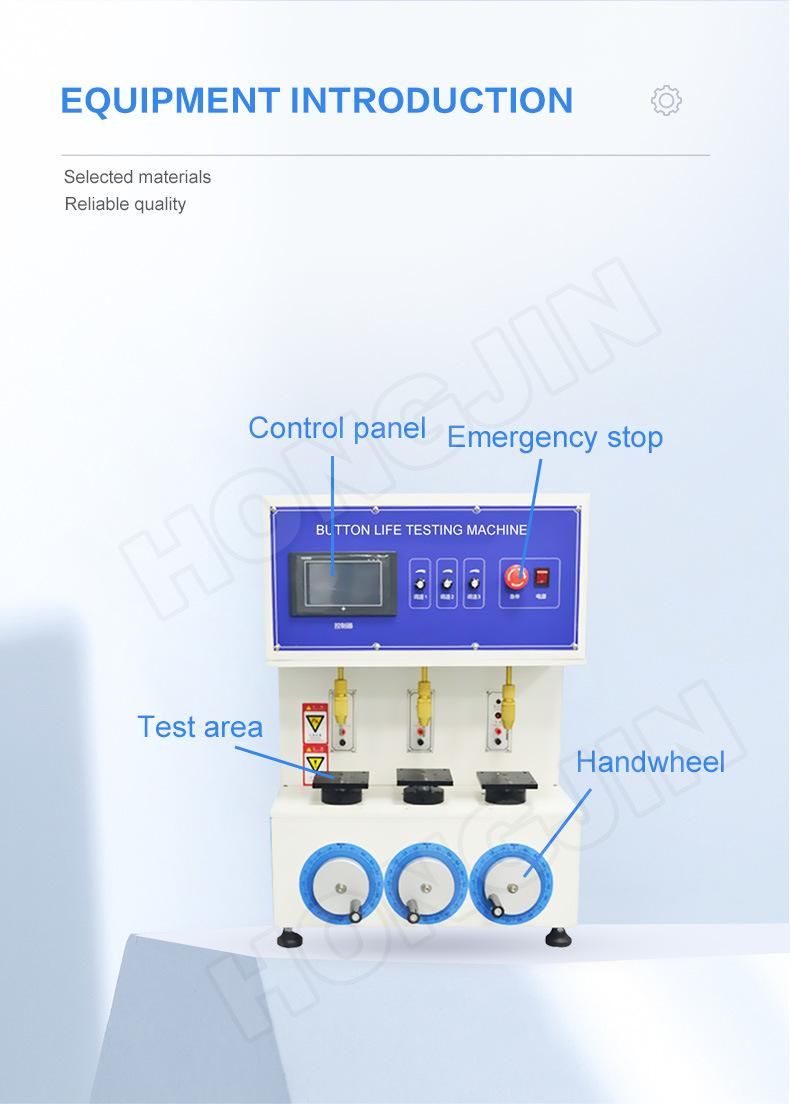

Adopting mechanical reciprocating design, equipped with motor drive, the upper and lower compression mechanism adopts linear bearing motion, positioning test is accurate, and running smoothly; Adopting touch screen control, large count up to 9,999,999 times; Adopting touch screen control, you can directly set the test speed; three The group works individually and the operation is simple.

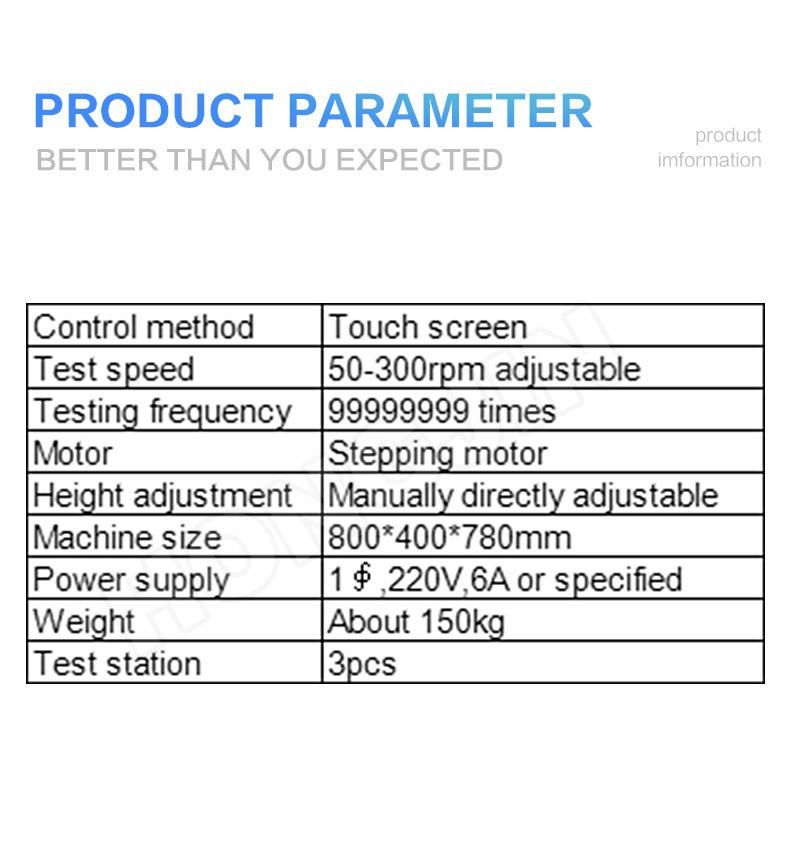

Control method	Touch screen
Test speed	50-300rpm adjustable
Testing frequency	99999999 times
Motor	Stepping motor
Height adjustment	Manually directly adjustable
Machine size	800*400*780mm
Power supply	1∮,220V,6A or specified
Weight	About 150kg
Test station	3pcs
