Asphalt Kinematic Viscometer

Shanghai Civil & Road Instrument Co., Ltd.
  • After-sales Service：24 Hours Online Support
  • Warranty：1 Year
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Asphalt Test Apparatus
  • Maxcapacity：No

Base Info

  • Model NO.：STYDN-3
  • Accuracy Grade：1
  • Load Way：No
  • Loading Method：No
  • Display：Digital
  • Control：Digital Display
  • Weight：40kg
  • Power Source：AC220V
  • Oil Cylinder Position：No
  • Product Name：Stydn-3 Asphalt Kinematic Viscometer
  • Voltage：220V
  • Relative Humidity：10-85%
  • Capilary Viscosity Tester：One Group Includes 13 Pieces
  • Their Internal Diameters Are：0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0
  • Temperature Control：Room Temperature -135c
  • Temperature Control Accuracy：0.01c
  • Viscosity Determination Range：6-100000mm2,S
  • Timing Range：0.0-999.9s
  • Power of The Heater：1000W
  • Transport Package：Wooden Case
  • Specification：0.3CBM
  • Trademark：SHTG
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：100PCS,Month

Description

Basic Info.

Model NO. STYDN-3 Accuracy Grade 1 Load Way No Loading Method No Display Digital Control Digital Display Weight 40kg Power Source AC220V Oil Cylinder Position No Product Name Stydn-3 Asphalt Kinematic Viscometer Voltage 220V Relative Humidity 10-85% Capilary Viscosity Tester One Group Includes 13 Pieces Their Internal Diameters Are 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 Temperature Control Room Temperature -135c Temperature Control Accuracy 0.01c Viscosity Determination Range 6-100000mm2/S Timing Range 0.0-999.9s Power of The Heater 1000W Transport Package Wooden Case Specification 0.3CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

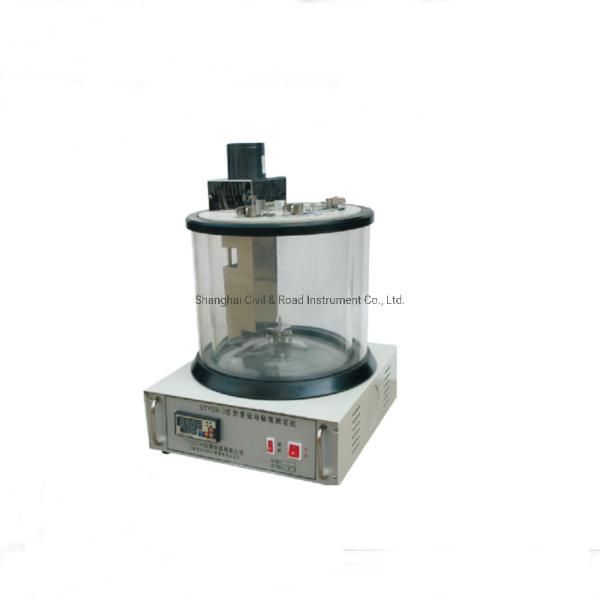

STYDN-3 Asphalt Kinematic Viscometer


Application: Used  to test Kinematic viscosity of bitumen or petroleum .Measurement kinematic viscosity of materials whose viscosity range between 6-100000mm2/s by glass capillary viscometer at temperature 135ºC.
Parameter:

Voltage220V 50Hz
Relative humidity10-85%
Capilary viscosity testerone group includes 13 pieces, their internal diameters are: 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5mm, 5.0, 6.0(BMN-2 type);
Temperature controlroom temperature -135ºC
Temperature control accuracy±0.01ºC
Viscosity determination range6-100000mm2/s
Timing range0.0-999.9S
Power of the heater1000W
Asphalt Kinematic Viscometer
